Feb-06 / VM1700-1900 Gate Valve Grinding & Lapping Machine Brochure Gate Valve Grinding & Lapping Machine Brochure
Page 3 of 7

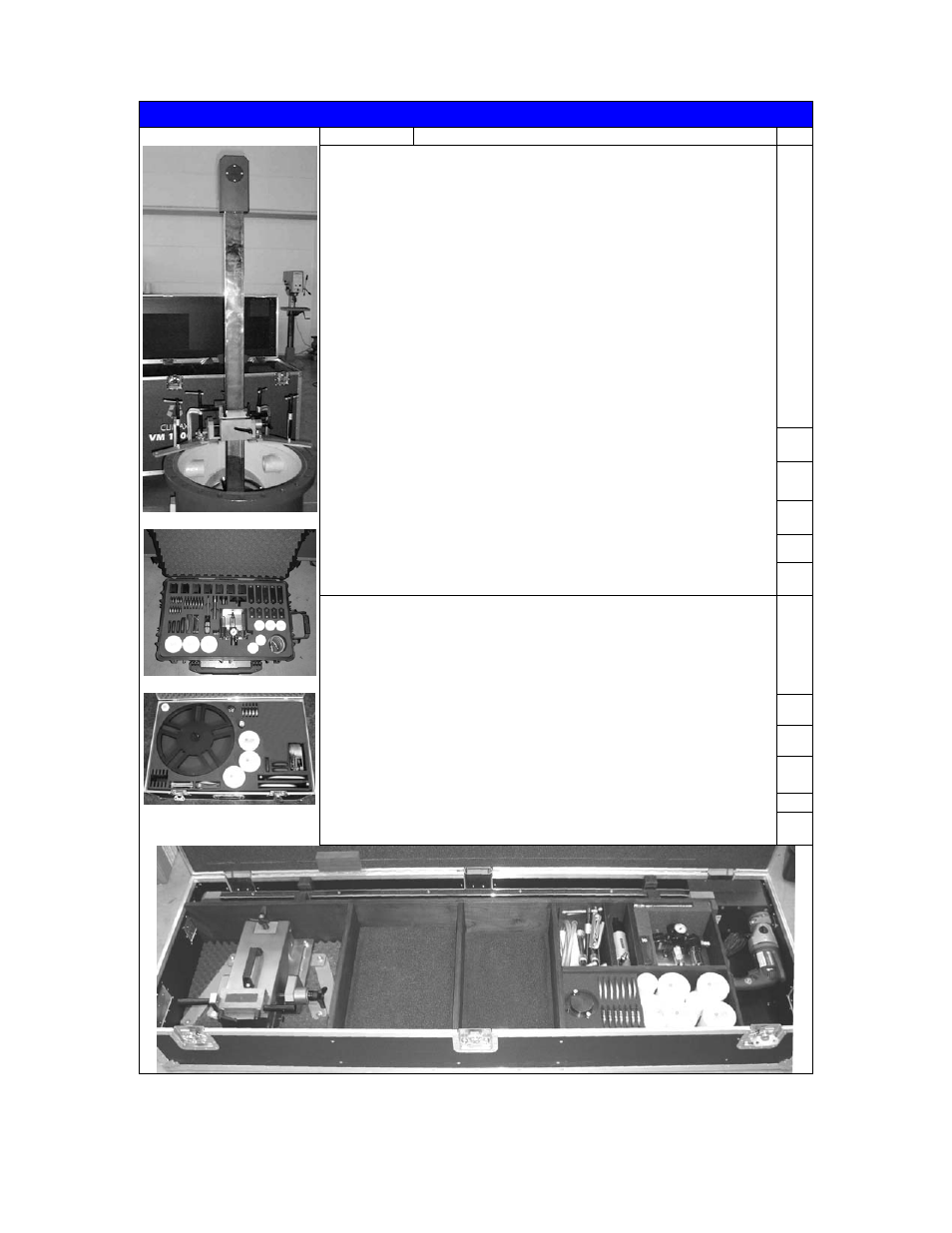

Model VM1700 (Range 8”-28” (200 mm-700 mm)Diameter)
P/N Description
Gate Valve Grinder VM1700S
Nominal working dia 8“ to 28“ (200 mm to 700 mm)
Submerging depth 40“(1000 mm).
Included Components:
•
3 sets (5 arms/set) of planet arms 2.4” (60 mm), 4.5”
(115 mm), 6.3” (160 mm) in length.
•
Set of 3 planet wheels 8.7” (220 mm), 15.0” (380 mm),
21.3” (540 mm) in diameter.
• 2 sets (5 discs/set) of grinding discs 2.0” (50 mm) &
3.2” (80 mm) in diameter.
•
1 set of clamping equipment for mounting the machine
on valves with and without top flange.
•
Start up set of abrasives grain 100 and 500.
•
1 set (5) of CBN grinding disks 2.0”(50 mm) diameter
• 1
set of tooling.
•
Carrying cases with foam inlet for the machine and the
accessories.
470-00S-S12 VM1700S with electric motor 230 V / 50 Hz
470-00S-S13 VM1700S with pneumatic motor
470-00S-S14
VM1700S with electric motor 230V / 50 Hz and
pneumatic motor
470-00S-S15 VM1700S with electric motor 115 V / 60 Hz
470-00S-S16 VM1700S with electric motor 115V / 60 Hz and pneu-
matic motor
Gate Valve Grinding and Lapping machine VM1700
Machine like VM1700S but with additional lapping
equipment:
•
2 sets (5 discs/set) of lapping disks 2.0”(50 mm) &
3.2”(80 mm) in diameter.
•
Lapping paste 10 and 30 µm.
470-00S-S02 VM1700 with electric motor 230 V / 50 Hz
470-00S-S03 VM1700 with pneumatic motor
470-00S-S04
VM1700 with electric motor 230V / 50 Hz and pneumatic
motor
470-00S-S05 VM1700 with electric motor 115 V / 60 Hz
470-00S-S06 VM1700 with electric motor 115V / 60 Hz and pneumatic
motor
Pneumatically driven machines also require the accessory pneumatic motor maintenance kit
