V M 9 0 0 0 T o o l C o n f i g u r a t i o n
For help contact: Climax Portable Machine Tools, P.O. Box 1210, Newberg, OR 97132 USA
|
Website: www.cpmt.com
Worldwide Phone: 503.538.2185
|
USA /Canada Toll-Free: 800.333.8311
|
Fax: 503.538.7600
|
Email: [email protected]
page
2

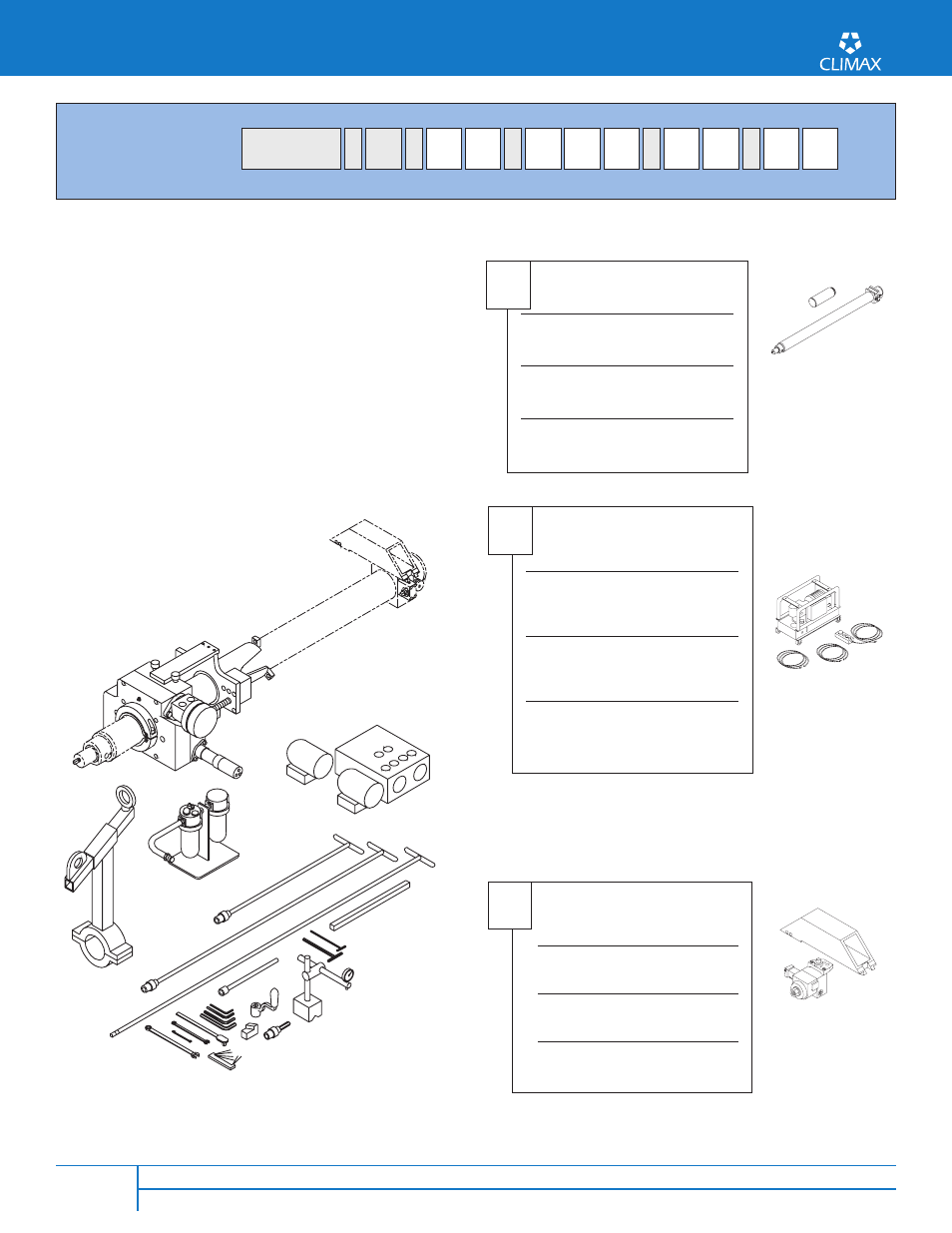

Configure your VM9000 Valve Repair System
in four easy steps.
1 Select a Bar Length and Hydraulic Power Option.
2 Select a Turning Option.
3 Select a Chuck Option.
4 Select a Chuck Jaw Option.
To generate the correct part number for the valve machine you require,
simply select the option you need in each step, then write the number
of that option in the corresponding box at the top of this page.
Each VM9000 comes with a Base Configuration,
which includes:
• Rotational drive/axial feed unit
• Pneumatic and hydraulic motors
• Pneumatic conditioning unit
• Lifting assembly
• Lighting assembly
• Tool kit
• Metal shipping container
Step 1:
Select a Bar Length and Hydraulic Power Unit Option
Step 2:
Select a Turning Option
(Turning arm, grinding attachment and shaper head)
A
B
C
D
E
H
I
F
G
VM9000
1
.
.
.
.
.
Your part number is:
VM9000 Base Configuration
Turning Bar Assembly
Turning Arm
Hydraulic Power Unit
(To generate your part number, write the number of each option you require in the corresponding box.)
Write the number of the Turning
Bar Assembly you need in box “A “
Number 1: 1473mm (58") turning bar
assembly
Number 2: 1524mm (60") turning bar
assembly
Number 3: 1676mm (66") turning bar
assembly
Write the number of the Hydraulic
Power Unit (HPU) you need in box
“B.”
Number 1: HPU, 5hp (6GPM), 230V,
30m (100ft) hydraulic hoses, and
pendant cable
Number 2: HPU, 5hp (6GPM), 380V,
30m (100ft) hydraulic hoses, and
pendant cable
Number 3: HPU, 5hp (6GPM), 460V,
30m (100ft) hydraulic hoses, and
pendant cable
Write the number of the Turning
Arm you need in box
“C.” (Includes
tool head)
Number 1: Small bore turning arm,
356mm–483mm (14"–19") dia.
Number 2: Standard turning arm,
406mm–600mm (16"–24") dia.
Number 3: Extended turning arm,
508mm–762mm (20"–30") dia.
A
B
C
