Note
If some of the indicate parts are missing from your appliance, these parts belong to a different model.

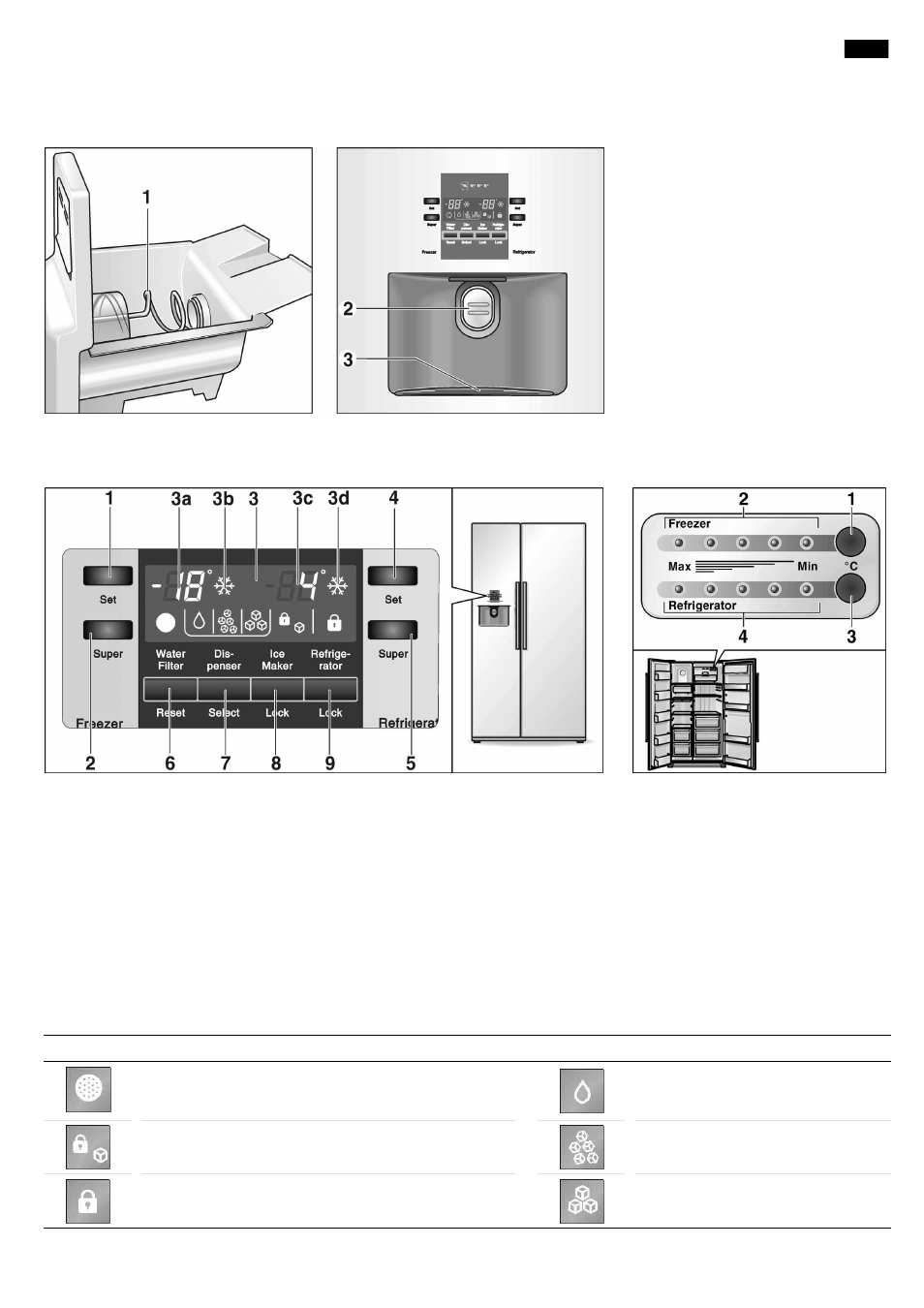

Ice maker Ice and water dispenser
1 Screw conveyor 2 Dispenser pad
3 Water collecting tray
Control and display panel
1 Selection button for freezer
compartment temperature
2 super" freeze button
3 Display panel
3a Temperature display,
freezer compartment
3b super" freeze display
3c Temperature display,
refrigerator compartment
3d super" cool display
4 Selection button for refrigerator
compartment temperature
5 super" cool button
6 Reset button, water filter
7 Request button for water/ice
8 Lock button for ice maker
for cleaning or prolonged nonĆuse
of the ice maker.
9 Lock button for control panel
(childproof lock)
Press button to prevent the settings
from being unintentionally changed.
To release the button, press for
longer than a second. The display
goes out.
Temperature control
1 Selection button for freezer
compartment temperature
2 LED display
Freezer compartment
temperature
3 Selection button for refrigerator
compartment temperature
4 LED display
Refrigerator compartment
temperature
Explanation of the symbols on the display panel
Filter needs changing" display
After changing the filter, press the water filter reset
button for approx. 5 seconds to switch off the display.
Water" display
Ice maker locked" display Crushed ice" display
Control panel locked" display Ice cubes" display
