11.11 VIEWING THE ECU PIN CONFIGURATION
ECU pin configuration in M1 is determined when the package is built and changes with each
Package, no longer is it one solution fits all. Therefore, rather than provide a wiring diagram for
each Package and for all M1's, M1 Tune generates a Wiring Summary,
The M1 Wring Summary shows the pin number used for each input and output, along with its
type, name and abbreviation.
Unused inputs are shown without any information in the Usage column.
To display and/or print the Wiring Summary:
1. Select menu Help »Package Wiring...

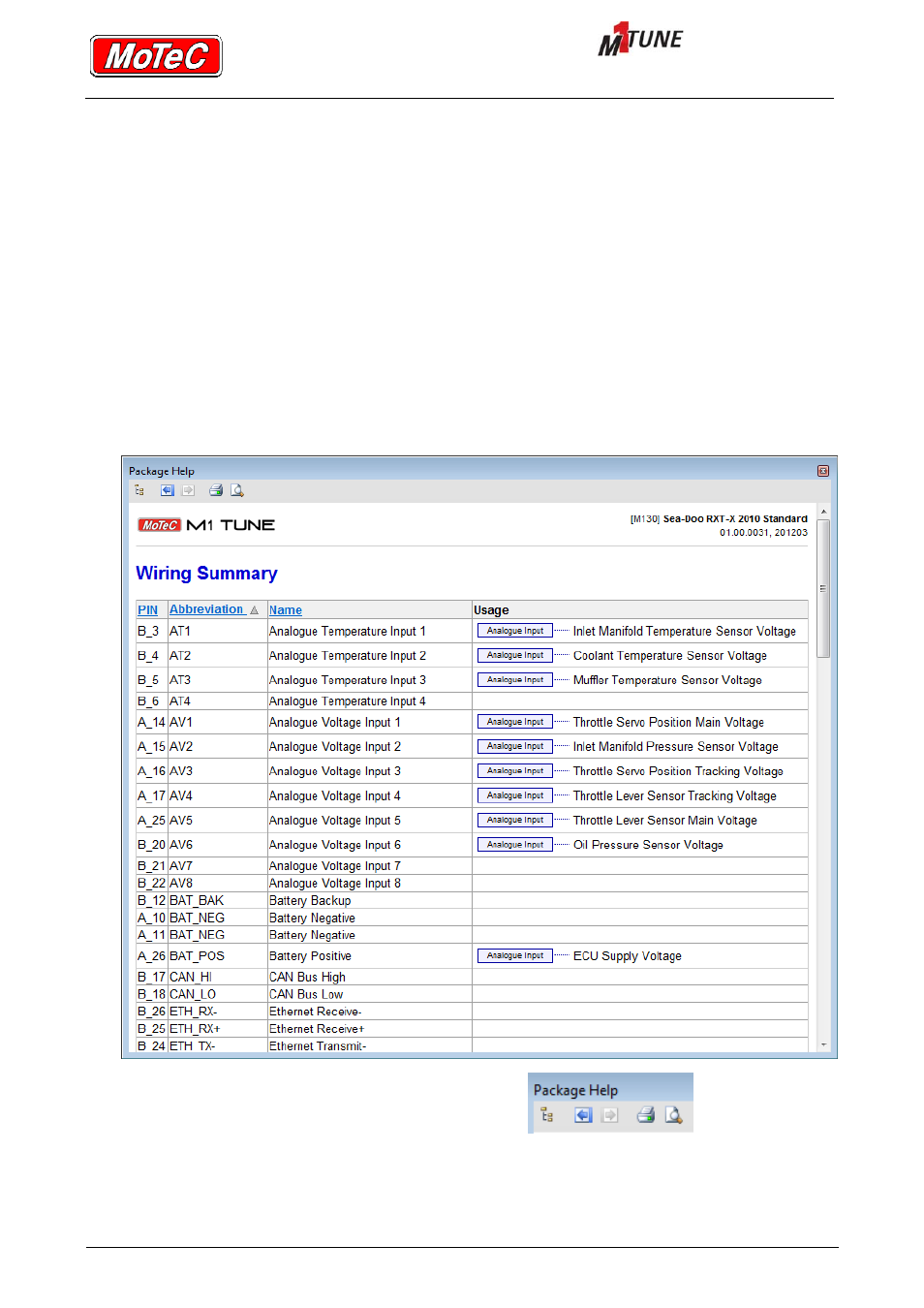

► The Wiring Summary window displays, for example:
2. To print the Wiring Summary, use the Print button at the top left of
the window.
