USING M1 TUNE
Printed documents are not controlled Page 52
11.7.1 Quick Lambda Function
When Q is used on the Fuel Main table, the function performed is a Quick Lambda.

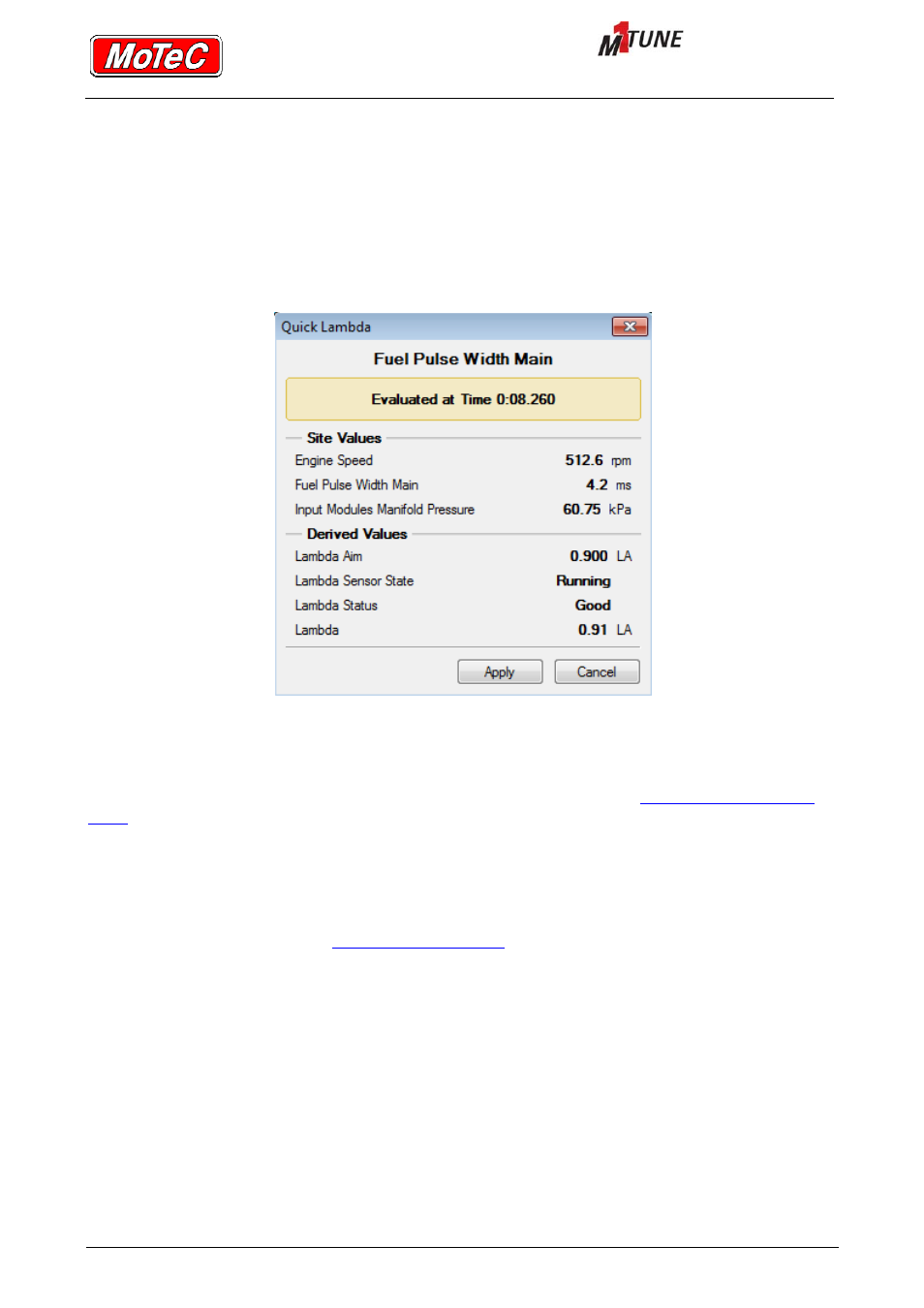

A Quick Lambda function, when used live (that is, live data is not paused), takes the single site
closest to the current running engine location, and place that site's details in the
Quick Lambda
window, for example:
M1 Tune will then retrieve the Fuel Aim value for this site, and the current Lambda value.
To perform the Quick Lambda on this site, review the information and click OK .
This same Quick Lambda function also works with recorded data. See Dyno Tuning with M1
Tune .
11.7.2 Dyno Tuning with M1 Tune
To make engine tuning faster, it is possible to Quick Lambda fuel table values at a point in the
past using pause live data, see
LIVE DATA CONTROL .
The process is as follows:
1. Connect the laptop to the M1 ECU and watch the live data in M1 Tune.
2. Ramp engine through the Ramp test.
3. Press the T key to pause the live data display.
4. Scroll back through the saved data on the Time Graph and review the ramp test.
