10 WORKSHEET COMPONENTS
A new Worksheet is created blank. The user can then populate the Worksheet with a variety of
components that can be placed anywhere on the Worksheet to create a customised layout that
suits the application. The components themselves can be moved, resized, and customised so
that they are appropriate to the worksheet.
Every component has a unique set of properties specific to that component type. These
properties determine how the component looks and behaves. The property values are set within
M1 Tune for tuning of the M1 ECU.
Note: The same component type can be used on multiple Worksheets. However, the
property values are specific to that one component instance; they are not shared
with other instances of that component type in other places.
The component types that are available include:
• Calibrate
• Table Target
• Channel List
• Time Graph
• Scatter Plot
• Histogram
• Colour Graph
• Notes

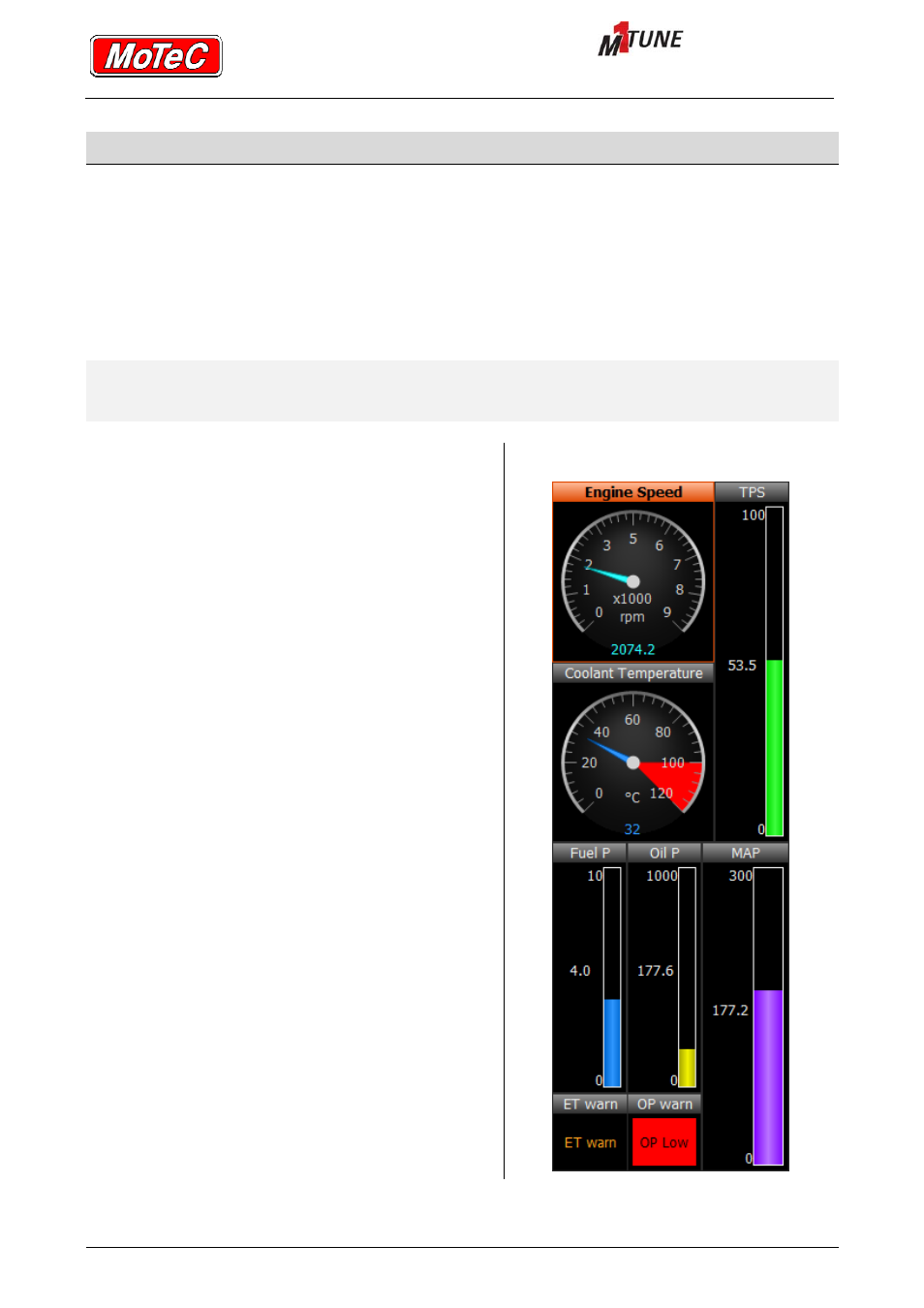

• Gauges Examples of gauge type components.
