10.2 CALIBRATE COMPONENT
For those intending to make changes to their Package, the calibrate component is the most
important component in M1 Tune, it is an all in one place to view and modify tables and
parameters. If you want to see the value of any item in M1 Tune, it can be found in the Calibrate
component.
Calibrate also allows quick functions for lambda tuning and sensor calibration readings.
It consists of two main parts:
• The Calibrate list, which displays the value of channels. See Calibrate List
• Calibrate table and/or graph. When tuning a vehicle, the calibrate table and graph are
generally the most important components used. To make the best use of the available
screen space, the graph and table can be cycled between three views:
− Table and graph
− Table only
− Graph only
See Changing Calibrate Display Options .
It is also possible to zoom in so that the Calibrate component uses the whole screen area.
See Calibrate Component Properties or information on configuring what is displayed in the
Calibrate component.

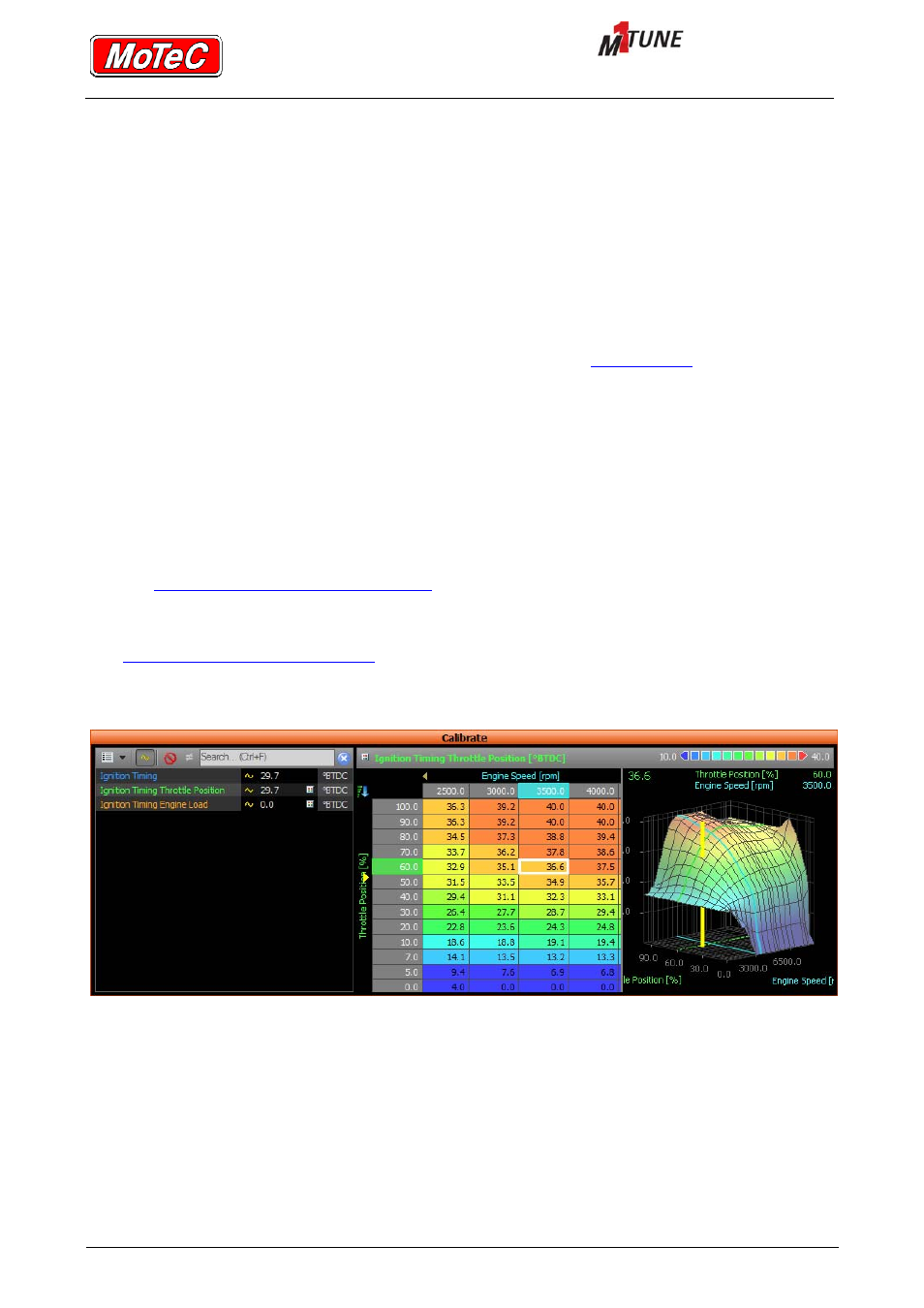

Example Calibrate window
