WORKSHEET COMPONENTS
Printed documents are not controlled Page 43
The use of Notes by the end user is also beneficial when creating their own customised
Worksheets. The main use of the Notes component is to explain how best to use the Worksheet,
and the purpose of each component.

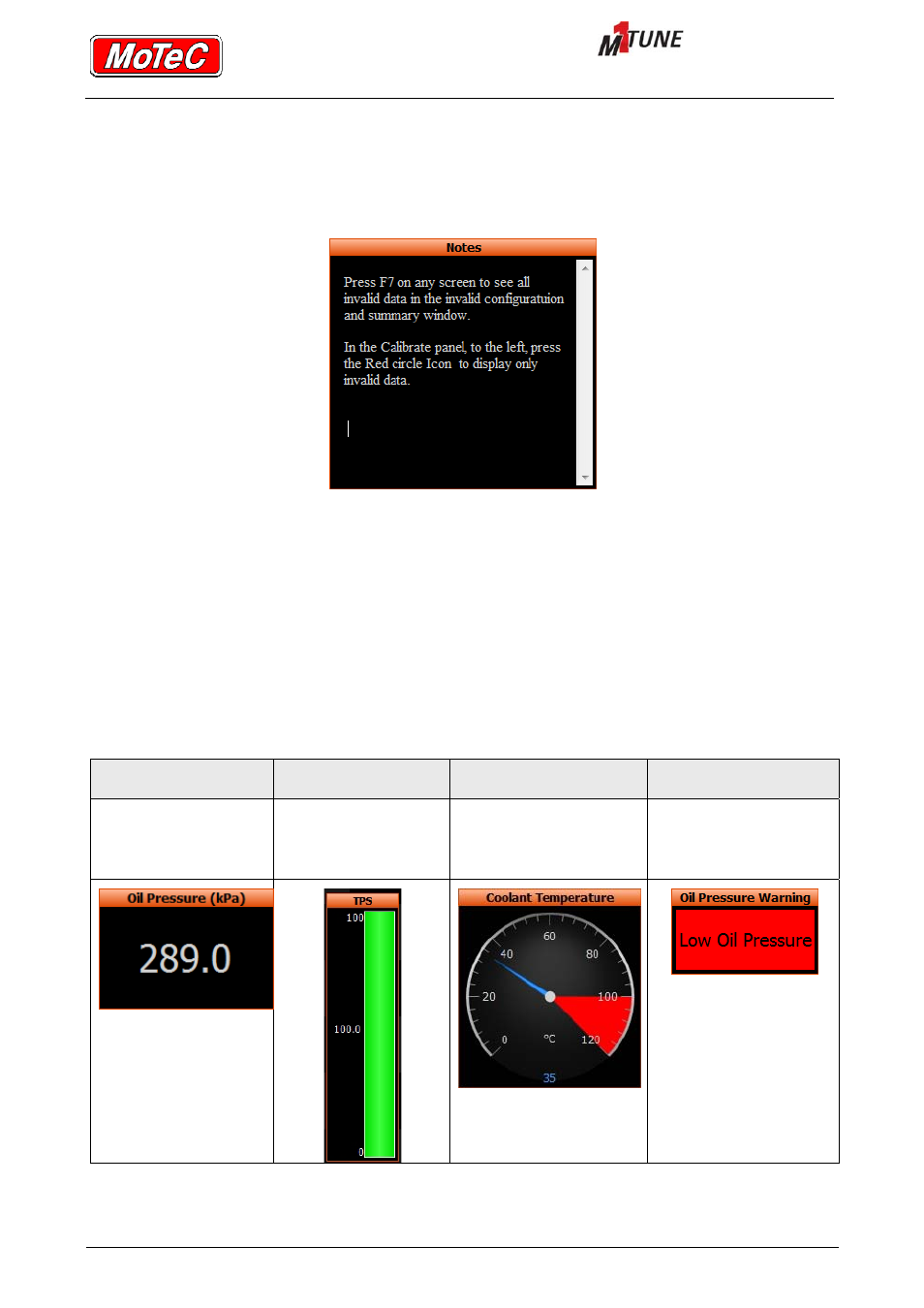

Example Notes
10.15 GAUGES COMPONENT
The Gauges component is provided to display channels in a fast and easy to read manner.
This is extremely important when an engine is on and running. A gauge is often the quickest way
to keep an eye on vital engine condition channels.
For example, with one glance it is possible to see engine speed, Inlet air temperature and engine
oil pressure.
Gauge types include the following.
Numeric Bar Dial Status Light
A single channel
numeric display of a
channel value
A vertical or
horizontal colored
bar graph A dial type of gauge
Warning light or status
light for a particular
channel or condition
