10.12 HISTOGRAM COMPONENT
The Histogram component provides a graphical representation of the proportion of time that a
channel has been within a specific value range. For example, the amount of time that an engine
has spent in high boost.
A common histogram shows the amount of time that an engine has spent at particular RPM

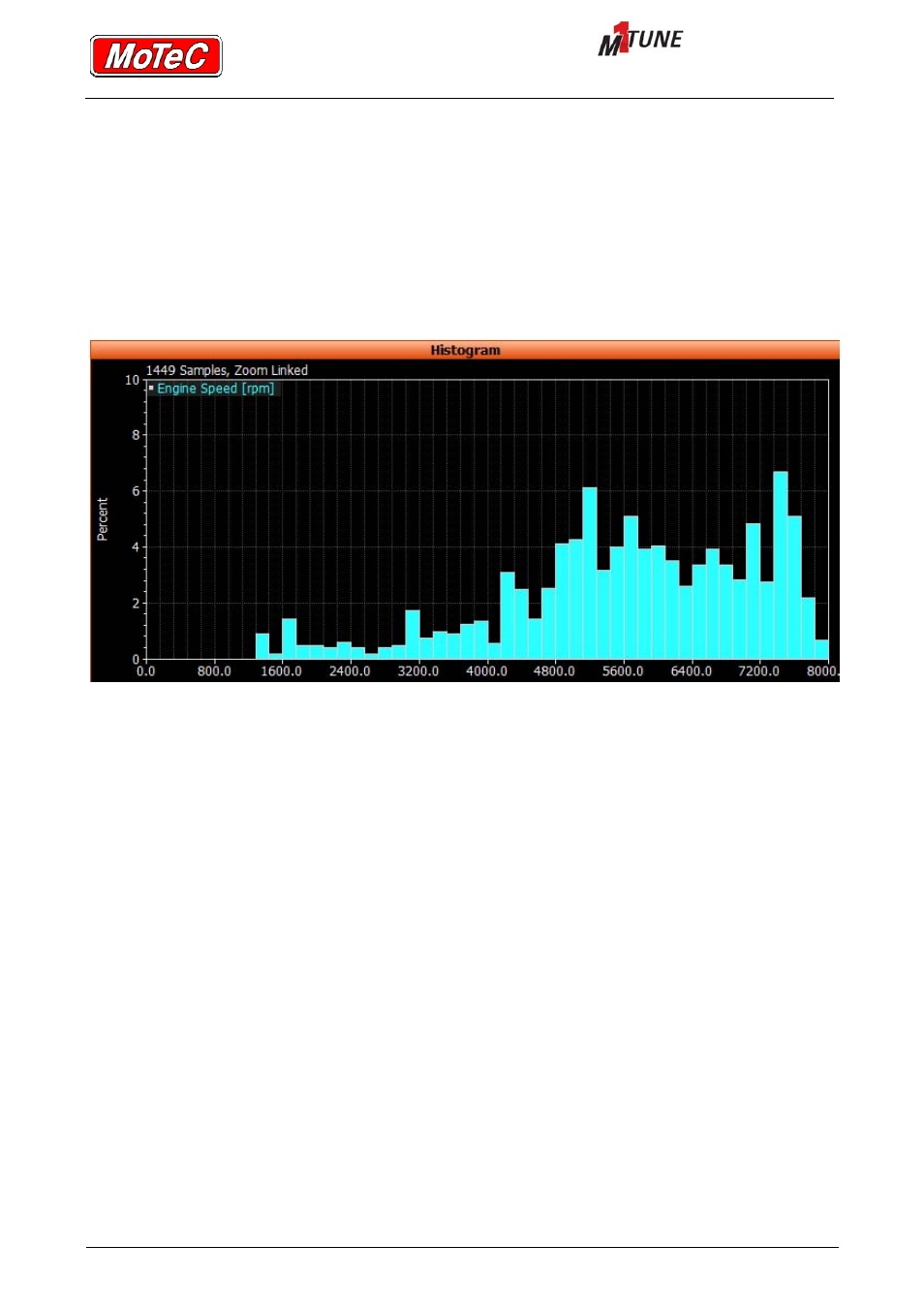

ranges, as shown in this example histogram.
Example Histogram
The Histogram Properties window controls the following:
• Channel selection and settings
• Various display options
• The period of time (via the Telemetry tab).
