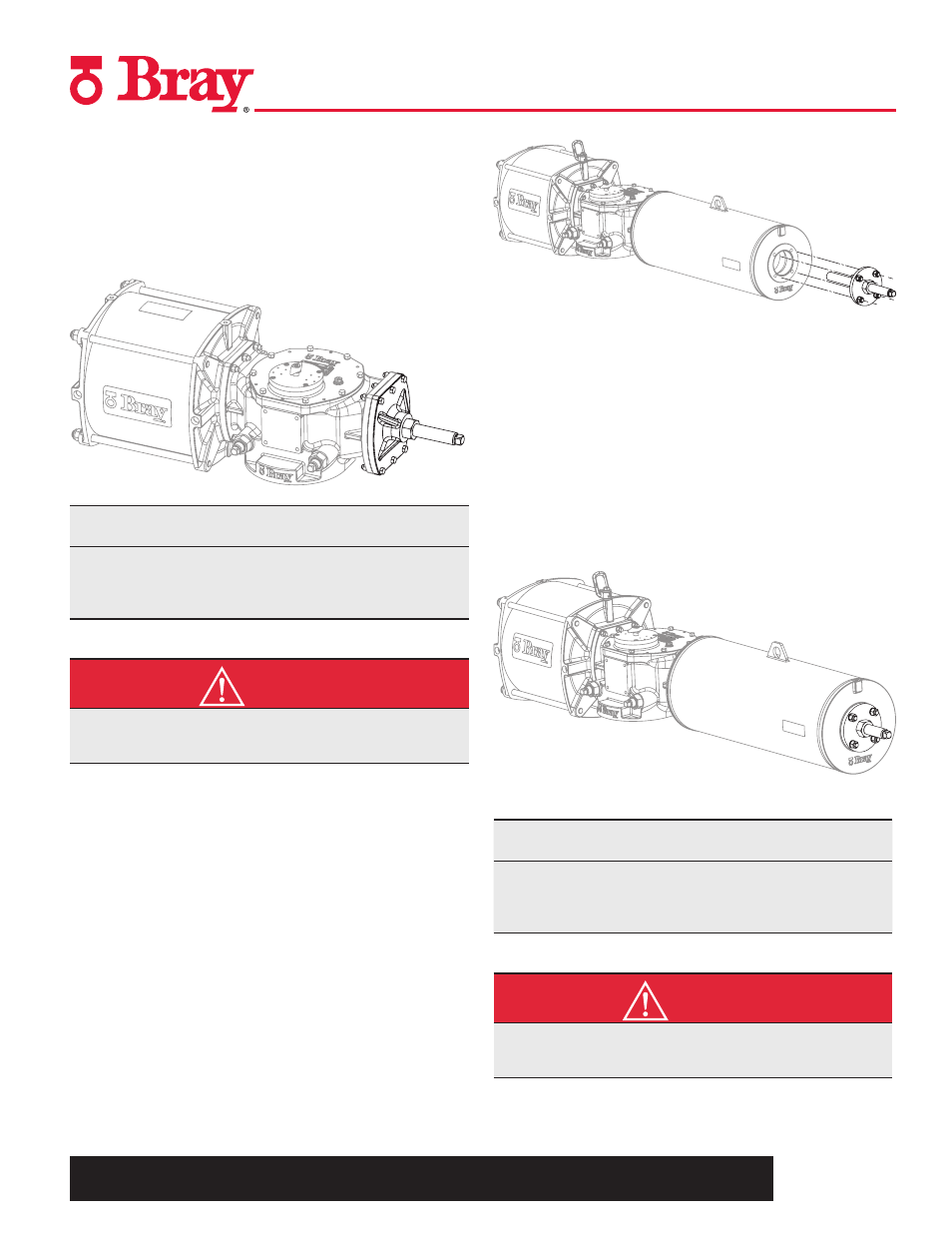

S98 O & M : 35
Series 98 Operation & Maintenance
17.1.2 Adjusting Extended Stopper
Connect air supply to the rod end side port of the pneumatic cyl-
inder, adjust the extended stopper screw to required position, and
reverse the actuator direction to stop movement by the extended
position.
NOTICE
The Extended Stopper is not designed as a jackscrew. Do not
use this to manually override the actuator. Always adjust the
stopper with no load on it.
WARNING
Never remove the assembly fasteners without first backing off the
Extended Stopper fully to release any load on it.
17.2 Installing Extended Stopper for Spring
Module
4HIS
ACTUATOR
THE
ASSEMBLY
TABLE
17.2.1 Adjusting Extended Stopper
THE
NOTICE
The Extended Stopper is not designed as a jackscrew. Do not
use this to manually override the actuator. Always adjust the
stopper with no load on it.
WARNING
Never remove the assembly fasteners without first backing off the
Extended Stopper fully to release any load on it.
