S98 O & M : 25
Series 98 Operation & Maintenance
LEFT VIEW
TOP VIEW
FRONT VIEW
RIGHT VIEW
STEM BORE DETAIL
ACCESSORY DRIVE
DETAILS
B
D F
E
T
A
G
C
ØH
S
R
4.0
6.0
12.70
20
80.0
30
M
K
U
J P
M5 7.00
L
ØQ
ØN
LEFT VIEW
TOP VIEW
FRONT VIEW
RIGHT VIEW
STEM BORE DETAIL
ACCESSORY DRIVE
DETAILS
B
D F
E
T
A
G
C
ØH
S
R
4.0
6.0
12.70
20
80.0
30
M
K
U
J P
M5 7.00
L
ØQ
ØN

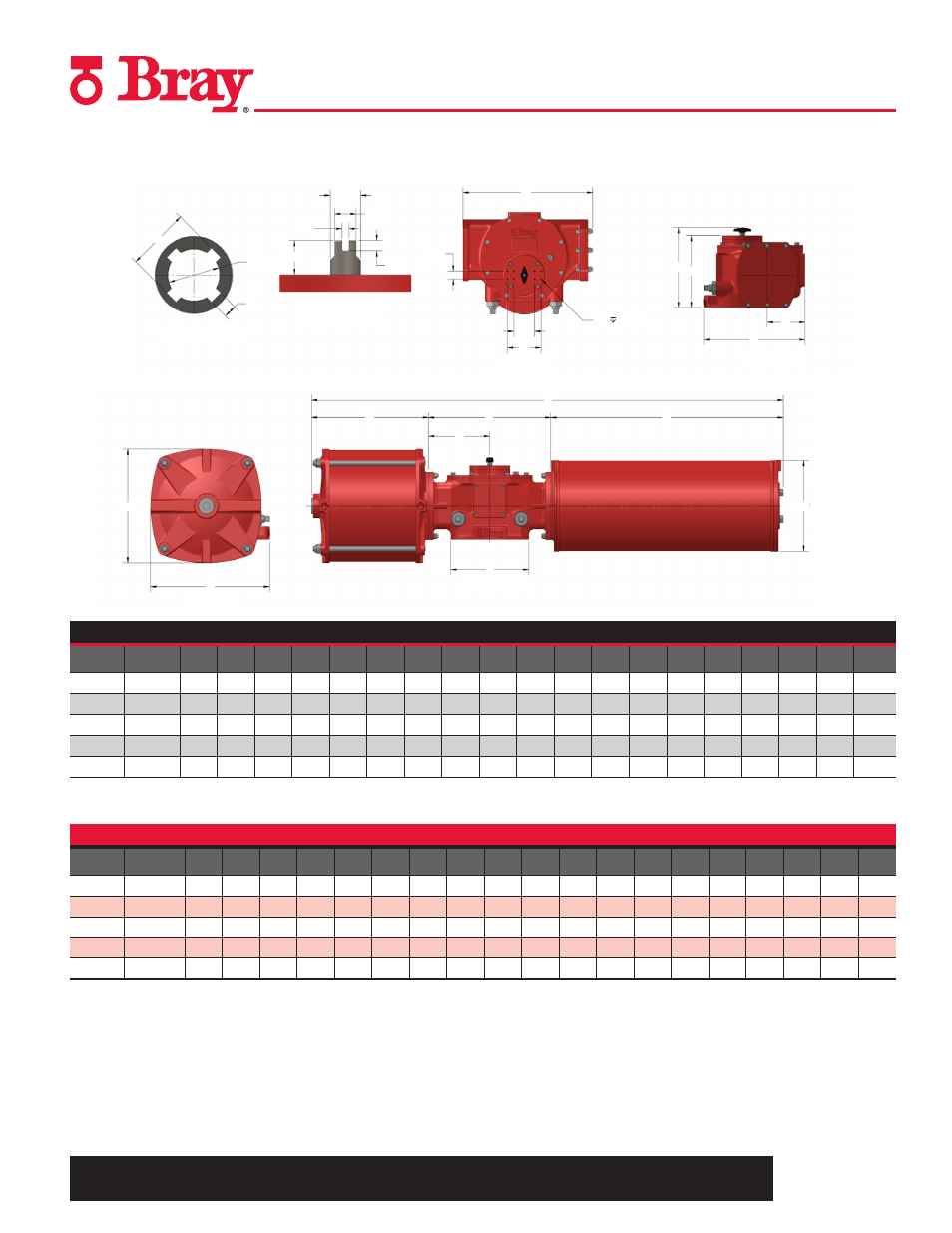

13.0 Series 98 Dimensions
SERIES 98 MAX DIMENSIONS, inch
Model ISO Base A B C D E F G H J K L M N P Q R S T U
45E2 F16/F12 52.8 14.8 14.8 14.2 6.3 12.5 26.2 9.4 9.7 9.4 13.4 – 0.7 8.5 2.0 0.5 2.3 7.7 3.8
73E2 F16/F12 60.1 16.8 16.8 15.8 7.9 15.8 28.5 12.8 11.8 11.3 16.9 – 0.7 9.8 2.5 0.625 3.1 7.8 5.1
14E3 F25/16 72.6 21.3 21.3 18.8 9.3 18.5 35.3 13.5 12.1 15.4 19.6 5.1 0.7 10.9 3.0 0.75 3.7 11.8 5.7
24E3 F30/25 90.0 25.1 25.1 21.9 11.5 22.9 45.2 15.6 14.3 19.3 24.3 5.1 1.0 13.1 4.5 1.0 5.2 13.8 7.3
45E3 F35/30 113.3 33.3 33.3 25.8 14.3 28.6 58.9 18.7 15.3 22.8 30.0 5.1 1.0 14.1 6.0 1.5 6.8 16.3 8.3
SERIES 98 MAX DIMENSIONS, mm
Model ISO Base A B C D E F G H J K L M N P Q R S T U
45E2 F16/F12 1342 376 376 360 159 318 664 240 246 240 341 -- 18 216 50 12.0 59 195 96
73E2 F16/F12 1526 427 427 400 201 402 723 326 300 288 430 -- 18 249 64 15.88 78 197 129
14E3 F25/16 1843 542 542 477 235 470 896 342 307 390 498 130 18 276 76 19.05 93 300 145
24E3 F30/25 2287 638 638 556 291 582 1148 397 364 491 618 130 25 334 114 25.4 131 350 186
45E3 F35/30 2877 845 845 656 363 726 1495 476 388 580 762 130 25 357 152 38.1 173 415 212
Refer ES drawings for dimensions of specific models
