By default, the power supply is in DVM mode. Press
Shift
followed by V/m
Ω to toggle between Voltmeter
and m
Ω Meter mode.
3.10 Milliohm Meter
The instrument is also equipped with a Milliohm Meter which can accurately measure resistance up to 10
Ω.
To protect the resistor, make sure to select an appropriate power range before connecting it to the power supply.

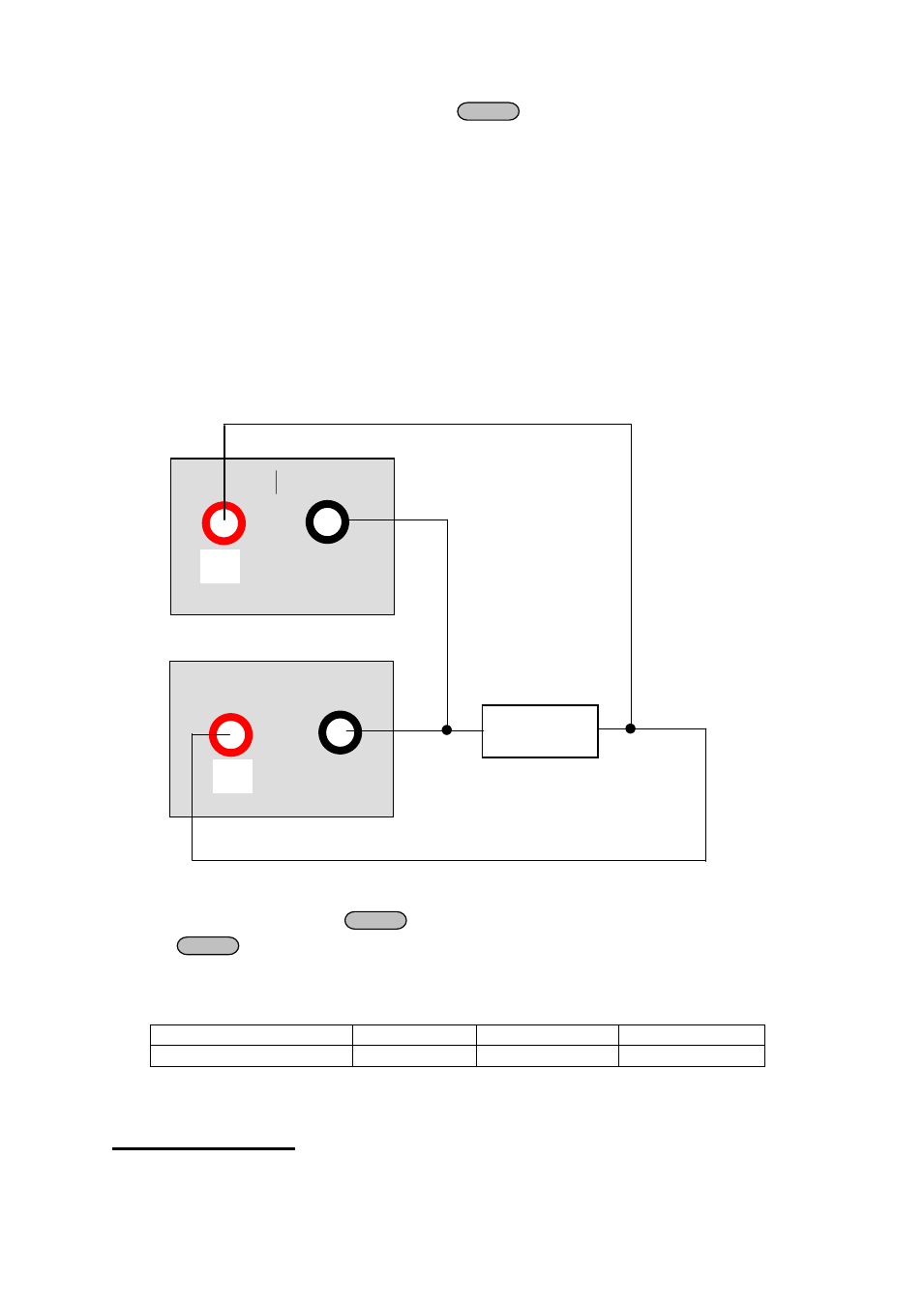

To measure resistance, connect the resistor as shown below:
To measure resistance:
1) Enable Ohmmeter mode: Press
Shift
followed by V/m
Ω（Display will show ---.—mΩ Range 0.1 W）
2) Press
Shift
followed by 0.1 W /1 W /10 W to select an appropriate range for the resistor you are
measuring.
Measurement range 0.1 W 1 W 10 W
Test voltage (Output) 1 V 3.3 V 10 V
4
The DB9 TTL interface connector on the rear panel of the power supply can be connected to a RS-232, USB or
. Remote Operation
+
_
DV M
+
_
POWER SUPPLY
Load
