2) Wait a few seconds while the scan tool validates the PID MAP.
3) The scan tool will prompt you to select the vehicle make. (If you
have selected the vehicle before, the Vehicle Manufacturer
screen would not appear again.)

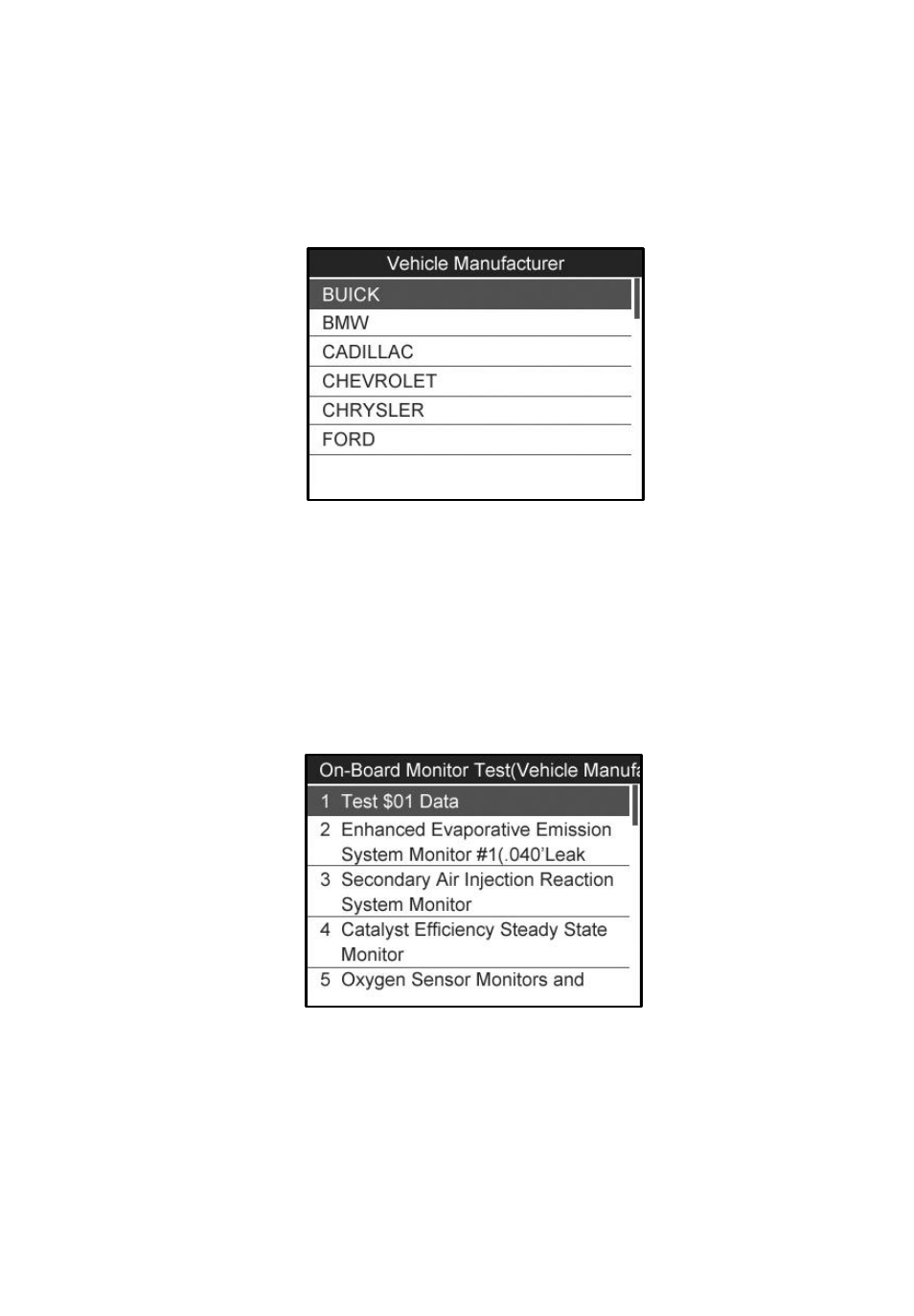

Figure 5.26
4) After selecting the vehicle manufacturer, the scan tool shows the
On-Board Monitors tests for the specific monitoring systems.
5) On On-Board Monitor Test menu, use the UP/DOWN scroll
button to select a test to view and press the OK button.
Figure 5.27
If the vehicle under test does not support the mode, an advisory
message will be displayed on the screen. (Figure 5.28)
