46

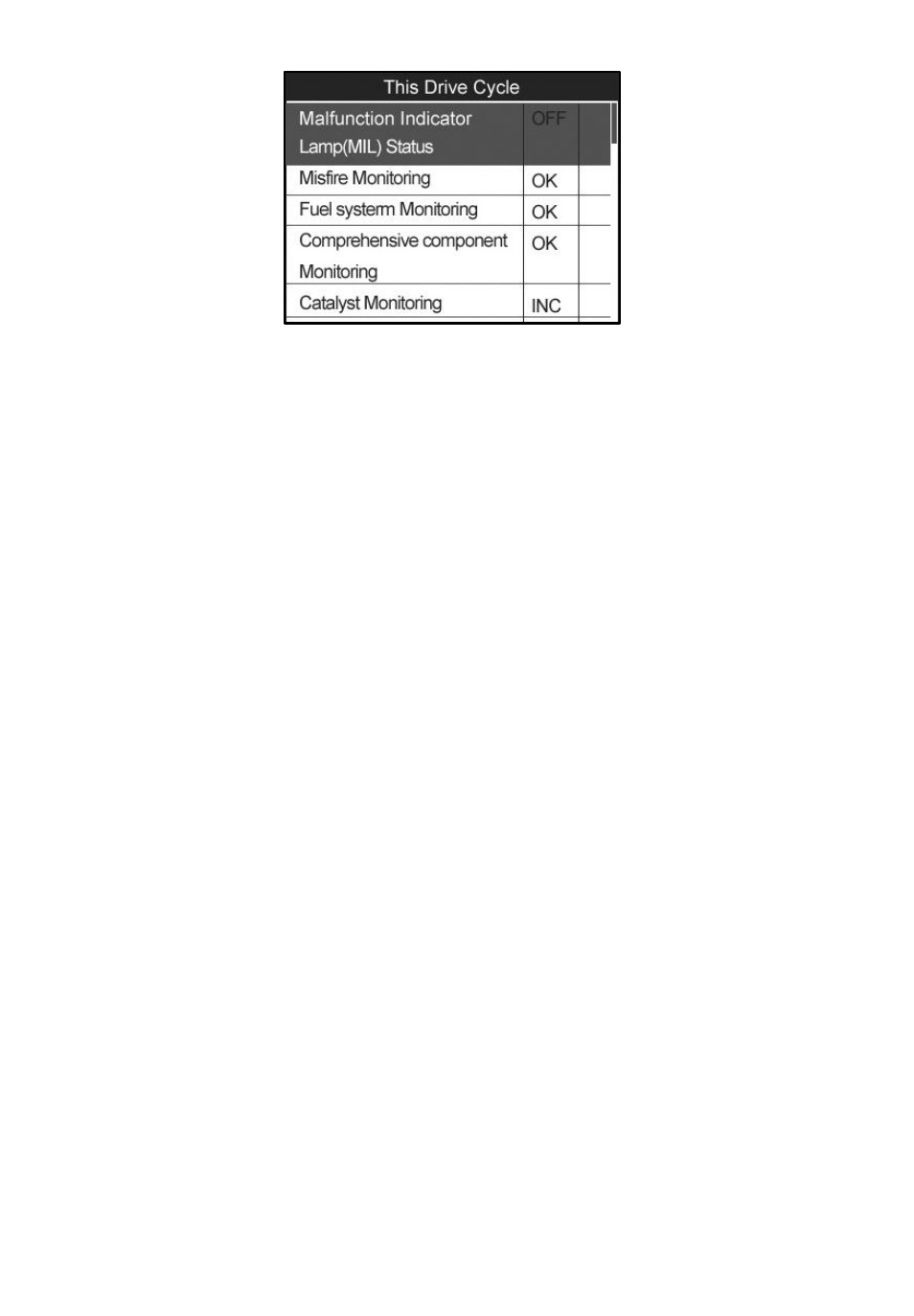

Figure 5.22
6) Use the UP/DOWN scroll button for more PIDs if additional
information is available on more than one page. Or use the
LEFT/RIGHT scroll button to view PIDs in the previous/next
page.
7) Press the ESC button to return to Diagnostic Menu.
5.6 O2 Monitor Test
OBDII regulations set by SAE require that relevant vehicles
monitor and tests on the oxygen (O2) sensors to identify problems
related to fuel efficiency and vehicle emissions. These tests are not
on-demand tests and they are done automatically when engine
operating conditions are within specified limits. These test results
are saved in the on-board computer's memory.
The O2 Monitor Test function allows retrieval and viewing of O2
sensor monitor test results for the most recently performed tests
from the vehicle's on-board computer.
The O2 Monitor Test function is not supported by vehicles which
communicate using a controller area network (CAN). For O2
Monitor Test results of CAN-equipped vehicles, see 5.7 On-Board
Monitor Test.
1) Use the UP/DOWN scroll button to select O2 Monitor Test
from Diagnostic Menu and press the OK button. (Figure 5.3)
