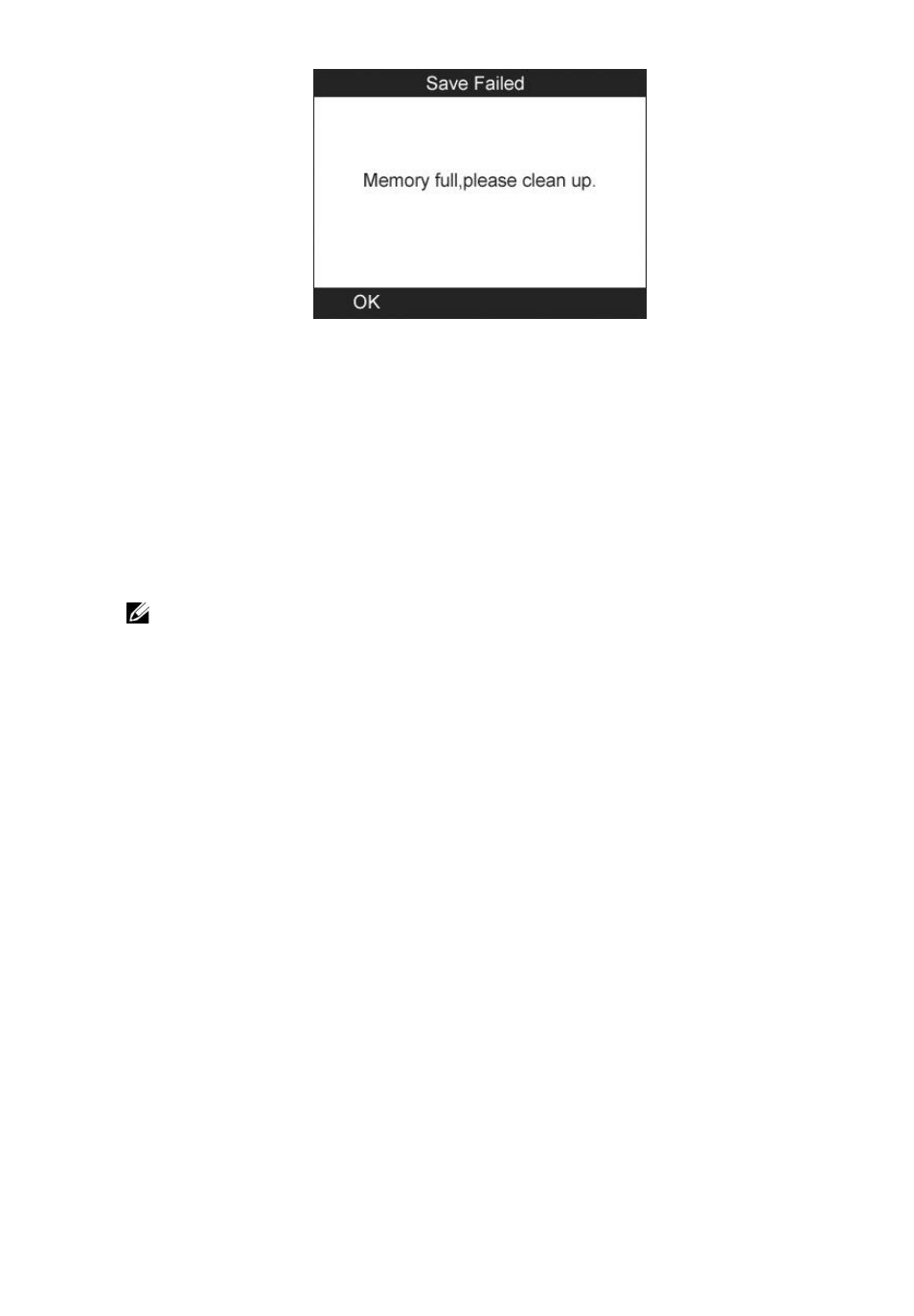

Figure 5.18

Select OK to return to the previous menu.

4) Select Pause to suspend recording. You could resume the

recording process again by selecting Start.

5) Press the ESC button to exit.

NOTE: You can review the saved data in Playback function.

5.4 Freeze Frame

Freeze Frame Data allows the technician to view the vehicle’s
operating parameters at the moment a DTC (Diagnostic Trouble
Code) is detected. For example, the parameters may include
engine speed (RPM), engine coolant temperature (ECT), or
vehicle speed sensor (VSS) etc. This information will aid the
technician by allowing the parameters to be duplicated for
diagnostic and repair purposes.

1) To view freeze frame data, use the UP/DOWN scroll button to

select Freeze Frame from Diagnostic Menu and press the OK
button. (Figure 5.3)

2) Wait a few seconds while the scan tool validates the PID MAP.
