40

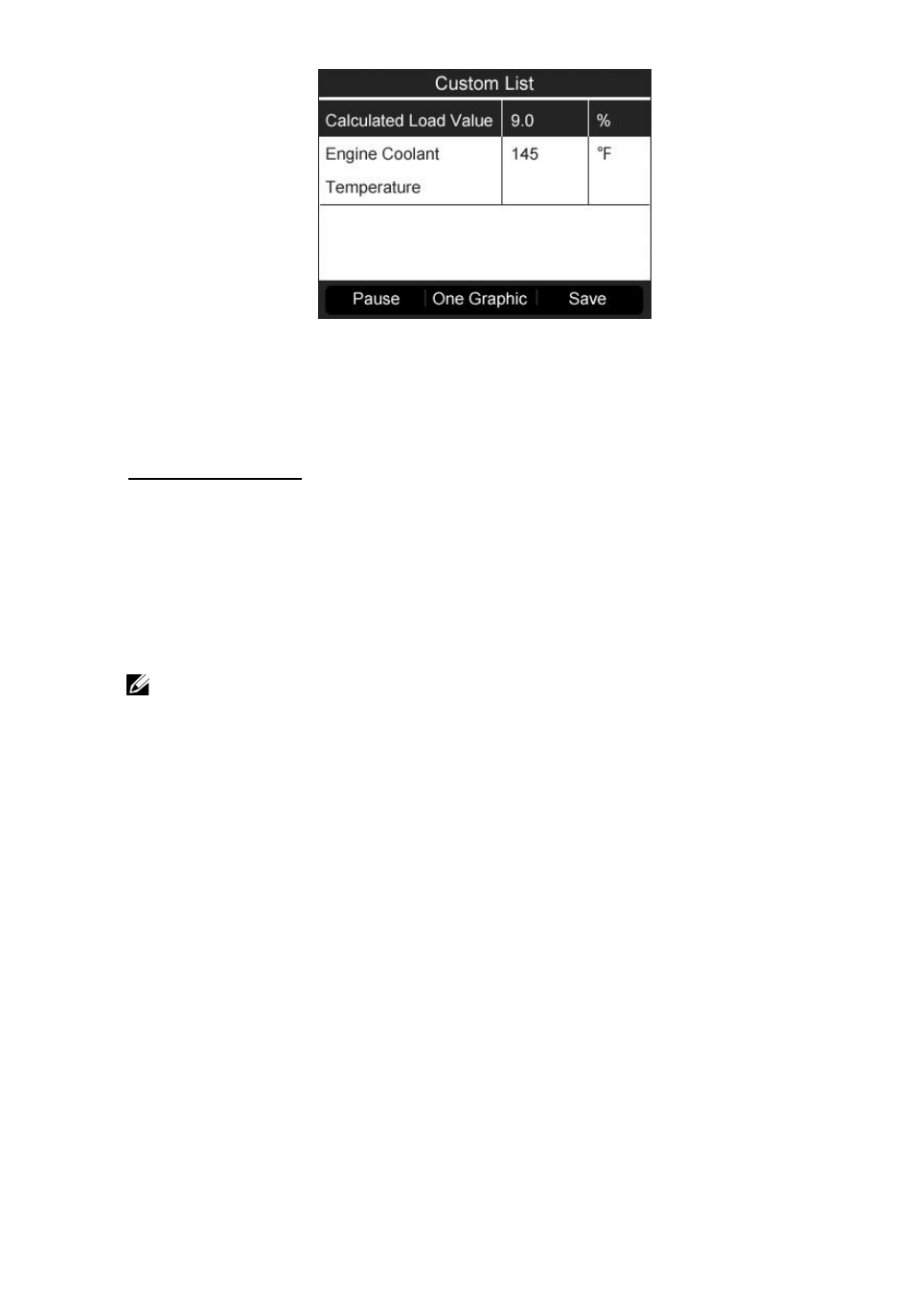

Figure 5.15
4) Press the ESC button to return to the previous menu.
Recording Data
The Record Data function allows recording vehicle modules’
Parameter Identification data (PID) to help diagnosing
intermittent vehicle problems. You could save data files to the
SD card and then use the Playback function to view the saved
files.
NOTE: The length of time for each frame varies per vehicle.
Generally, one frame of data is about 1/4 second, or 4 frames
per second.
1) To record live data with the live data screen displaying, select
Save at the bottom. The scan tool will start timing to record the
retrieved live data and PID graphs.

If you record live data under text mode, the following screen
shows:
