28

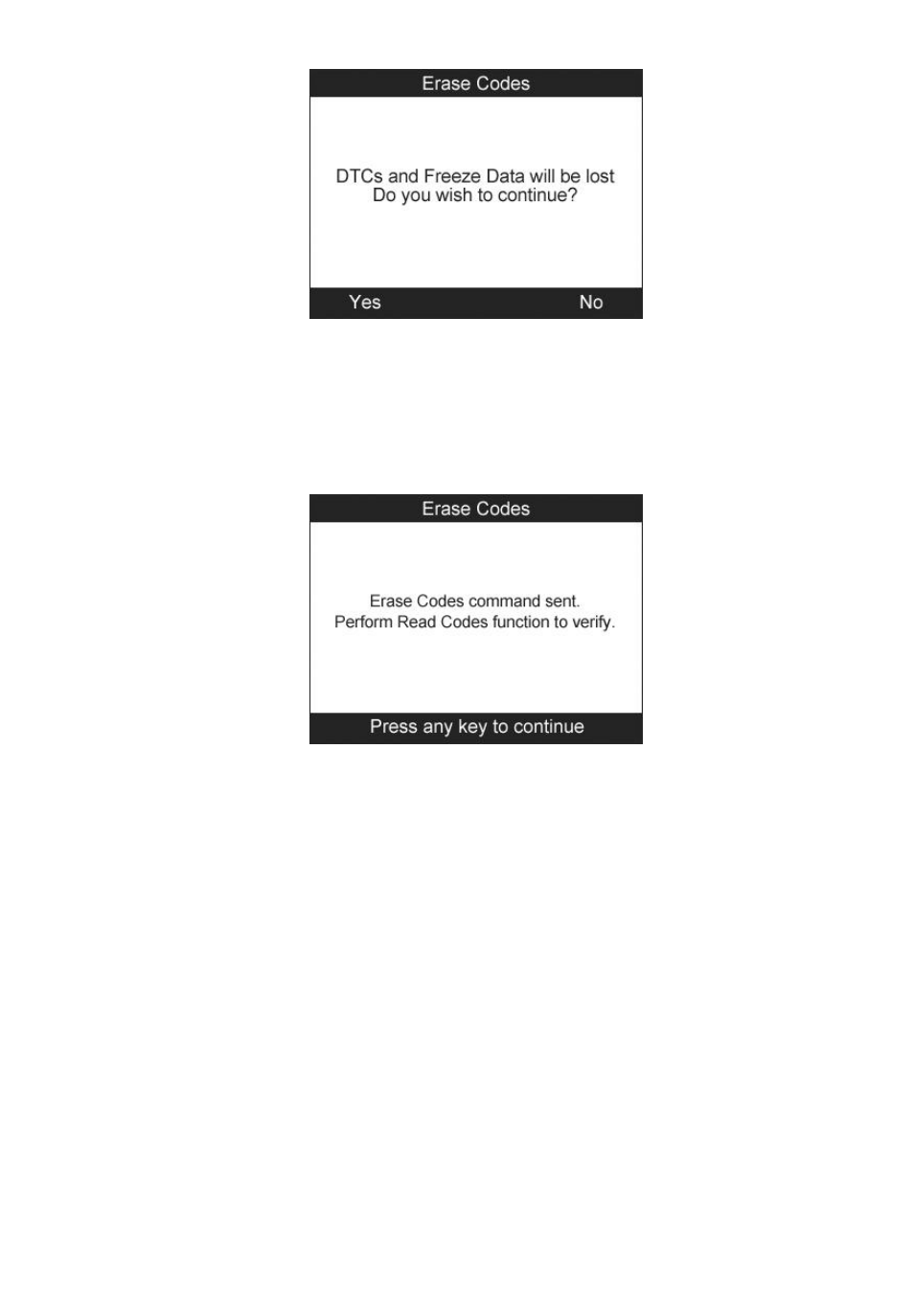

Figure 4.12
4) Select Yes to confirm and No to exit. When the command is
sent, the tool will display a message.
Figure 4.13
5) To make sure the codes are erased completely, perform Read
Codes function to verify.
4.4 ECU Information
This function allows user to read the vehicle ECU information.
1) Follow 4.1 Vehicle Selection procedure to enter the vehicle
information. The scan tool displays a function menu (Figure
4.10). (Taking Fiat as an example)
2) Use the UP/DOWN scroll button to select Ecu Information
from Function Menu and press the OK button.
