Autel Autolink AL609 - Manual (Page 33)

31
 Turn the ignition off and wait for about 10 seconds. Turn the
ignition back to on and repeat the procedure from step 5.

If the “LINKING ERROR” message does not go away, then
there might be problems for the scan tool to communicate with
the vehicle. Contact your local distributor or the
manufacturer’s customer service department for assistance.

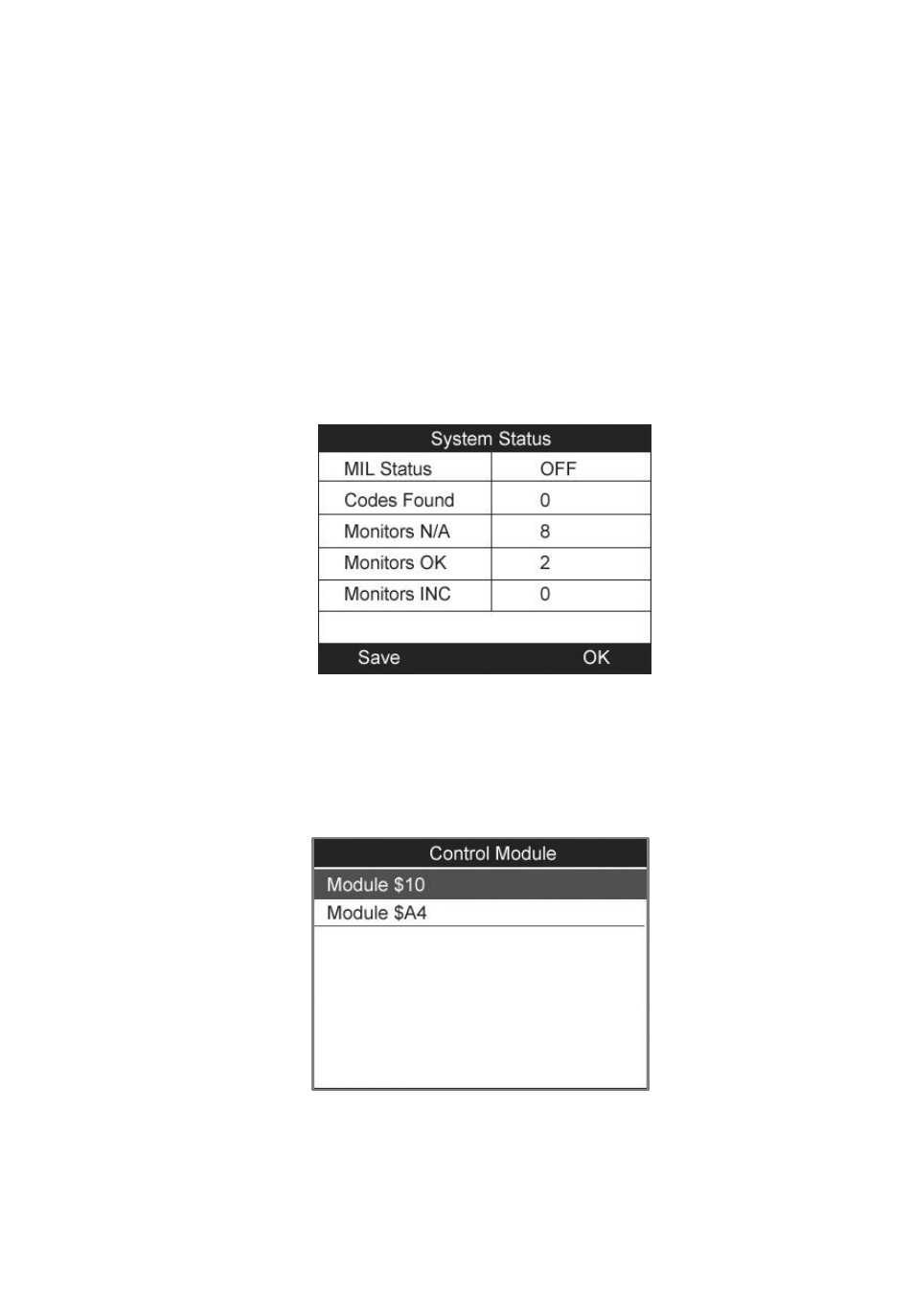

7） View a summary of System Status (MIL status, DTC counts,
and Monitor status) onscreen. (Figure 5.1) Press the ESC button
and the Diagnostic Menu (Figure 5.3) will come up.
Figure 5.1
 If more than one module is detected, you will be prompted to
select a module before testing.
Figure 5.2
