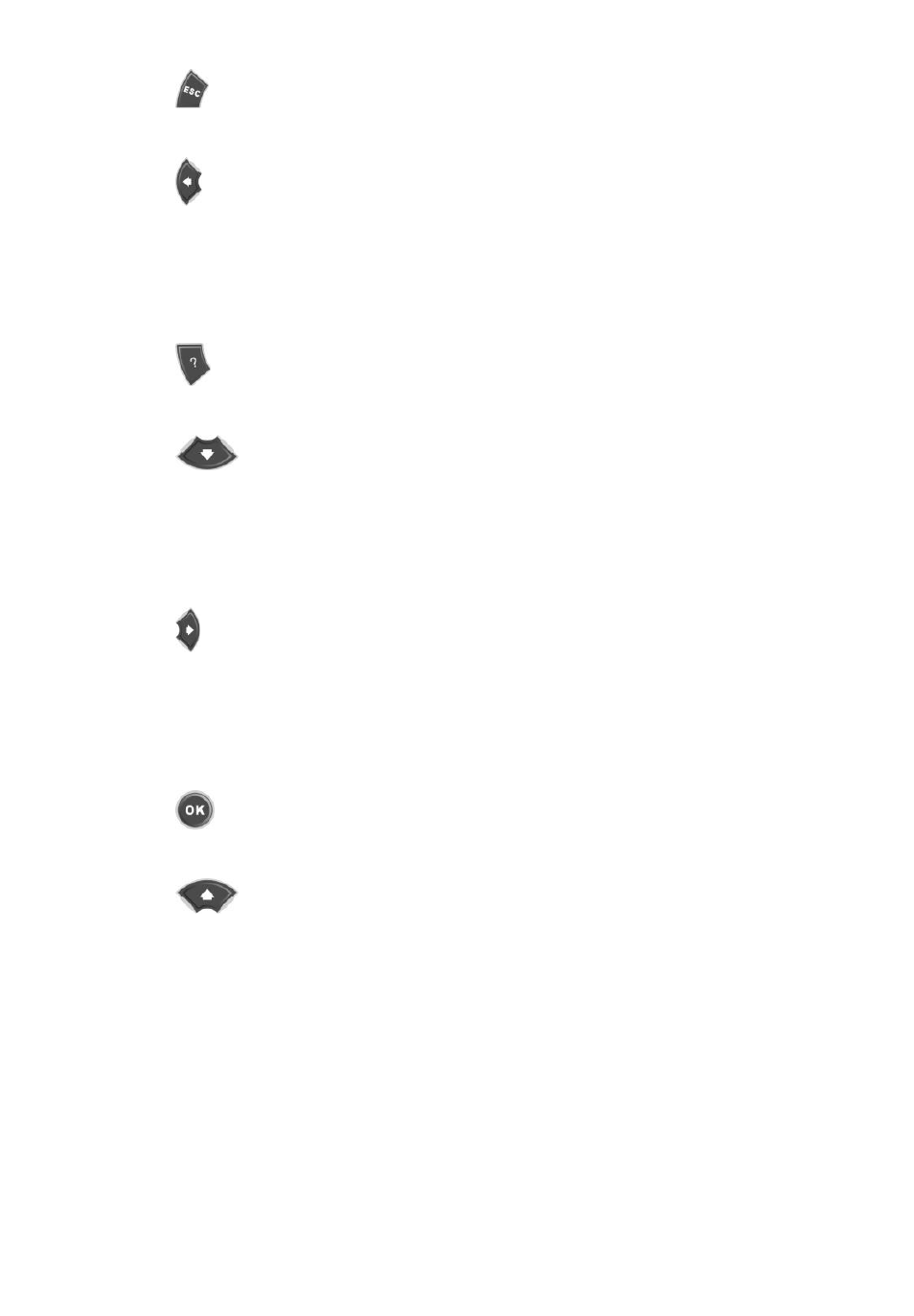

4) ESC BUTTON – Cancels a selection (or action) from a
menu or returns to the previous screen.
5) LEFT SCROLL BUTTON – When scrolling through a
screen of data or text moves to previous character and views
additional information on the previous screen, if recorded data
content covers more than one screen. It is also used to view
previous trouble code when viewing DTCs.
6) HELP BUTTON – Provides help information and Code
Breaker function.
7) DOWN SCROLL BUTTON – Moves down through
menu and submenu items in menu mode. When more than one
screen of data is retrieved, moves down through the current
screen to the next screen for additional data. When looking up
DTC, it is used to change value of the selected character.
8) RIGHT SCROLL BUTTON – When scrolling through a
screen of data or text moves to previous character and views
additional information on the previous screen, if recorded data
content covers more than one screen. It is also used to view next
trouble code when viewing DTCs.
9) OK BUTTON – Confirms a selection (or action) from a
menu.
10) UP SCROLL BUTTON – Moves up through menu and
submenu items in menu mode. When more than one screen of
data is retrieved, moves up through the current screen to the
previous screens for additional data. When looking up DTC, it is
used to change value of the selected character.
11) USB CONNECTOR – Connects the scan tool to the PC for
printing.
12) TF CARD SLOT – Holds the TF card.
