37

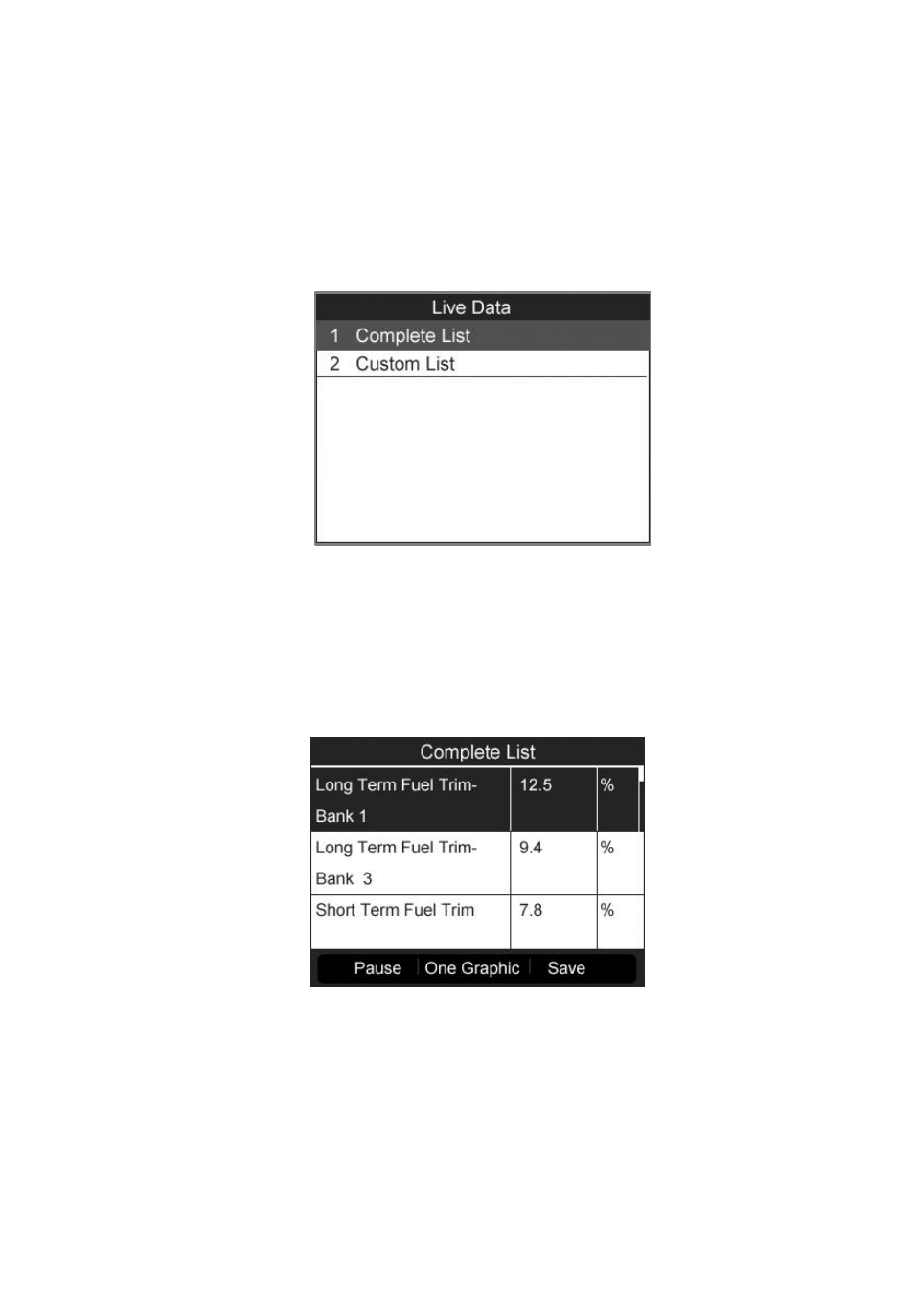

Figure 5.9
A. Viewing Complete List
1) To view a complete set of data, use the UP/DOWN scroll button
to select Complete List from Live Data menu and press the
OK button.
Figure 5.10
2) To view the live PIDs onscreen, use the UP/DOWN scroll button
for all PIDs to display if additional information is available on
more than one page.
Figure 5.11

If the “One Graphic” at the bottom appears when a PID is
highlighted, graphic information is available. Select One Graphic
to view the graph. (Figure 5.12). The PID name, current value,
maximum and minimum values are displayed on the screen.
