Page 4

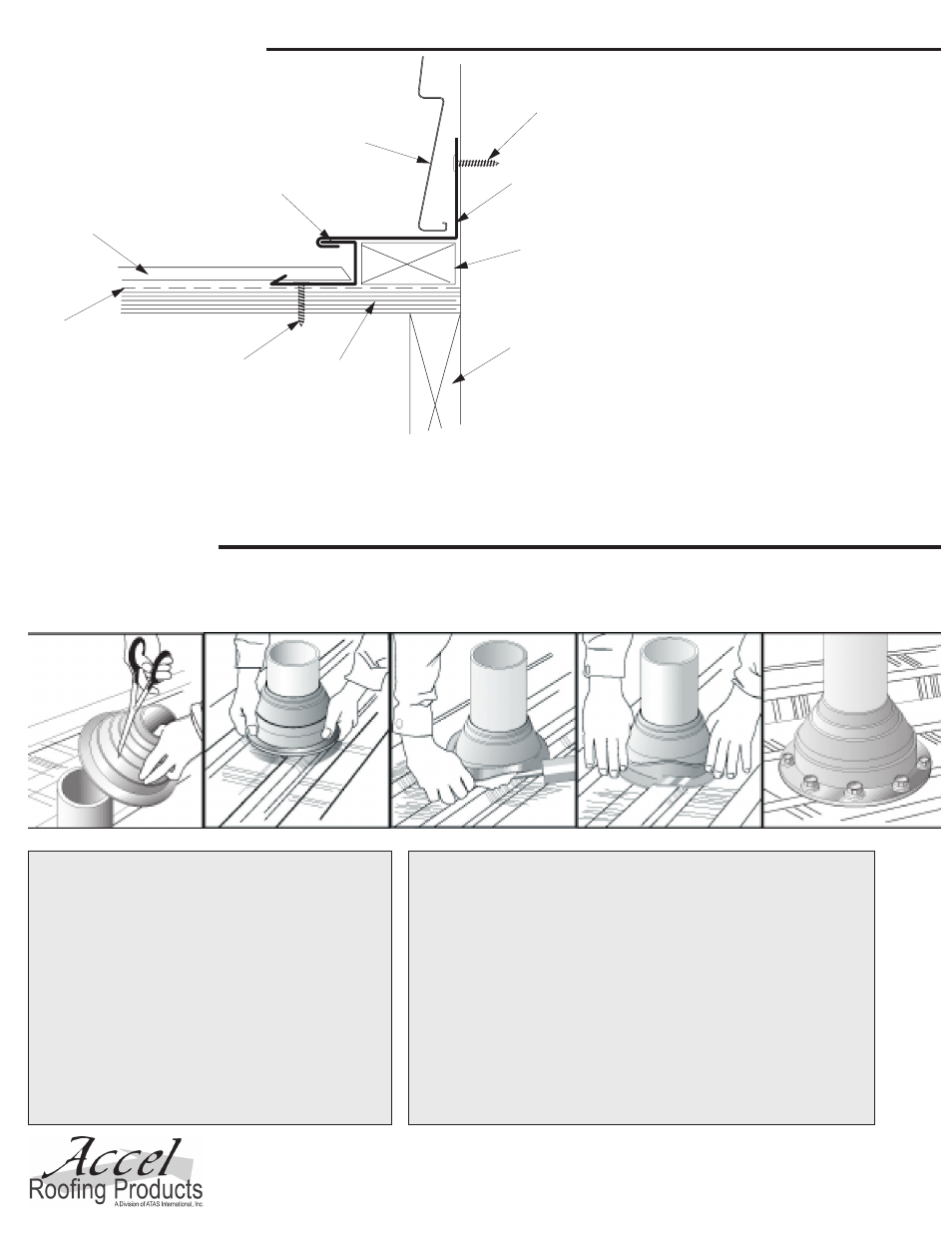

Step 1

Cut on the proper pipe

diameter marked on the

flashing.

Pipe Detail

Step 2

Position over pipe and slide

down the pipe.

Step 3

Apply polyurethane sealant

to the bottom of the base.

Step 4

Mold the flexible base to the

panel contours

Step 5

Fasten with 1/4” x

1 1/8” drilling

fastener every 11/2”

around the base.

Pipe drawings provided by Triangle Fasteners

Tools and Rules:

Basic Equipment Required:

Tie-off ropes, safety harness, long level, ladders, scaffolding with

approved planking, extension cords with approved ground plugs

and services.

Additional Tools:

Metal folding tool, hammer, chalk line, measuring tape, metal

cutting tools - nibblers, drills, hacksaw, utility knife, pop-rivet

gun, caulking guns, layout and combination square, C clamps,

sheet metal shears (including RH, LH, straight and overhand).

Power driven screw gun with proper bits, depth-setting

nosepiece, variable speed.

Choose the correct equipment and tools to do the job in a

safe manner. Wear safety gear and follow OHSA

requirements.

Follow these simple rules:

1. Never cut the panels with an abrasive cut-off wheel or torch, as this will damage

the finish.
2. Do not weld the trim or panels.
3. Remove any small burrs left by cutting, screwing or drilling.
4. Remove protective masking immediately after trim and panels are installed.
5. Caution should be taken when unloading the panels to prevent damage.
6. Use appropriate screws for the type of underlayment and long enough to fully

penetrate and secure the panel.
7. The stored materials should be kept dry.
8. Do not cut on finished roof. Remove all drill spirals, chips and dust immediately.
9. Seal neoprene closures and soft cell foam by applying appropriate sealant to

both surfaces.
10. Put appropriate sealant/butyl tape between overlapping trims.
11. Overlap trims in a manner not to impede the flow of water.

For further information or assistance, contact our Product Support at 800.468.1441

ATAS International, Inc.

Corporate Office - Allentown, PA 18106 www.atas.com (610.395.8445)

Sidewall Detail

1. Install ATA-Shield** along roof plane and up

sidewall.

2. Install channel trim; fasten into the substrate 12”

o.c.

3. Place panel into channel, fasten.

4. Apply soft cell closure tape in channel.

5. Install sidewall trim. Secure to the exterior wall.

6. Install wall treatment or counterflashing.

Note Regarding Trim Details

The application of flashing and trim requires a detailed approach. Consideration should be given to the roof’s geometry and course it creates for

water run-off. Location of gutters and the use of snow retention systems should also be considered. Proper planning regarding the sequence of

material overlap is critical. Sealants, such as butyl tapes and tripolymers, should be used at overlapping trim edges, in conjunction with exposed

fasteners, and to seal flashings. All fasteners should be properly tightened and not overdriven at an angle. Fasteners that are too loose can “back out”

over time. An overdriven fastener may cause a depression in the material, which becomes a collection point for standing water.

LRD0412 LAT230

Approriate
Fastener

Wall Treatment

HCA410
Sidewall Trim

HCA200
Channel Trim

Castle Top
Shingle

Blocking

ATA-Guard*

Trim Boards

Wood Substrate

1” Screw (Shown)

or 2” Screw Shank

Grommetted Nail
