ATAS Standing Seam Shingle - Manual

Panel
#1
Panel
#2
Panel
#3
Panel
#4
Panel
#8
Panel
#7
Panel
#14
Cut to
Fit
Panel
#15
Panel
#9
Panel
#5
Panel
#6
Panel
#10
Panel
#16
Panel
#17
Panel
#11
Panel
#18
Panel
#12
Panel
#19
Panel
#20
Panel #13
Cut to Fit
These edges
to fit into gable
utility cleat
First row
may vary to
obtain roof
symmetry
Clips
16” Nom.
5’-0”
Nom.
3’-0”
Nom.
Slope
See Gable
Detail on
Page 2
5'
3"
16"
NO
M.
3'
12" T
YP.
16"
NO
M.
3"
12" TYP.
Standing Seam Shingle Panels are available in
two sizes: 16" (nom.) wide by either 3' long (nom.
coverage) or 5' long (nom. coverage). Minimum
roof pitch is 4:12.

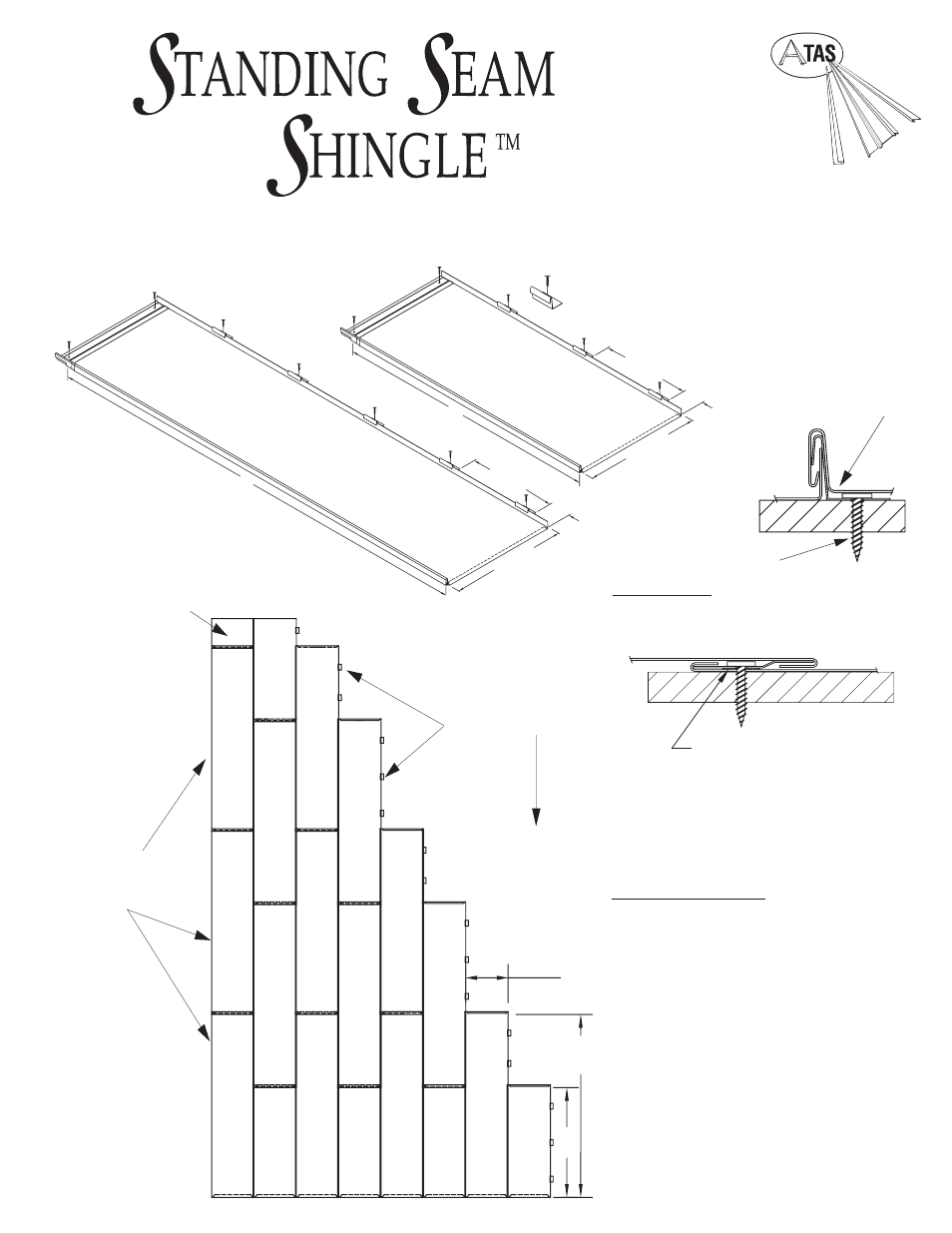

Panel Installation Details
Standing Seam Shingle is installed in a staggered
pattern, from eave to ridge, left to right. Start in
the bottom left corner of the roof plane with a 5'
panel. The pattern must stagger along eave line
with 5' and 3' panels. For panel sequence follow
numbered pattern to the left.
Panels are fastened to a solid substrate with side
clips spaced as shown and using a #10 screw.
Fasten at top of panel using two #10 screws per
panel through the factory mounted cleat.
Published panel width dimensions are to be considered
as nominal dimensions. Variations in overall coverage
may occur at installation due to typical manipulating of
panels during attachment to the roof assembly.
Installation Guide
Review and understand
complete guide before
beginning installation.
This guide has been prepared
as suggested details to
particular design conditions.
Each condition has certain
limitations to performance, aethetics
or economics. Professionals qualified to assess the
information regarding suitability for a specific project
should determine that the selection and installation
are made to their requirements. ATAS cannot assume
any responsibility for the actual selection and/or
installation of materials. The panels, flashings and trim
shown in this guide, illustrated over solid and plumb
substrate, assume that the structure has been
designed and prepared in accordance with local
building codes.
Side Seam Detail
Locate 3 clips along the nom. 37 7/8” long side and
5 clips along the 60 7/8” side - see above.
Clip Layout
Factory-Applied Sealant
Between Cleat and Panel at
Fastener Location(s).
Panel
#10 x 1” Screw
