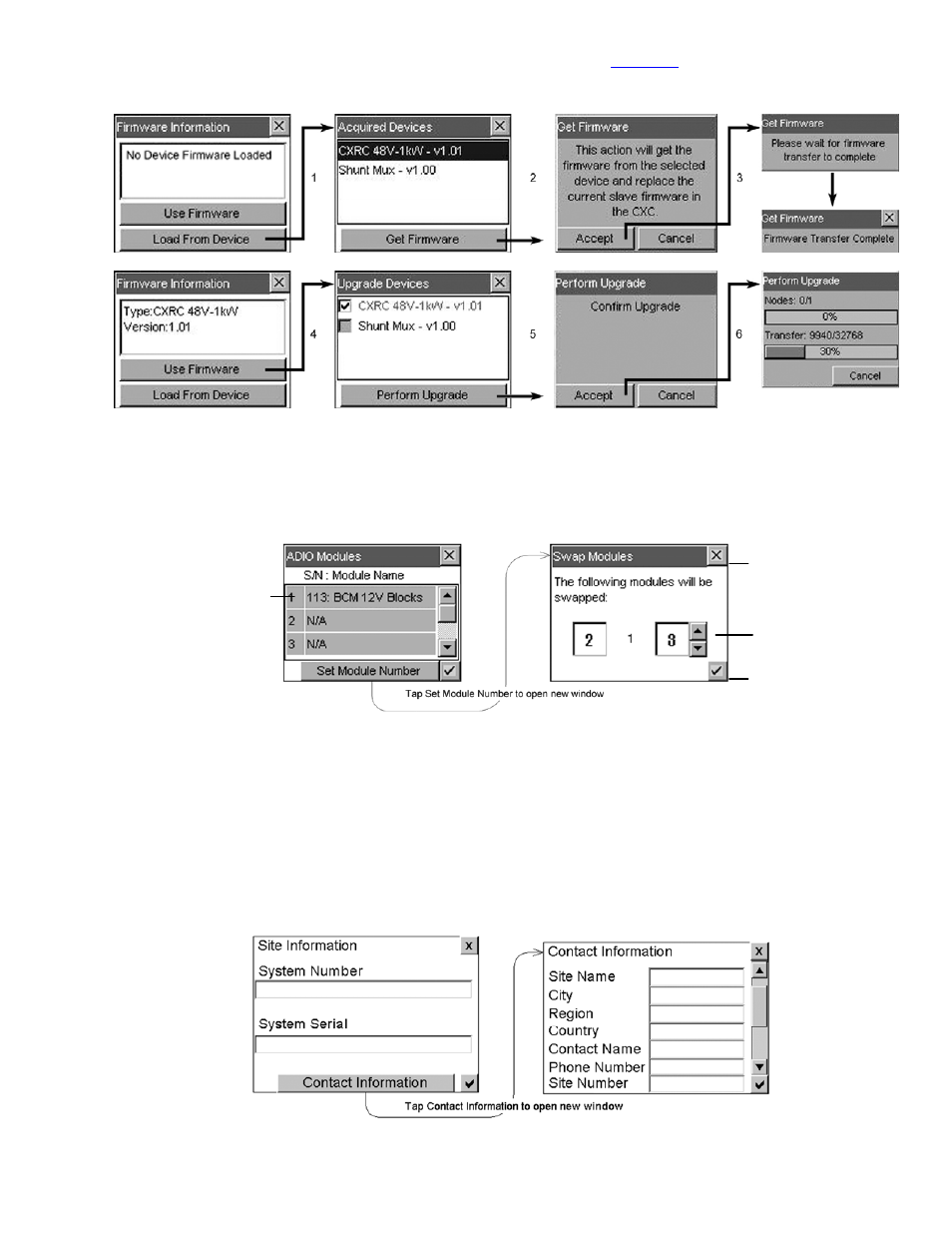

Figure 26–Firmware upgrade procedure

NOTE: Repeat the steps above choosing Shunt MUX as required.

6.1.3

Set ADIO Module Number

This menu item enables the Supervisor to select and map the order number in which CAN-enabled system
devices, such as Battery Cell Monitor (BCM), are to appear in the CXC menus; shown in the examples below:

Figure 27–ADIO Modules and Swap Modules windows

NOTE: When replacing ADIO modules, assign the new identical device with the same ADIO module number of the old

device. This is to preserve the functionality of any equations that use signals originating on the old device.

6.1.4

Site Information

6.1.4.1

System Number

This is where the power system number is displayed/edited.

6.1.4.2

System Serial

This is where the power system serial number is displayed/edited.

Figure 28–Site Information and Contact Information windows

Select module for mapping;

e.g. module 2

Discard changes and
return to previous screen

Accept changes and
return to previous screen

Tap arrows to
increase or decrease
value as required

The module number is
important when any of the
signals from an ADIO device
is used for custom signals or
data logging.
