7. The picture should appear, and sound should be audible. If not, ensure that all devices
are plugged in and receiving power. Check the cabling and make adjustments as
needed.
8. While watching the display, adjust the video level and peaking by using the rotary Level
and Peaking controls. See
“Front Panel Adjustments” .

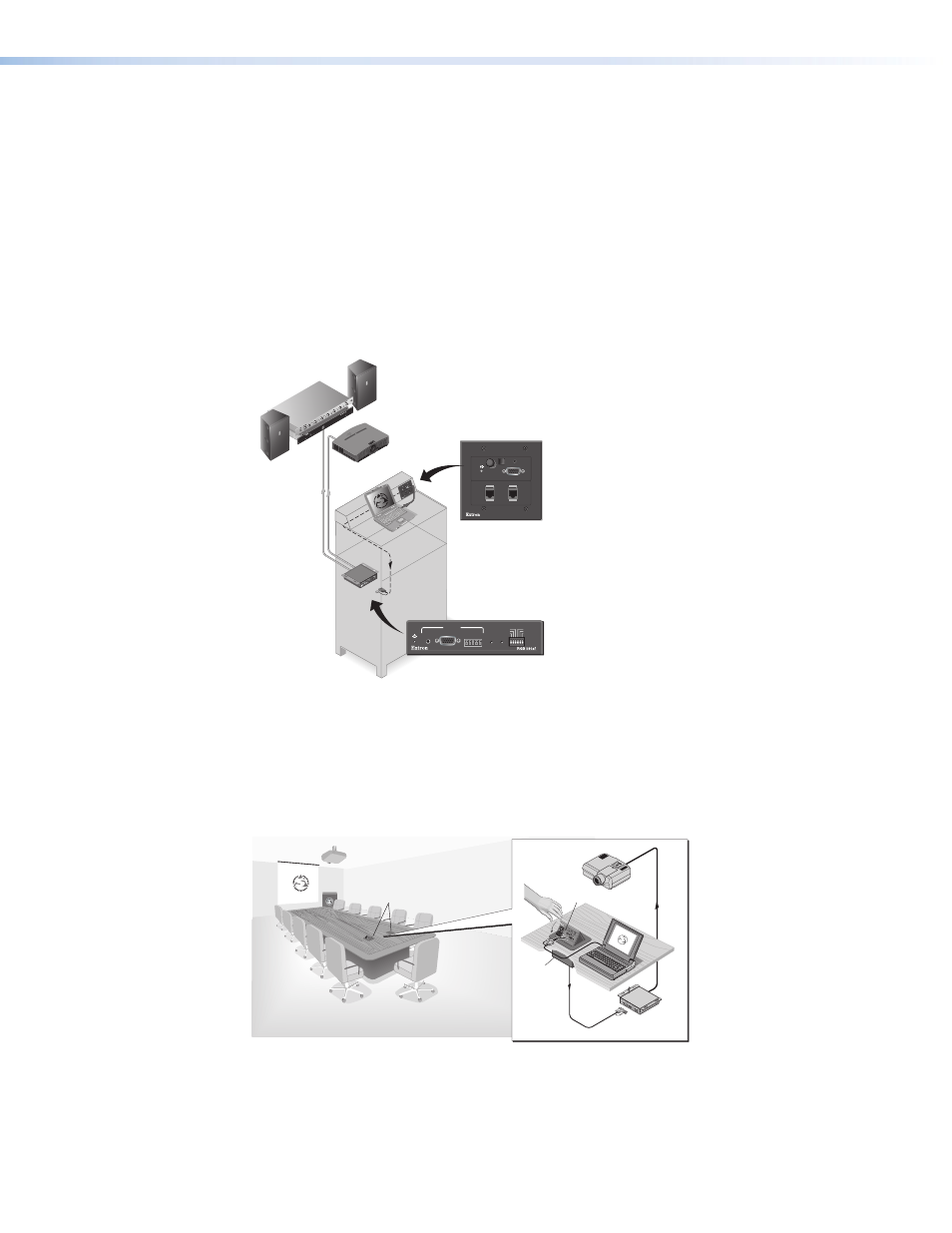

Application Diagrams
The RGB 580xi can be hidden from view and remotely connected to a computer through
various Extron AAP and Cable Cubby (CC) AAP devices that are installed in office furniture
or walls. Consult with your Extron sales representative concerning these AAP and CC AAP
devices and AAP-capable products from which devices may be installed.
OUTPUT
RG B 5 80x i CO NT RO L
AAP 102
H. SHIFT
COMPUTER INPUT SELECT
AUDIO
RGB 580xi SI AAP
AA P 1 02 H. S HIF T CO MP UT ER INP UT SE LE CT AU DIO
RG B 5 80 xi SI AA P
CONTROL
V-SYNC WIDTH
NEG SYNC
COMP SYNC INPUTS
ANALOG AUDIO
VIDEO LEVEL A B C D E
SOG SERR
DDSP
PEAKING
OU TP UT VID EO
LE VE L PE AK ING A B C D E SO G SE RR DD SP V-S YN C W IDT H NE G S YN C CO MP SY NC
INP UT S AN AL OG AU DIO
Extron
RGB 580xi
Remote Interface
Extron
RGB 580xi SI AAP
Mounted in the Extron AAP 102
Projector
Sound System
FR ON T P AN EL LO CK OU T RS -23 2 PR OT EC T CH 1 CH 2
AP A 7 54 AU DIO PO WE R A MP LIF IER
CL IP NO RM SIG NA L
Figure 1. Podium Mounting of the RGB 580xi with an AAP Device
Projector
HSA 400
RGB 580xi
Mounted under
a table or
podium
Mounted
through a table
or podium
SOG SER R DDS P V-SY NC W IDTH NEG SYN C COM P SY NC
INPU TS
RGB 580 xi
ANA LOG AUD IO CON TRO L VID EO OUT PUT LEV EL A B C D E PEA KIN G
HSA 400
H. SH IFT COMP UTER INPUT SELEC T AUD IO
600W MAX
PHO NE DATA RGB 580x i SI A AP
RGB 580xi SI AAP
Figure 2. Table Mounting of the RGB 580xi with an AAP Device
RGB 580xi • Installation and Operation 4
