Front Panel Features and Cabling
SOG
SERR
DDSP
V-SYNC WIDTH
NEG SYNC
COMP SYNC
INPUTS
RGB 580xi
ANALOG AUDIO CONTROL
VIDEO OUTPUT
LEVEL
A B C D E
PEAKING
1 2 3 5 4 7 6
RGB 580xi
Front Panel

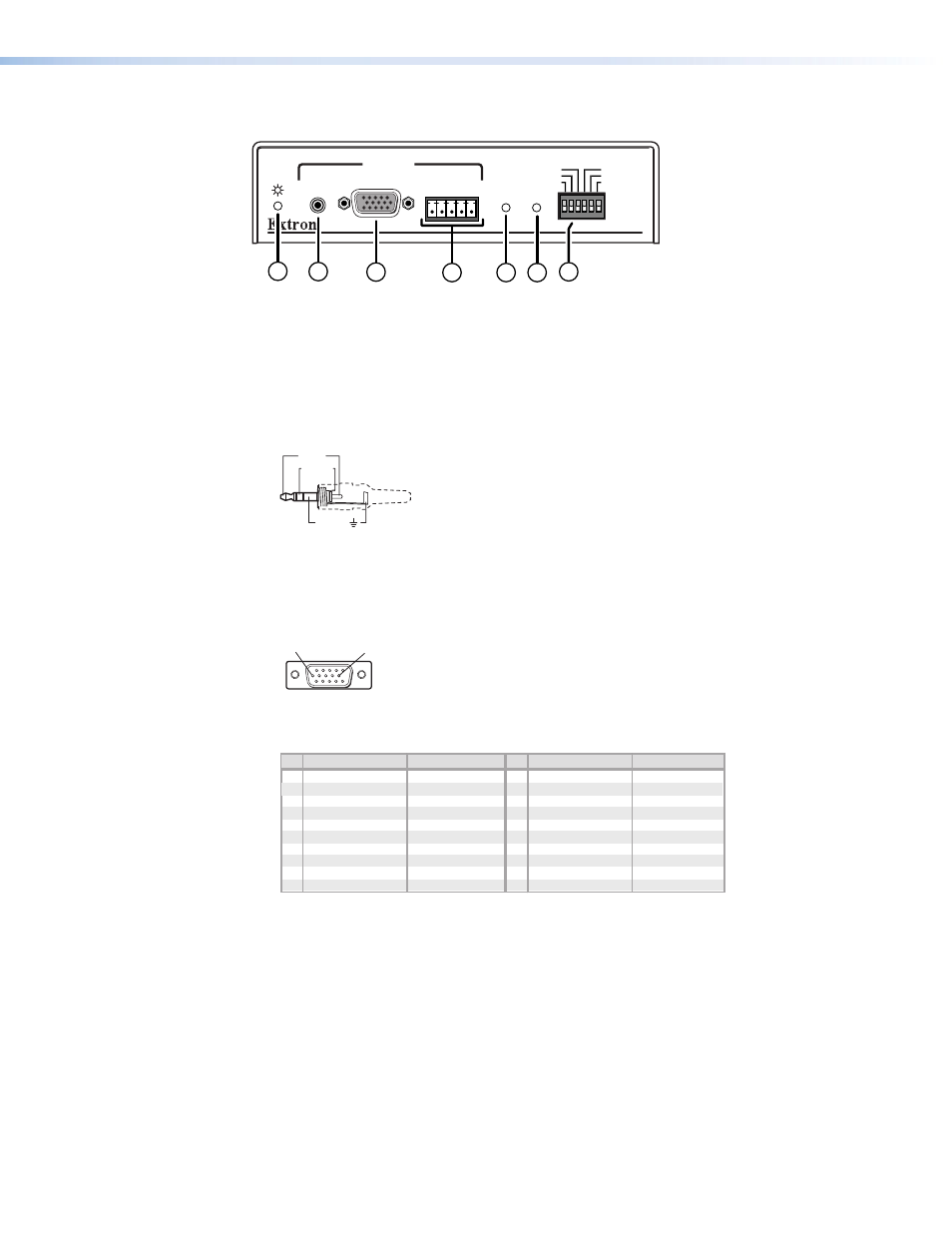

Figure 4. RGB 580xi Front Panel
a
Power/signal LED — This LED lights green to indicate that the RGB 580xi is receiving
power.
b
Audio input connector — Plug a 3.5 mm stereo plug into this jack for unbalanced
audio input. Wire the male plug as shown below.
Sleeve ( )
Ring (R)
Tip (L)
Figure 5. Audio Input Wiring
c
RGB video input connector — Attach a cable from the computer source to the
RGB 580xi via this 15-pin HD female connector. The 15-pin HD male connector pin
locations and pinout table are shown here.
15-pin HD Male Pin Locations
5 1
15 11
6 10
Pin Description Wire ID Pin Description Wire ID
15-pin HD male pin out table
1 red signal red coax
2 green signal green coax
3 blue signal blue coax
4 horizontal shift + green wire
5 horizontal shift
—
brown wire
6 red coax ground red coax shield
7 green coax ground green coax shield
8 blue coax ground blue coax shield
9 LED red orange wire
10 horizontal sync ground black coax shield
10 vertical sync ground yellow coax shield
10 audio ground black wire
10 LED ground yellow wire
10 shift ground grey wire
11 audio right red wire
12 audio left white wire
13 horizontal sync black coax
14 vertical sync yellow coax
15 LED green pink wire
d
Contact closure control connector — Connect an optional contact closure device
to this female 5-pole captive screw connector. Making contact closure between pins A
and B transmits a channel signal through the RS-232 port. Extron RGB 580xi I AAP and
RGB 580xi SI/CCSI AAP (see
“AAP Device Features” and “Cable Cubby AAP Device
Features” in this chapter) provide a one-button contact closure operation. Wire the
male connector as shown in the following diagram on the left. The Extron VGA and
control cable assembly (see
“Optional RGB 580xi AAP Replacement Cables” ) comes
with the male control connector prewired as shown in the following diagram on the
right.
RGB 580xi • Installation and Operation 6
