Mounting
This section discusses how to connect and configure the RGB 580xi. Topics that are covered,
include:
•
Under-furniture Mounting
•
Mounting the Optional AAP Device
•
Mounting Template
Under-furniture Mounting
1.
Attach the under-desk mounting brackets (part #70-077-01) to the interface with
the four machine screws (provided in the mounting kit), as shown below. This
procedure may also apply to table or podium mounting applications. See
Diagrams”
.
2.
Hold the interface with attached brackets against the underside of the desk or
other furniture. Mark the location of holes for screws on the desk. See
Template”
for mounting dimensions.
3.
Drill 1/4 inch (6.4 mm) deep, 3/32 inch (2.38 mm) diameter pilot holes in the table or
desk at the marked screw locations from the underside or inside (concealed side) of the
furniture, where the interface will be located.
4.
Insert the four wood screws into the pilot holes. Fasten each screw into the installation
surface until just less than 1/4 inch of the screw protrudes.
5.
Align the installed screws with the slots in the mounting brackets, and place the
interface against the surface, with the screws through the bracket slots.
6.
Slide the interface slightly forward or back, then tighten all four screws to fasten it in
place.

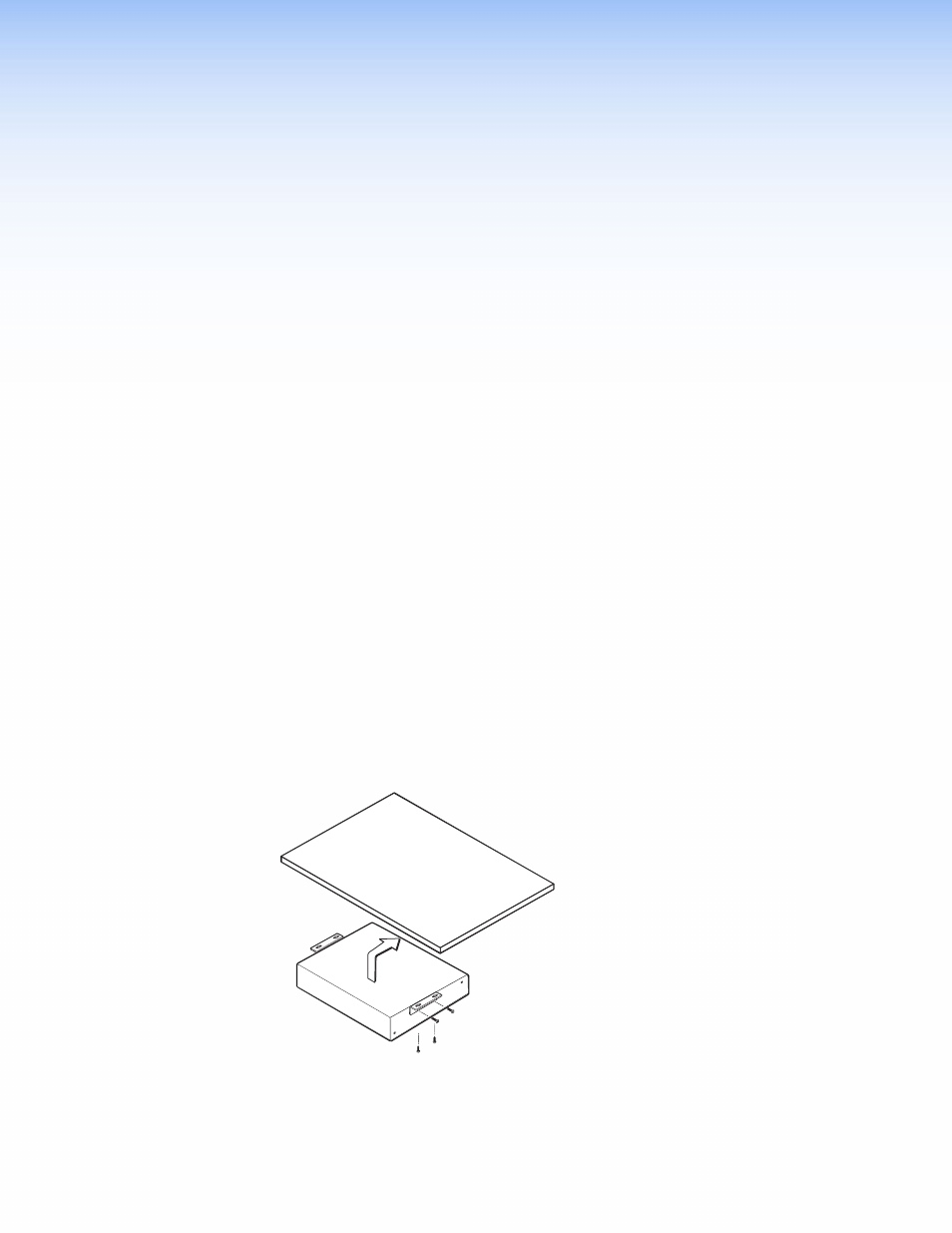

Figure 10.
Under-desk Mounting of the RGB 580xi
