AAP Device Features
COMPUTER IN
AUDIO IN
RGB 580xi
SHIFT
COMPUTER IN
SELECT AUDIO IN
RGB 580xi
SHIFT
COMPUTER IN
AUDIO IN
RGB 580xi
1 1
1 5 2
2
3
3 3
4
4
RGB 580xi AAP RGB 580xi S AAP
RGB 580xi SI AAP
2

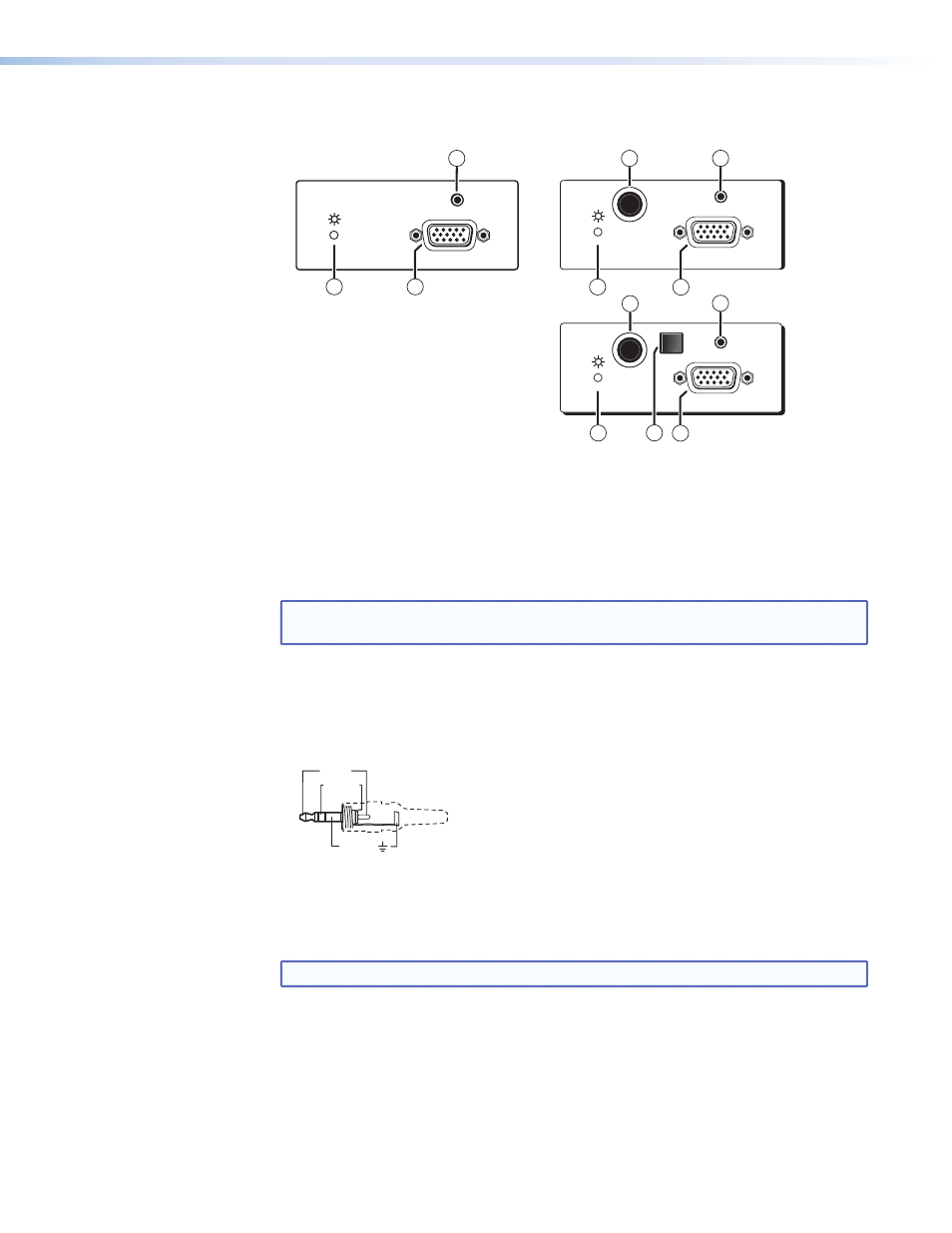

Figure 7. RGB 580xi AAP Front Panels
a
Power/signal LED — This LED lights
о red to indicate that the AAP device is receiving power.
о green to indicate that an active sync signal is present at the input and that the AAP
device is receiving power.
NOTE: The LED flashes green whenever the minimum and maximum limits of the
horizontal shift control (H. shift) have been reached.
b
RGB video input connector — Attach a cable from the computer source to this
15-pin HD female connector.
c
Audio input connector — Plug a 3.5 mm stereo plug into this jack for unbalanced
audio input. Wire the male plug as shown below.
Sleeve ( )
Ring (R)
Tip (L)
d
Horizontal shift control knob (Shift) — While viewing the displayed image, rotate
this control to move the image to the right or left on the screen. The power/signal LED
flashes green whenever the minimum and maximum limits of this control are reached.
NOTE: DDSP disables the horizontal shifting control.
e
Input select button — Pressing this button results in contact closure between pins A
and B of the contact closure control connector on the front panel of the RGB 580xi.
RGB 580xi • Installation and Operation 11
