Page 31

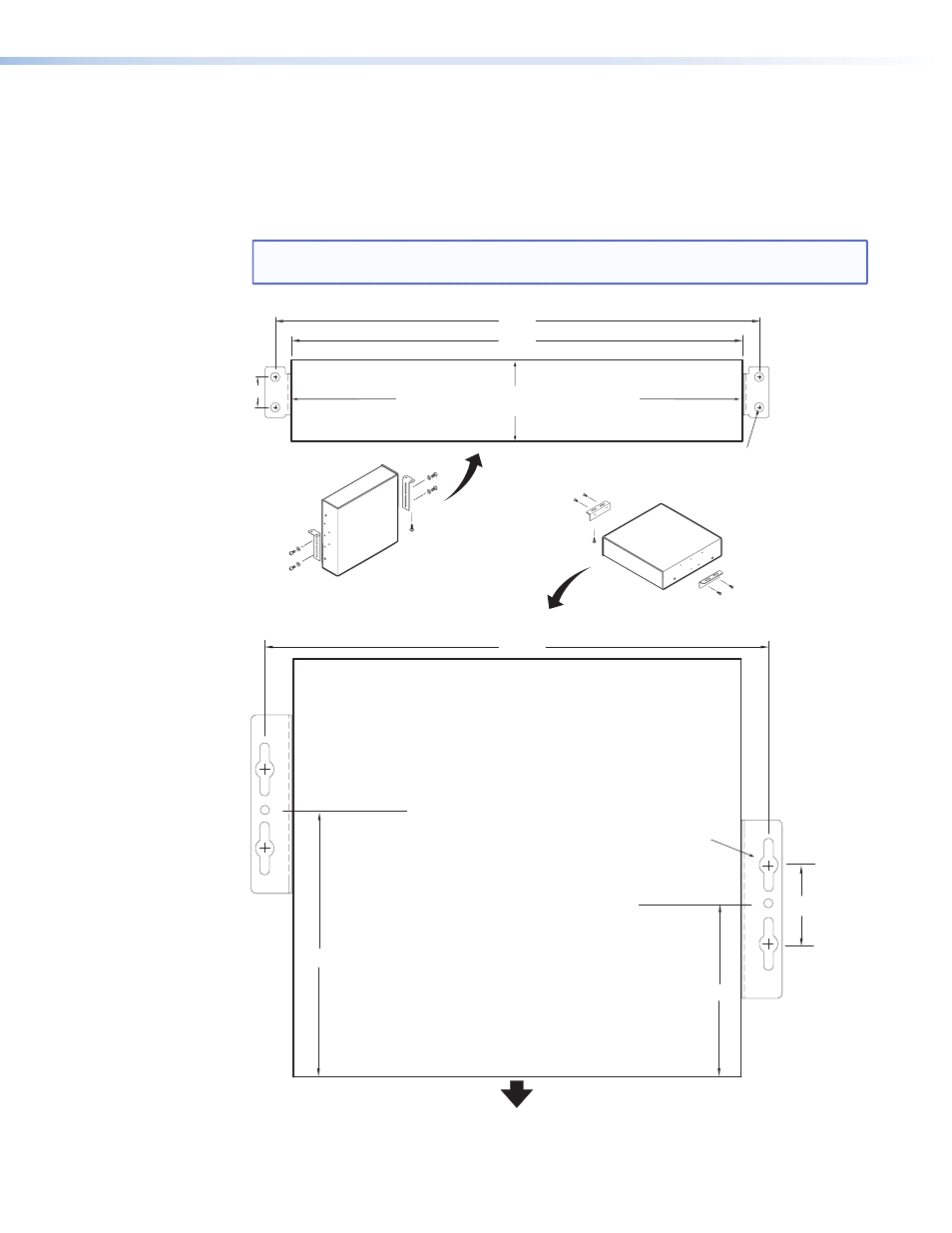

Mounting Template
Dimensions
For under-desk mounting, use the bracket mounting kit that is included with the RGB 580xi,
and see the template diagram below.
NOTE: These cables apply only to the RGB 580xi AAP, RGB 580xi S AAP, and RGB 580xi
SI AAP; they do not apply to the RGB 580xi CCS AAP or RGB 580xi CCSI AAP.
6.95
6.35
0.6
1.79” x 6.35” OPENING IN DESK
RGB 580xi
Mounting Bracket Templates
Through desk mounting template
Under desk mounting template
Recommended pilot drill hole size
for supplied screws = 3/32” x 1/4” deep.
NOTE: All dimensions are in inches.
Drawing not to scale.
FRONT
Recommended pilot drill hole size
for supplied screws = 3/32” x 1/4” deep.
7.1
1.45
2.35
3.6
(requires mounting
kit P/N 70-077-02)
(requires mounting
kit P/N 70-077-01)
Rear Location
Front Location
RGB 580xi • Mounting
27
