Page 30
Mounting the Optional AAP Device
Various Extron RGB 580xi AAP double-space devices may be mounted to any Extron product
that has an AAP faceplate, or to an Extron AAP wallplate. The AAP device should be cabled
before it is attached to a faceplate or wallplate (see
“Cabling the AAP Device Rear
Connectors”
). The screws needed for installing an AAP device are built into its front panel,
so no additional screws are needed.
1.
Insert the screws of the AAP through the holes in the AAP faceplate or the AAP
wallplate. Secure the AAP device to the faceplate or wallplate with the provided captive
washers and #4-40 nuts.
Cable
Cable
Clamp
RGB 580xi SI AAP
AAP 102
AAP 102
#4-40 Nut w/ Captive
Washer
RGB 580xi SI AAP
COMPUTER
AUDIO
H SHIFT
INPUT
SELECT

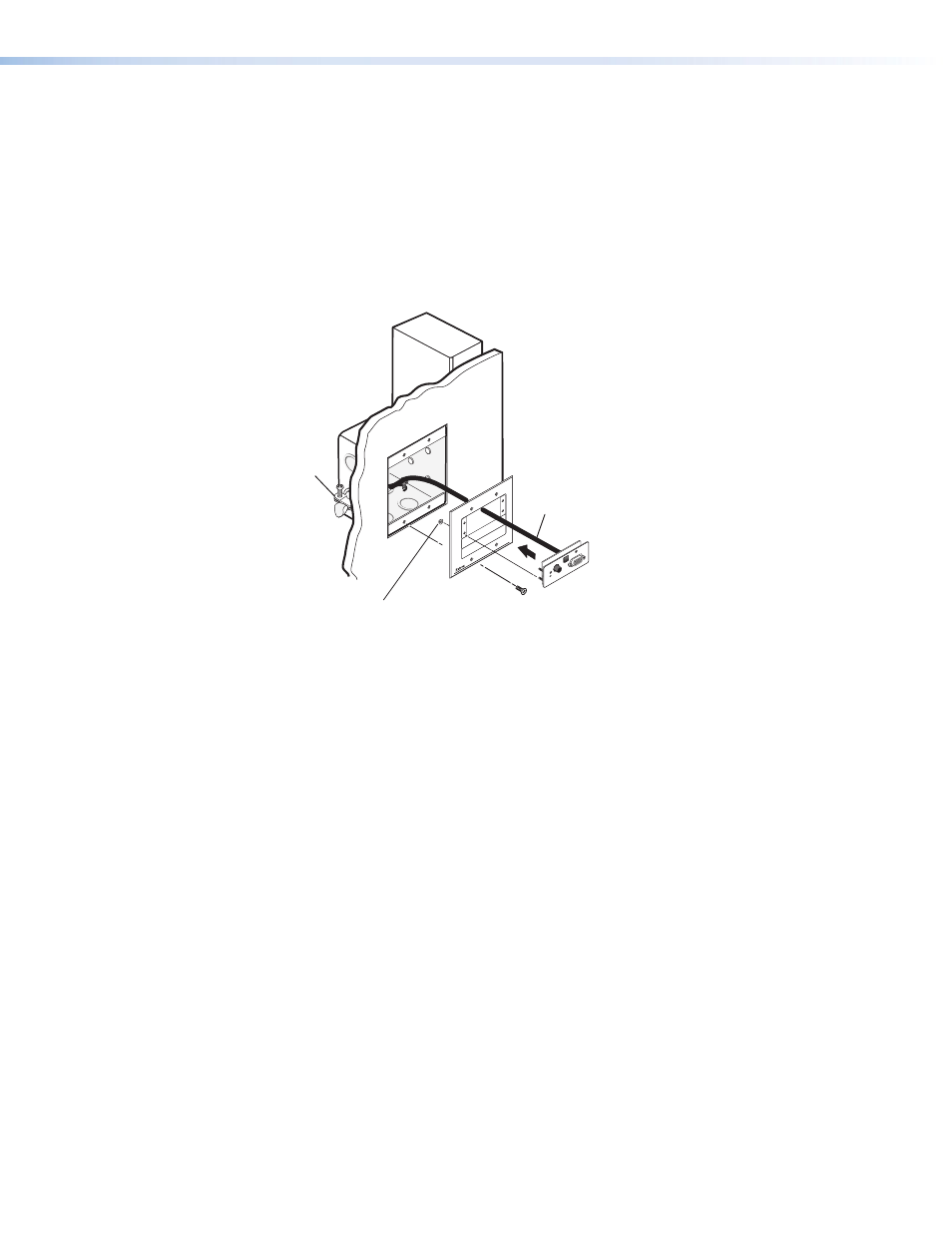

Figure 11.
Example of Mounting an AAP Device to a Wallplate
2.
Follow steps 3 through 8 in the
“Installation Overview”
section.
RGB 580xi • Mounting
26
