Cable Cubby AAP Device Features
INPUT
SELECT
HORIZONTAL
SHIFT
HORIZONTAL
SHIFT
2
1
2
3
1
RGB 580xi CCS AAP RGB 580xi CCSI AAP

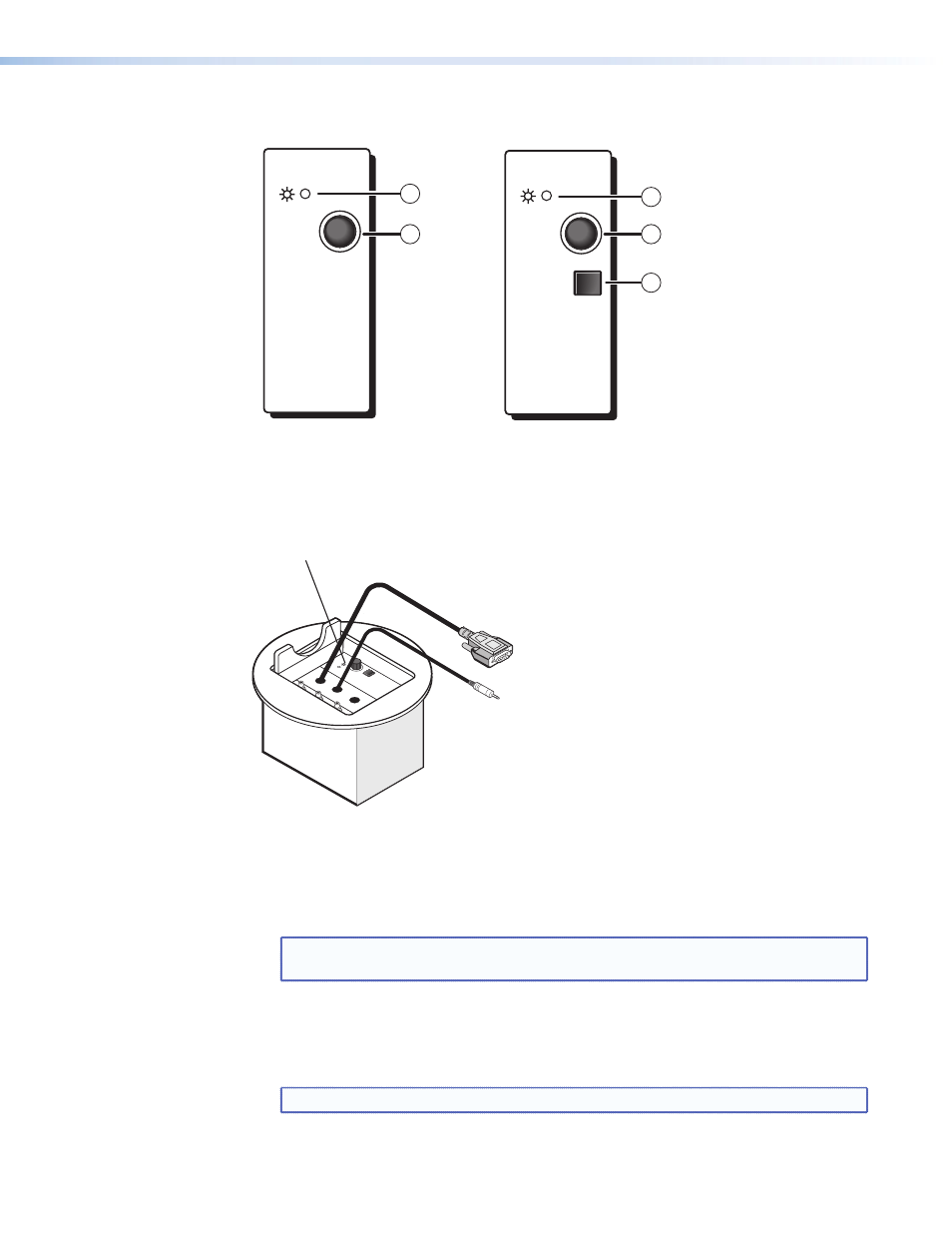

Figure 9. RGB 580xi AAP Front Panels
Installation of the RGB 580xi CC AAP devices in a Cable Cubby allows the VGA and audio
cable connectors of the CC AAP device to be accessible, as shown in the following diagram.
RGB 580xi CCSI AAP
Cable Cubby
CC AAP VGA connector
CC AAP Audio connector
INP UT
SE LE CT H. SH IFT
a
Power/signal LED — This LED lights
о red to indicate that the CC AAP device is receiving power.
о green to indicate that an active sync signal is present at the input and that the
CC AAP device is receiving power.
NOTE: The LED flashes green whenever the minimum and maximum limits of the
horizontal shift control (H. shift) have been reached.
b
Horizontal shift control knob — While viewing the displayed image, rotate this
control to move the image to the right or left on the screen. The power/signal LED
flashes green whenever the minimum and maximum limits of this control are reached.
NOTE: DDSP disables the horizontal shifting control.
RGB 580xi • Installation and Operation 13
