RECONFIG
When the RGB video input of the remote interface is disconnected or the horizontal shift
control (H. shift) is adjusted from the AAP device (RGB 580xi S/CCS AAP and RGB 580xi
SI/CCSI AAP), the interface sends the reconfiguration message. No response is required from
the RS-232 host, but the host may request a new status listing via the request information
command (I/i). See the command/response table in this chapter for details.
Chn
A contact closure selection has been detected from the remote AAP contact closure switch
(RGB 580xi I AAP and RGB 580xi SI/CCSI AAP).
Error Responses
When the interface receives a valid SIS command, it executes the command and sends a
response to the host device. If the interface is unable to execute the command because the
command is invalid or it contains invalid parameters, it returns an error response to the host.
The error response codes and their descriptions are as follows:
E10 – Invalid command
E13 – Invalid value (the number is out of range)
Using the Command/Response Table
The command/response table lists valid command ASCII codes, the responses from the
interface to the host, and a description of the command or the results of executing the
command. Lowercase characters are acceptable in the command field only where indicated.

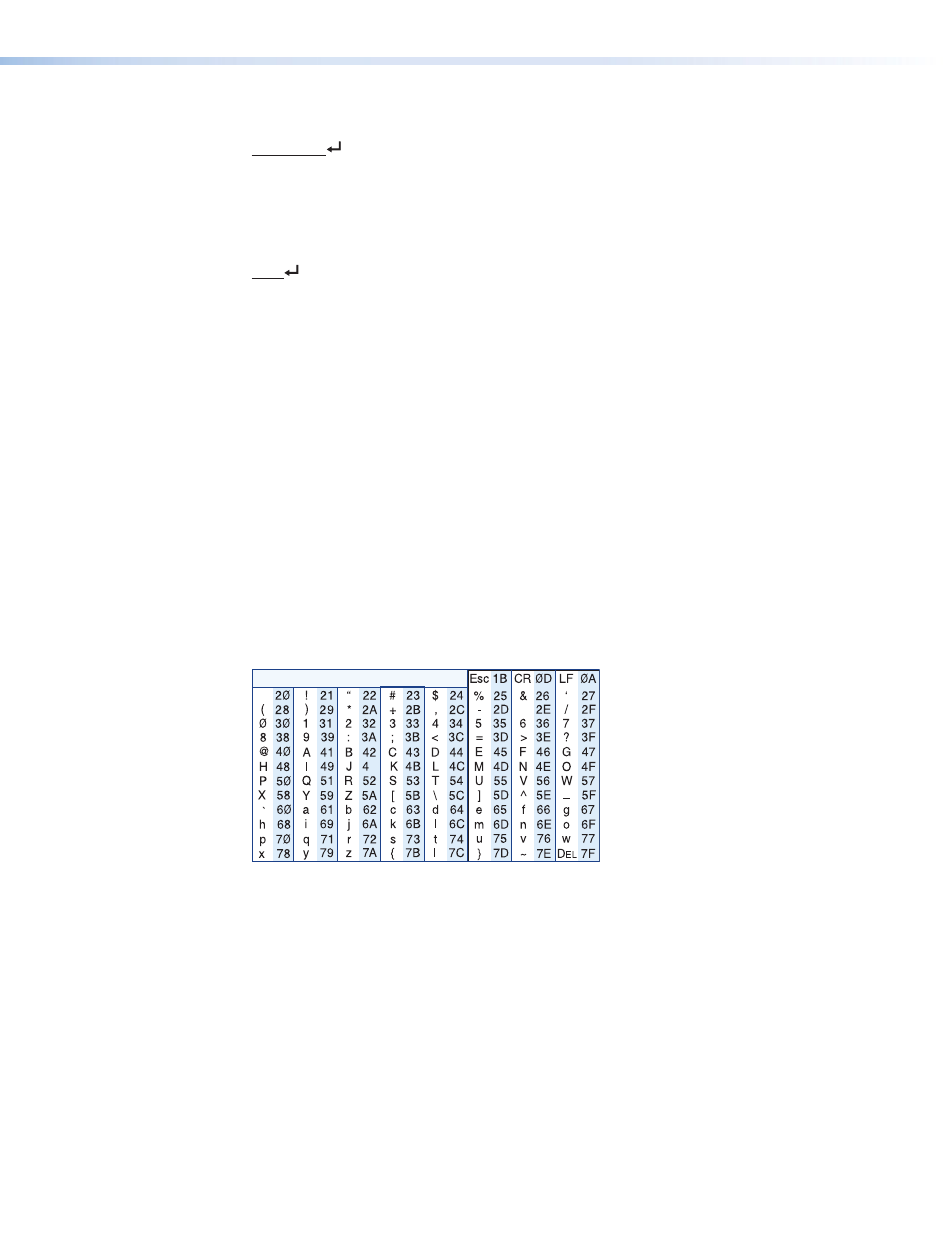

The ASCII to HEX conversion table below is for use with the command/response table.
•
ASCII to HEX Conversion Table
Space
