RGB 460 Series • Introduction 2
Features
• Horizontal shifting control — The displayed image may be shifted to the left or right
by turning a front panel knob.
• Advanced Digital Sync Processing (ADSP™) — ADSP allows sync processing
operations, such as horizontal centering, to occur without affecting the sync timing of
the signal. This allows horizontal centering to be applied to signals that are output to
digital display devices such as LCD projectors, DLP projectors and plasma displays. An
internal DIP switch provides another option, Digital Display Sync Processing, (DDSP™), to
ensure proper displays without altering sync pulse timing or width.
• Stereo audio — Unbalanced stereo audio inputs can be output as balanced or
unbalanced unamplified stereo audio.

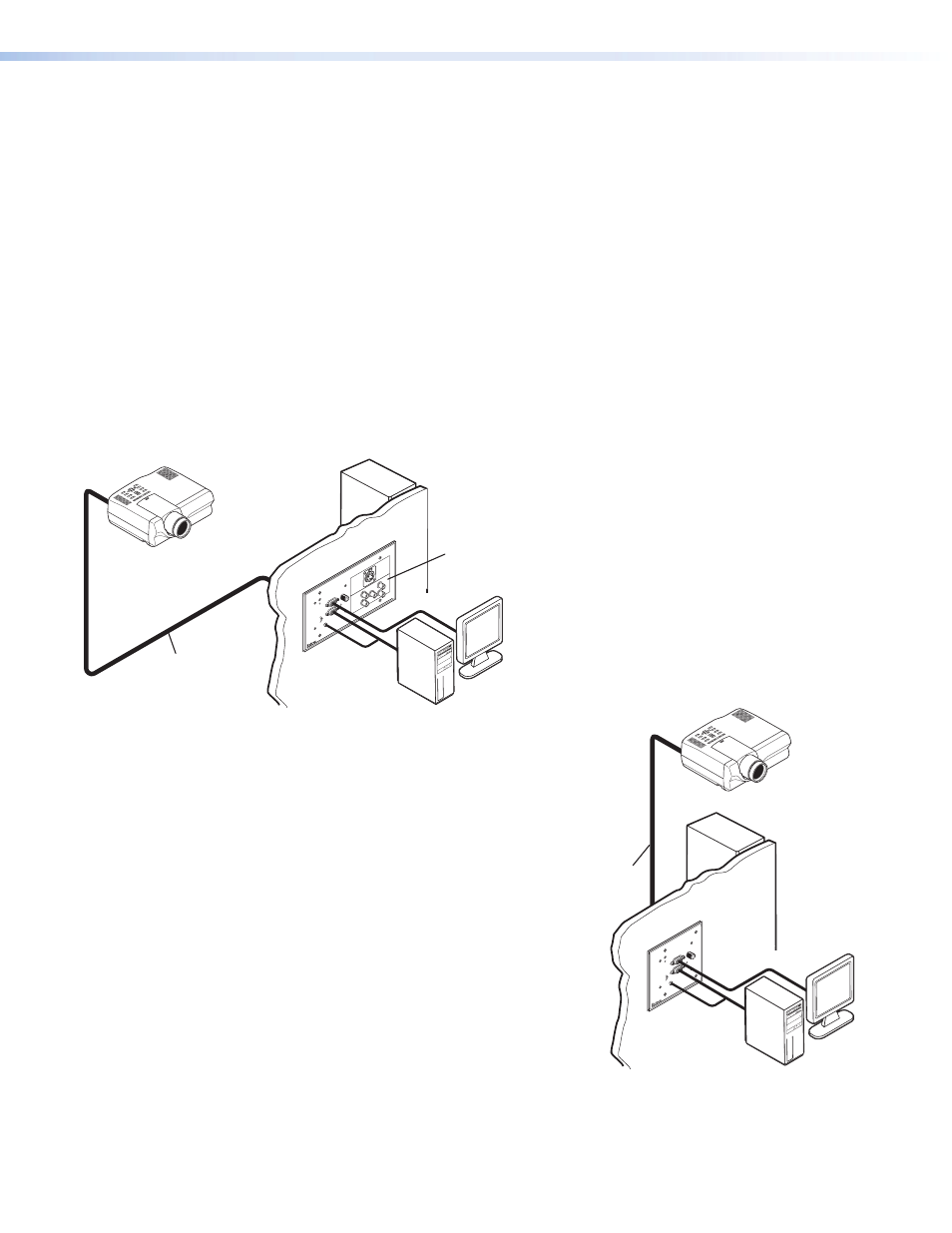

Application Examples
Projector
Installation Cable
SVGA Compatible
Computer w/ Audio
AAPs
Extron
RGB 468xi
INPUT
MONITOR
H. SHIFT
AUDIO
MIN/MA X
RGB 468
WITH ADS
P TM
MONI TOR
NO M ONITO R
Projector
Installation Cable
SVGA Compatible
Computer w/ Audio
Extron
RGB 460xi
INPUT
MONITOR
H. SHIFT
AUDIO
MIN/MAX
RGB 460
WITH ADSP
TM MONITOR
NO MONITOR
Figure 1. RGB 460 Series Application Examples
