RGB 460 Series • Installation and Operation 5
a
Faceplate screws — These screws secure the faceplate to the rest of the interface.
CAUTION: Do not remove these faceplate screws while the interface is attached
to the wall or the detached interface may fall down inside the wall.
b
Power and signal LED — This LED lights:
• Yellow to indicate the interface is receiving power.
• Green to indicate the interface is receiving power and that an active sync
signal is present at the input.
NOTE: If the input signal has sync on green, the LED will not change from
yellow to green.
c
Monitor switch (video input termination) — Select one of the following video input
impedance selections to provide the best picture:
• No Monitor
(75 ohms) If a local monitor is not connected or if the picture is too
bright or blooming (unterminated).
• Monitor
(high impedance) If a local monitor is connected, a laptop breakout cable is
used, or if the picture is too dark.
d

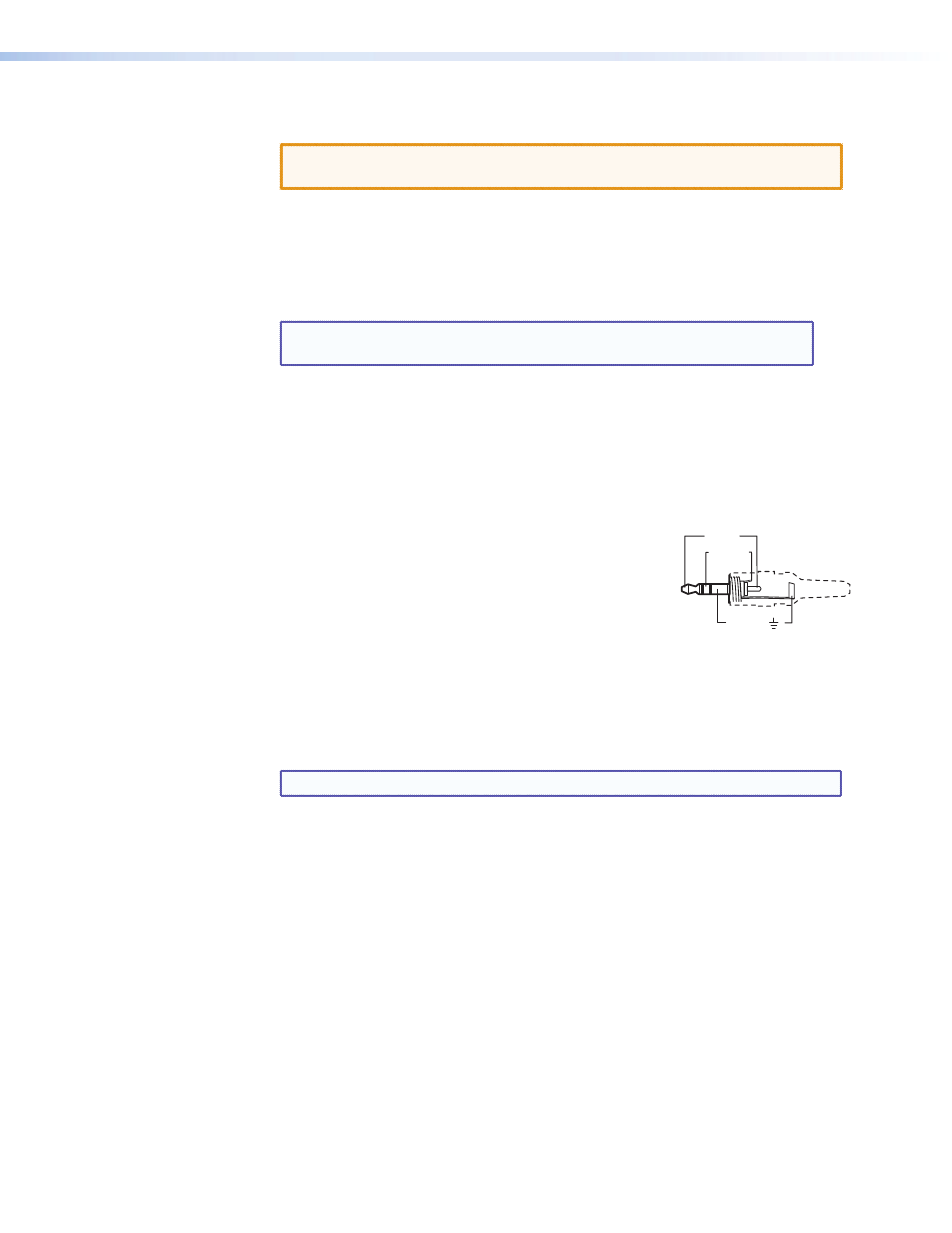

Audio input connector — Plug a 3.5 mm stereo plug
into this jack for unbalanced audio input. Wire the
male plug as shown on the right.
e
Computer input connector — Attach a cable from
the computer to the interface via this female 15-pin HD
connector.
f
Buffered local monitor output connector — Attach
a cable from a local monitor to this female 15-pin HD connector.
g
Horizontal shift control knob (H. Shift) — While viewing the displayed image, rotate
this control to move the image to the right or left on the screen. The Min/Max LED ( h )
flashes red whenever the minimum or maximum limit of this control is reached.
NOTE: When active, DDSP disables the horizontal shifting control.
h
Min or Max LED — This LED blinks red momentarily whenever the minimum or
maximum limits of the horizontal shift control ( g ) have been reached. Turning the
horizontal shift control knob in the same direction after the limit has been reached
causes the LED to continually blink.
i
Composite video connector (RGB 464xi) — This female RCA-to-BNC type connector
provides pass-through capability for composite video input.
j
S-video pass-through connector (RGB 464xi ) — Connect an S-video source to this
4-pin mini DIN pass-through connector.
Tip (+)
Sleeve ( )
Sleeve ( )
Ring (-)
Tip (+)
Audio Plugs.eps
RCA Connector
3.5 mm Stereo Plug Connector
(balanced)
Sleeve ( )
Ring (R)
Tip (L)
3.5 mm Stereo Plug Connector
(unbalanced)
