RGB 460 Series • Installation and Operation 11
Mounting Adapter Plates (AAPs or MAAPs)
All AAPs and MAAPs should be mounted before the interface is installed in a wall or
furniture. Each AAP has standoffs (screws built into the rear panel) and nuts, which can
be used to secure the AAP to the interface. MAAPs are mounted from the front using hex
screws.
1. Insert the AAP or MAAP standoffs into the screw holes in the interface.
2. Using the provided #4-40 nuts (standard AAPs) or the provided #4-40 hex screws
(MAAPs), secure the AAP or MAAP to the interface.
#4-40 Nut w/ Captive
Washer
AAP Module
(not included)
Mounting Screws
H. SHIFT
MIN/MAX
TM
RGB 468xi
INPUT
MONITOR
AUDIO
RGB 468
WITH ADSP
MONITOR
NO MONITOR
or
H. SHIFT
MIN /MAX
RGB 468 Mxi
INPU T
MONI TOR
AUDIO
RGB 468
WIT H ADSP
MONITOR
NO MONITOR
TM
#4 - 40
Hex Screws
MAAP Module
(not included)
Mounting Screws

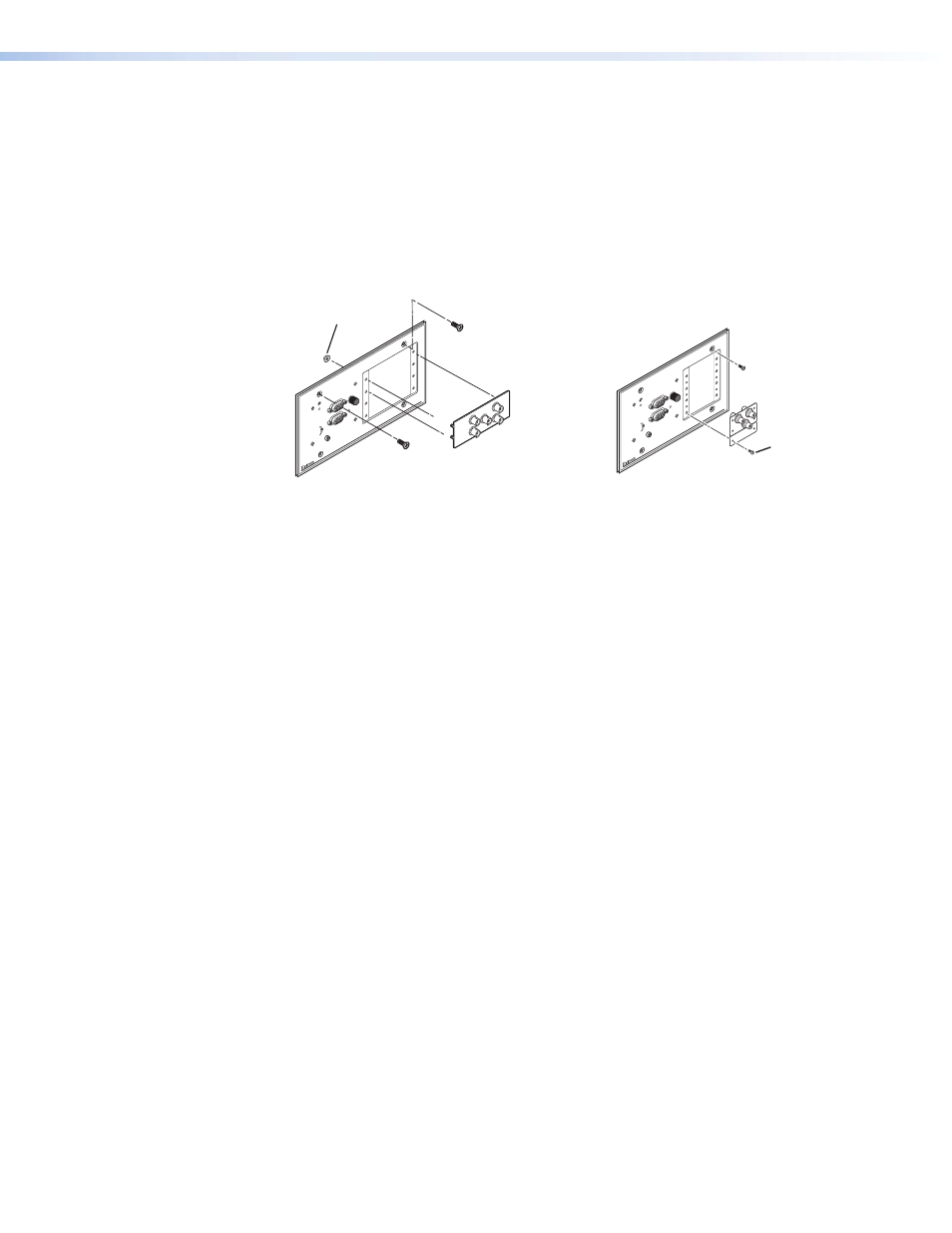

Figure 8. Mounting an Adapter Plate
3. Repeat steps 1 and 2 to mount other AAPs or MAAPs. Cover any openings in the
interface with blank AAP or MAAP plates.
4. Be sure to include the AAP and MAAP connectors as part of the installation pretest
before final installation of the interface.
For additional information about interface installation, refer to the appropriate installation
guide available on the Website at
www.extron.com .
