RGB 460 Series • Reference Information 18
AAP and MAAP Modules
A variety of Architectural Adapter Plates (AAPs) and Mini Architectural Adapter
Plates (MAAPs) for pass-through connections are available for the RGB 468xi and
RGB 468 Mxi interfaces.
The RGB 468xi can accommodate up to four single-space AAPs (up to three with the
RGB 468xi AKM UK), and the RGB 468 Mxi can accommodate up to four single-space
MAAPs.
Both single- and double-space AAPs and MAAPs, and AAP and MAAP blanks are available.
Refer to the current Extron catalog or Website for a complete listing.
Two BNC
Blank Plate (no connector)
Single Space
Two RCA to Solder Cups
Three RCA to Solder Cups
Two S-video
Three BNC
Two RJ-11
Blank Plate (no connector)
One 9-pin D Gender Changer
Five BNC (Double)
Double Space

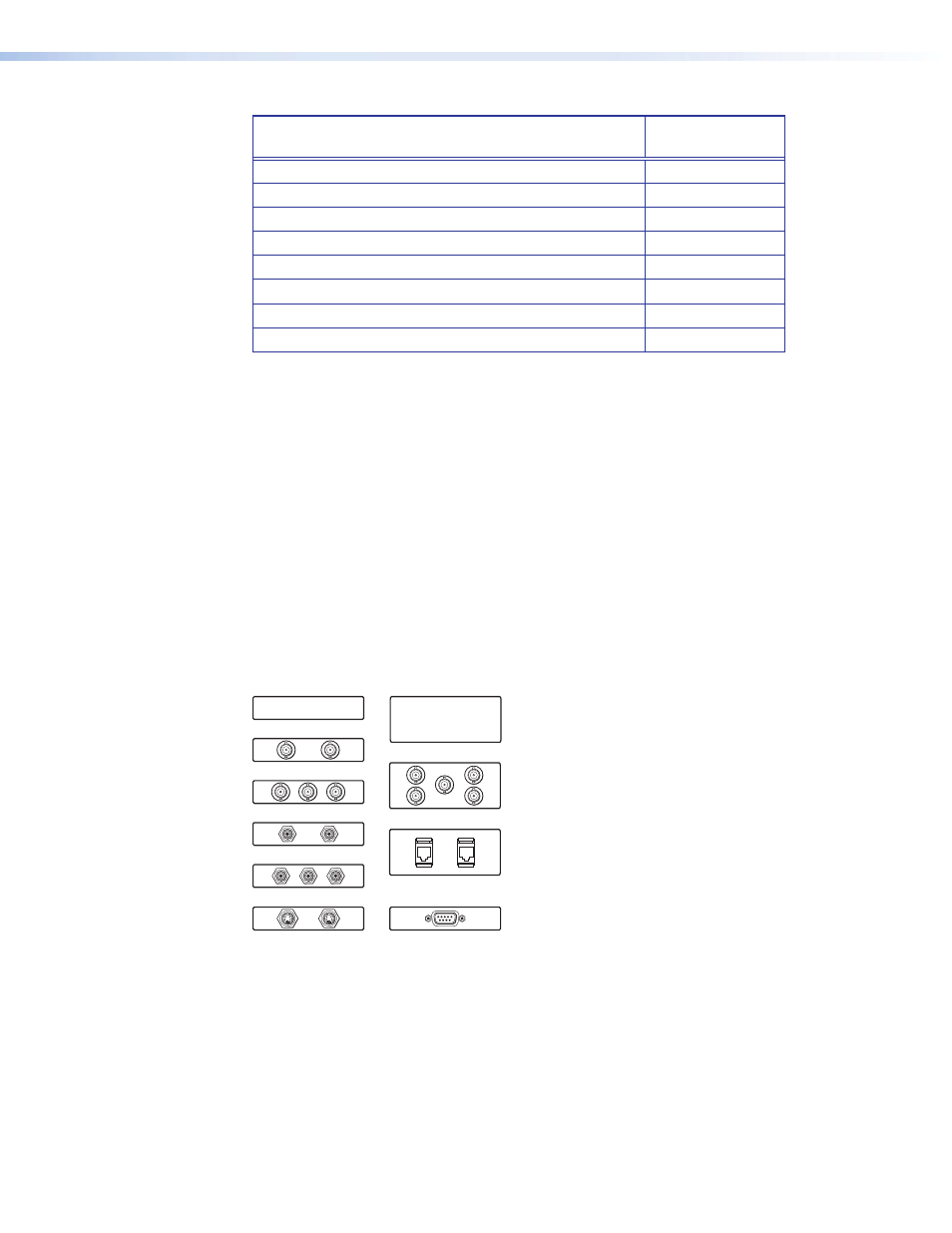

Figure 9. Sample Architectural Adapter Plates
BNC Series Mini High Resolution Cables
(plenum) Part number
MHR-5P BNC/3, 3 feet (90 cm) 26-378-01
MHR-5P BNC/6, 6 feet (1.8 m) 26-378-02
MHR-5P BNC/12, 12 feet (3.6 m) 26-378-03
MHR-5P BNC/25, 25 feet (7.6 m) 26-378-04
MHR-5P BNC/35, 35 feet (10.6 m) 26-378-12
MHR-5P BNC/50, 50 feet (15.2 m) 26-378-05
MHR-5P BNC/75, 75 feet (22.8 m) 26-378-06
MHR-5P BNC/100, 100 feet (30.4 m) 26-378-07
