RGB 460 Series • Installation and Operation
10
e
Audio output connector — Insert wires into and tighten the screws on this 3.5 mm,
5-pole, direct insertion captive screw connector for unbalanced or balanced audio
output. Wire the connector as shown here.
CAUTION: For
unbalanced stereo output, connect the sleeves to the ground
contact.
DO NOT connect the sleeves to the negative (–) contacts.
Balanced
Stereo Output
Do not tin the wires!
Tip
Ring
Sleeve (s)
Tip
Ring
RL
Tip
NO GROUND HERE
Sleeve (s)
Tip
RL
NO GROUND HERE
Unbalanced
Stereo Output

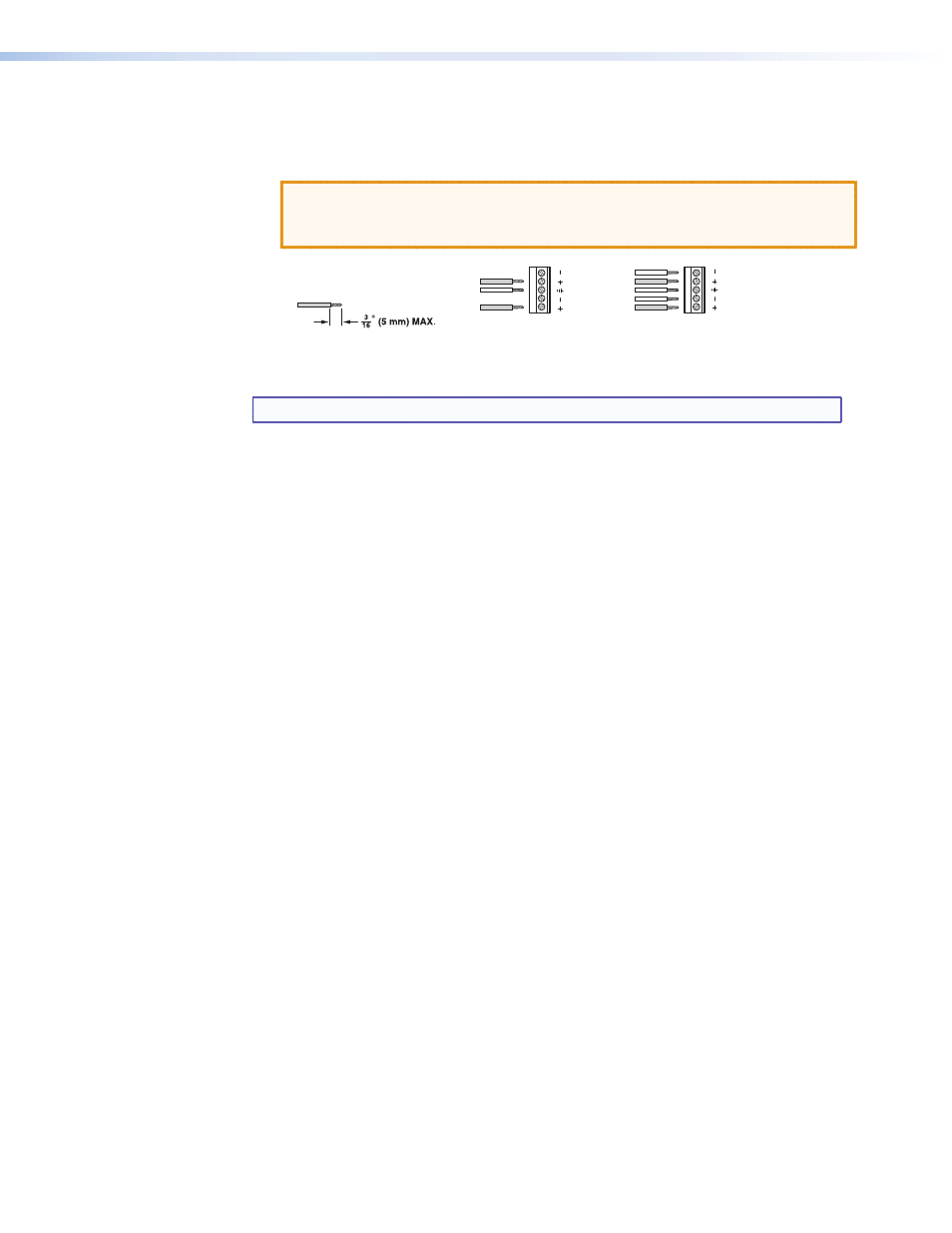

Figure 7.
Audio Output Wiring
NOTE: The following items
f
,
g
,
h
, and
i
are features of the 464xi interface only.
f
Composite video pass-through BNC connector — A male BNC connector attaches
here.
g
S-video pass-through 4-pin mini DIN connector — A male 4-pin mini DIN connector
attaches here.
h
Balanced active audio output connector — Insert wires into and tighten the screws
on this 3.5 mm, 5-pole, direct insertion captive screw connector for balanced active
audio output. Wire the connector as shown above.
i
Network pass-through RJ-45 connector — If this connector is not required, a blank
cover is supplied to fill the opening.
Euro Channel and Floor Box Versions
The RGB 460xi and RGB 468xi are available in Euro Channel (EC) versions, the RGB 460xi is
available in two floor box models (MK and FSR), and the RGB 468xi AKM UK is designed for
Ackermann floor boxes, see
The front and rear panel features, cabling requirements, and testing/troubleshooting
procedures are identical to the descriptions shown in this section for the wall box models.
For installation instructions, see the RGB 460xi Series installation guide that addresses the
specific requirements.
