UL Guidelines
To comply with Underwriters Laboratories (UL) safety requirements, the following minimum
guidelines must be followed:
•
The interface must not be used beyond its rated voltage range.
•
The interface must be installed in a UL Listed junction box.
•
The interface must be installed with conduit in accordance with the National Electrical
Code.
Front Panel Features and Cabling
CAUTION: Do not remove the faceplate screws, (
a
), while the interface is attached
or the detached interface may fall down inside the wall or mounting.
NOTE: The RGB 468 Mxi (not pictured) is
functionally identical to the RGB 468xi (at
left) except that it fits in a 3-gang box and
provides four mini-AAPs (MAAPs).
RGB 460xi
INPUT
MONITOR
H. SHIFT
MIN/MAX
AUDIO
NO MONITOR
MONITOR
3
4
5
1
2
6
7
8
RGB 460
xi
1
1
1
RGB 464xi
INPUT
MONITOR
H. SHIFT
MIN/MAX
AUDIO
VIDEO
S-VIDEO
AUDIO
L/MONO
R
NO MONITOR
MONITOR
RGB 464
xi
1
2
3
4
5
7
8
10
11
12
13
6
9
1
1
1
RGB 468xi
INPUT
MONITOR
H. SHIFT
MIN/MAX
AUDIO
NO MONITOR
MONITOR
1
6
7
14
RGB 468
xi
1
2
3
1
4
5
8
1
RGB 468xi AKM UK
H. SHIFT
MIN/MAX
PC AUDIO
INPUT
MONITOR
NO
MONITOR
MONITOR
RGB 468
xi
AKM UK
3
4
5
6
7
8
14
1
1
1
1
2

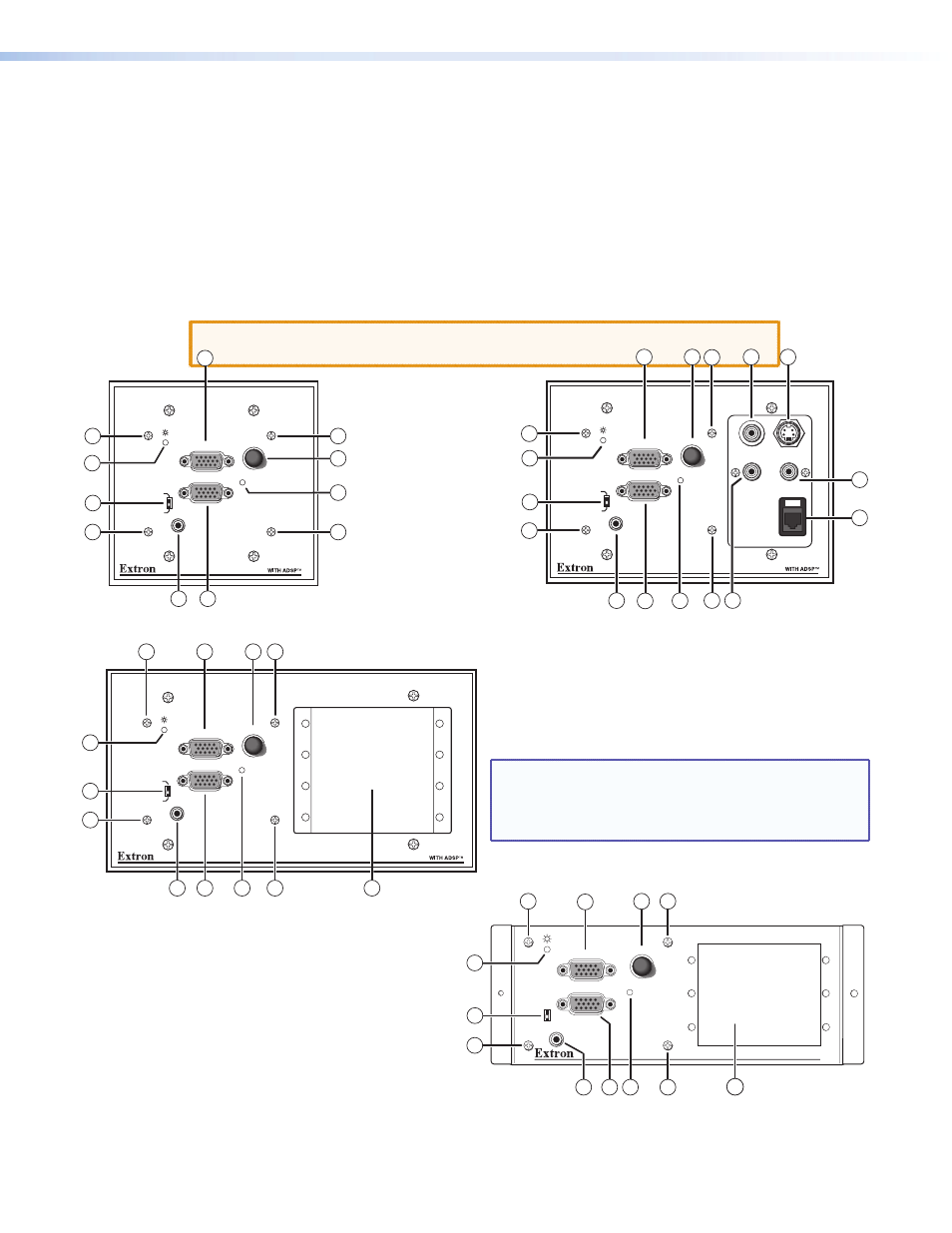

Figure 2.
RGB 460 Series Front Panel Features
