Software configuration, cont’d – Extron Electronics PVS 305SA User Guide User Manual
Page 45
5-5
PVS 305SA Switcher • Software Configuration
Software Configuration, cont’d

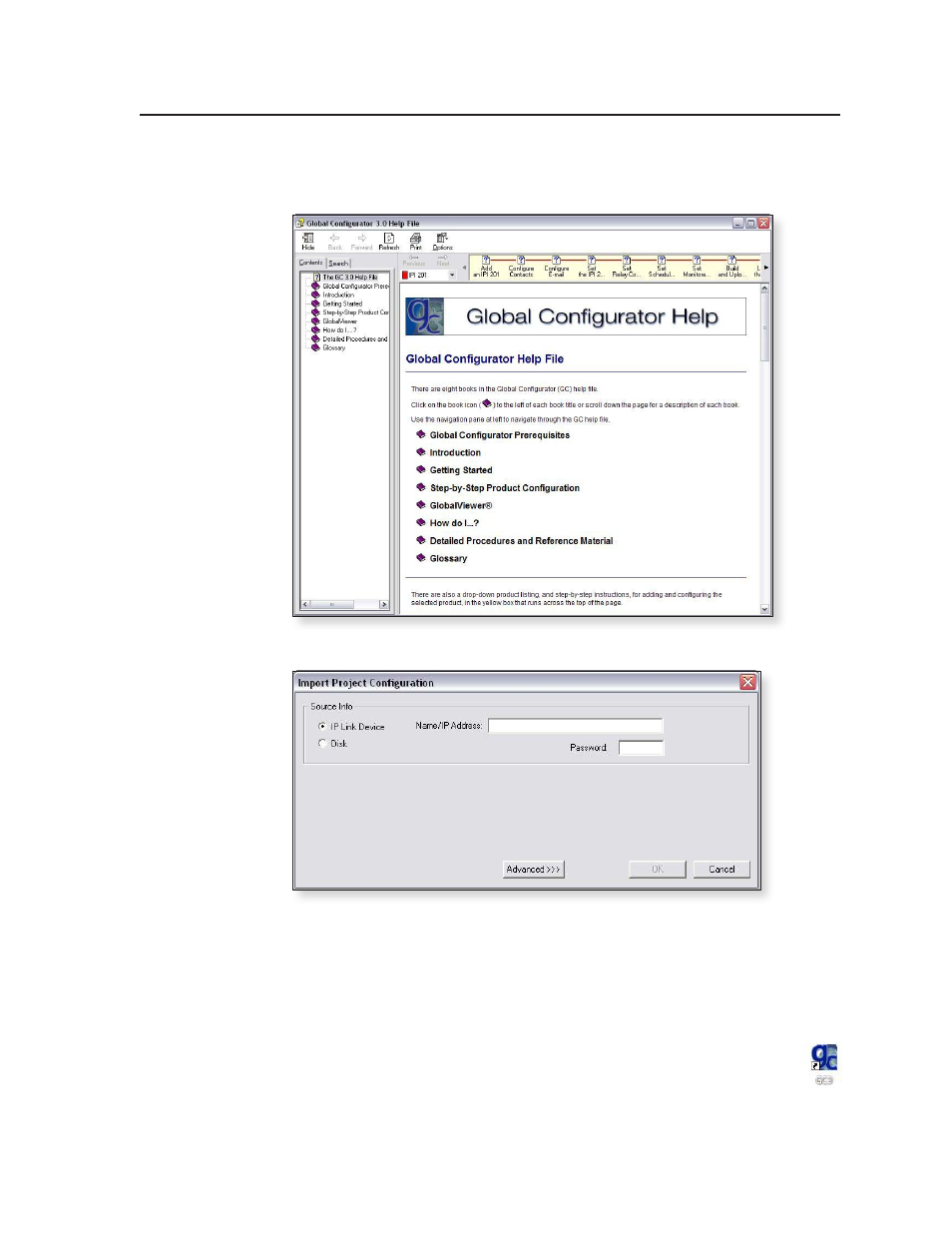

If “View Global Configurator Help File” is selected
, a new window opens
showing the Help file. Select the relevant book from the contents list and follow the
instructions to use the Global Configurator.
If “Import Project Configuration” is selected
, either enter the IP address/name of
the IP device, or select disk, and browse to the stored existing configuration file.
For full details on configuring and operating the MLC 104 IP Plus, refer to the
MLC 104 IP Plus Setup Guide
and the MLC 104 Plus Series Reference Manual, both
From the website
To install Global Configurator on a LAN connected PC, follow steps 1 to 5 (on
pages 5-2 and 5-3) for downloading the MLS Configuration Program, but selecting
the Global Configurator at step
3.
Once the program is installed, click on the desktop icon to open the program
and select the desired start option. Click OK. Follow the details as described
on page 5-4.
