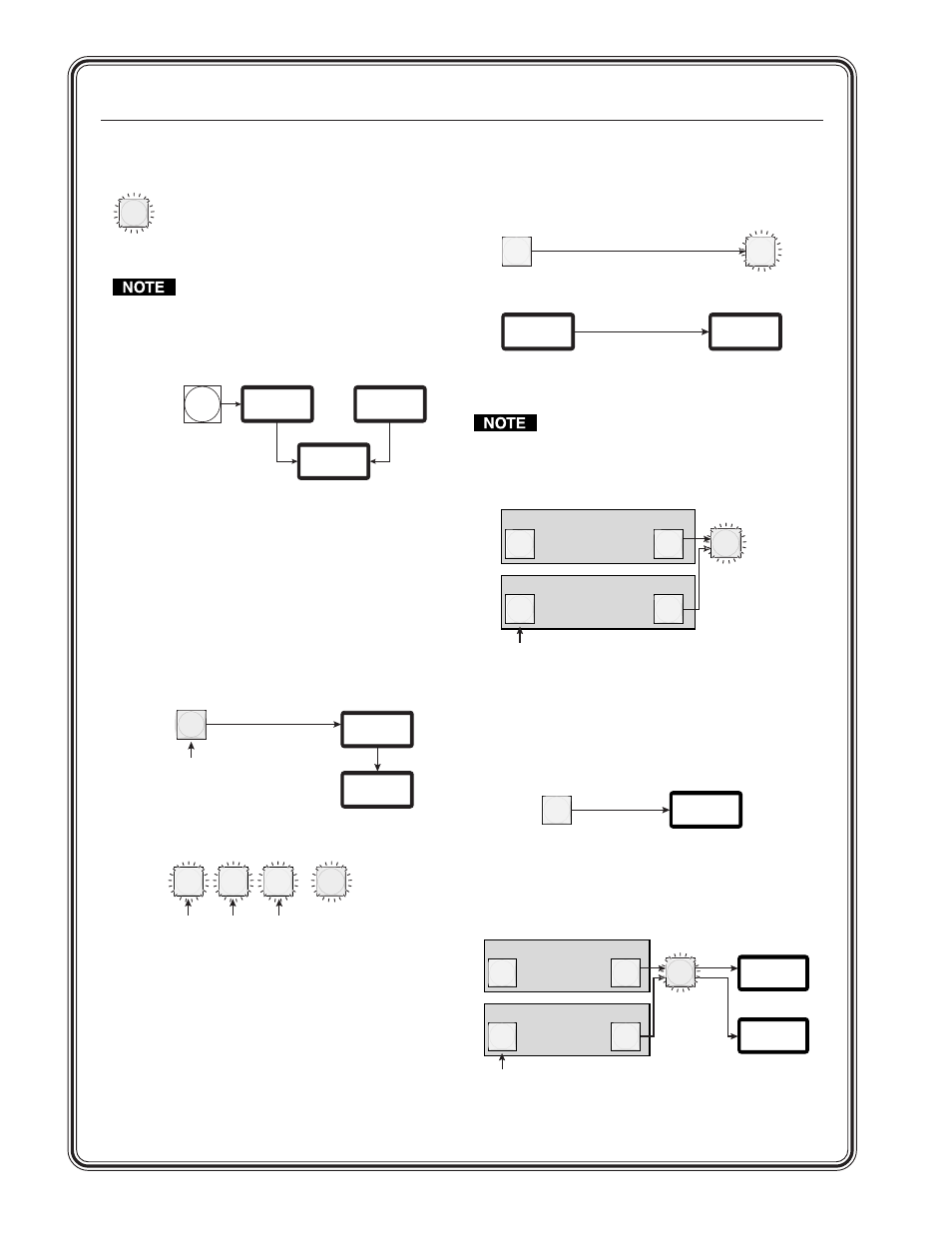

Quick Start — Digital XPoint Matrix Switchers, cont’d
Digital XPoint Matrix Switchers • Quick Start
QS-2
Quick Start button key
Toggle switch modes
The switch mode is for ties only and has no
effect on saving and recalling presets.
Toggle between the two switch modes, enter and
quick switch, by pressing and holding the Enter
button for approximately 2 seconds.
In enter switch mode, changes do not take effect
until you press Enter. In quick switch mode,
changes take place as you select them, without
pressing Enter.
To check the current switch mode, press and release
an output button. In enter switch mode, output
buttons light green when selected. In quick switch
mode, the output buttons light red.
Create a tie in enter switch mode
1
. Press and release the desired input button.
2
. Press and release the desired output button(s).
3
. Press and release the Enter button.
Press and
hold for 2
seconds.
ENTER
Mo d e
E n t e r
D X P 8 8
E X T RON
Sw i t c h
Qu i c k
— or —
8 Second Timeout
5
INPUTS
OUTPUTS
I n p u t # 5
_ _ _ _ _ _ _ _
1 2 3 4 5 6 7 8
Press the input button.
The button lights green.
1 Second
Press the output buttons.
The buttons blink green.
The Enter button
blinks green.
3
4
8
ENTER
Save a preset
1
. Press and hold the Preset button until the
button begins to blink.
2
. Press and release the input or output button
associated with the desired preset number.
DXP 88 SDI
: The buttons select preset 1
through 16, in order.
DXP 44 SDI:
The buttons select preset 1
through 8, in order.
3
. Press and release the Enter button.
Viewing or recalling a preset
1
. (DXP 44 SDI shown.) Press and release the
Preset button.
2
. Press and release the input or output button
associated with the desired preset number.
3
. To recall the preset, press and release the Enter
button.
P r e s e t
S a v e
1 2 3
5 6
4
7 8
Press and hold the Preset button until it blinks.
Outputs displayed until the DXP enters save preset mode.
2 Seconds
PRESET
PRESET
= Blinking button
Press and release an input or output button.
The button lights red.
The Enter button
blinks red.
1
4
ENTER
INPUT
— THRU —
1
INPUT
Preset 1
OUTPUT
— THRU —
DXP 88 SDI
DXP 44 SDI
Preset 1
Preset 16
Preset 8
OUTPUT
8
1 2 3 4
The LCD displays
the outputs.
PRESET
INPUTS
OUTPUTS
Press the
Preset button.
The LCD shows the
tie's configuration.
_
_ 5
5
1 2 3
Press and release an input or output button.
The button lights red.
The Enter
button blinks
red.
1
4
_
_ 5
5
_ _ _ 5
1 2 3
5 6
4
7 8
ENTER
INPUT
— THRU —
1
INPUT
Preset 1
OUTPUT
— THRU —
DXP 88 SDI
DXP 44 SDI
Preset 1
Preset 16
Preset 8
OUTPUT
8
