29 – IRIS 150 V1.11 User Guide
iQuest (NZ) Ltd - PO Box 15169, Hamilton, New Zealand Tel: +64 7 857-0810 Fax: +64 7 857-0811 Email: [email protected] 29
1 - Reverse
2 + Reverse
3 - Pulse
4 + Pulse
5 - Power
6 +Power

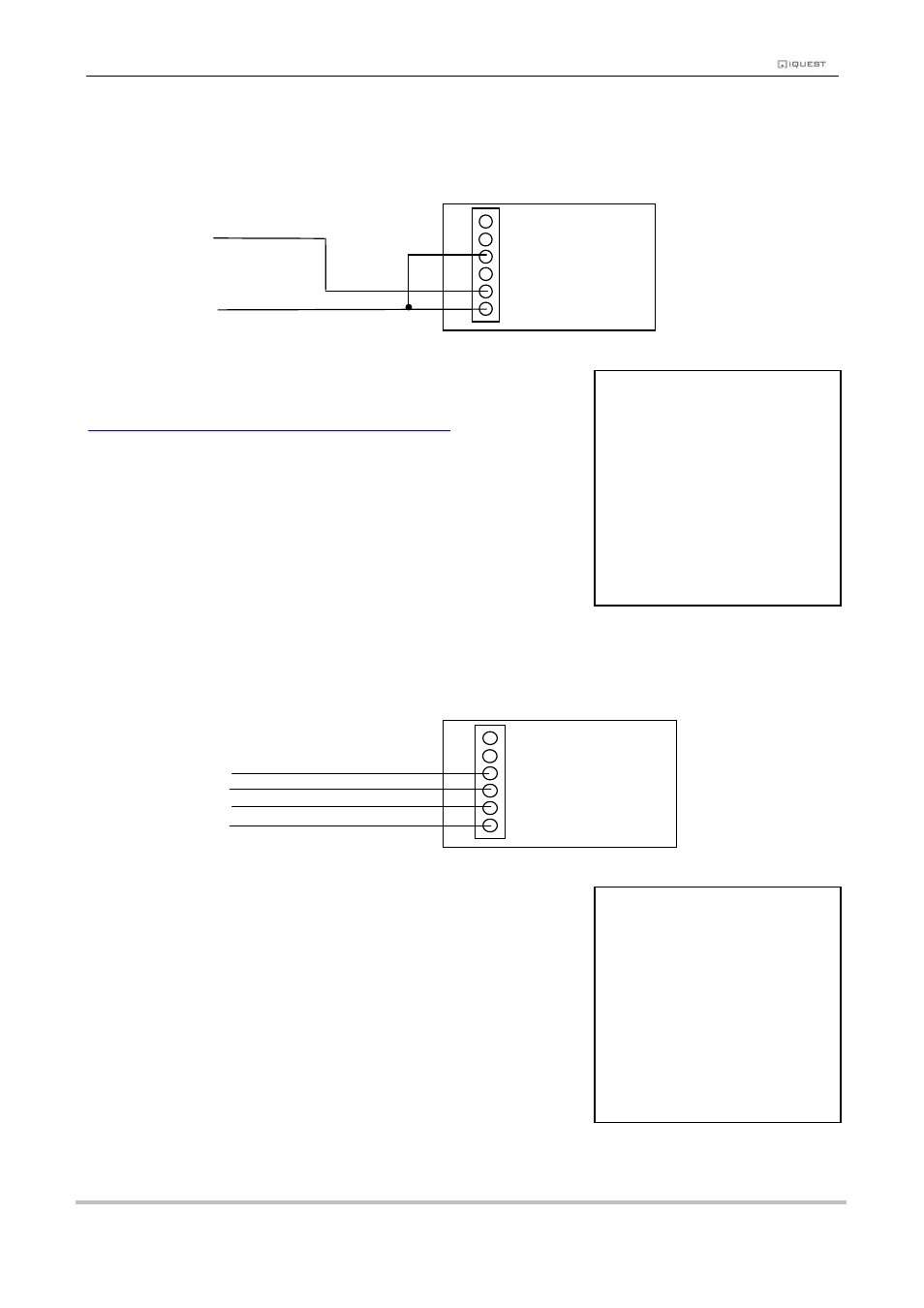

7.1.1 Connecting a Burkert 8045 Flow Meter
Configure the 8045 pulse value to suit. Please refer to Section 4.4.5 in
the 8045 instruction manual available on the Burkert website.
http://www.burkert.com/COM/search.php?type=8045
The example configuration shown assumes the flow meter has been
configured for one pulse = 100 litres. The basic unit of measurement is
a cubic metre so each pulse is 0.1m
3
, hence the multiplier of 0.1. The
log multiplier of 10 logs the data to 1 significant place.
The logging is configured for timed event mode with an interval of 15
minutes.
7.1.2 Connecting a Seametrics EX Flow Meter
The example configuration shown uses a multiplier of 0.3528
(reciprocal of K-factor of 2.834). The log multiplier of 10 logs the flow
data to 1 significant place.
The logging is configured for average mode and accrued volume (total
in cubic metres) with an interval of 15 minutes.
1 4..20
2 V+
3 V-
4 PE
5 Pls+
6 Pls-
Burkert 8045 Flow Meter
DI1
GND
* Sensor 1 Cfg
(Now: 0.0)
0 Exit
1 Source [5: Pulse1]
2 Name [Pump Vol]
3 Mode [Event]
4 Multiplier [ 0.1]
5 Offset [ 0.0000]
6 Log Multiplier [10]
7 Log Rate [15min]
8 Alarms
9 Data
Seametrics EX Flow Meter
GND
DI1
GND
+ Supply
* Sensor 1 Cfg
(Now: 93.7)
0 Exit
1 Source [7: Freq1]
2 Name [Flow Rate]
3 Mode [Avg+Total]
4 Multiplier [ 0.3528]
5 Offset [ 0.0000]
6 Log Multiplier [10]
7 Log Rate [15min]
8 Alarms
9 Data
