YSI 556 MPS - Manual (Page 134)

Appendix H Calibration Record Information
YSI 556 MPS YSI Incorporated Page 128

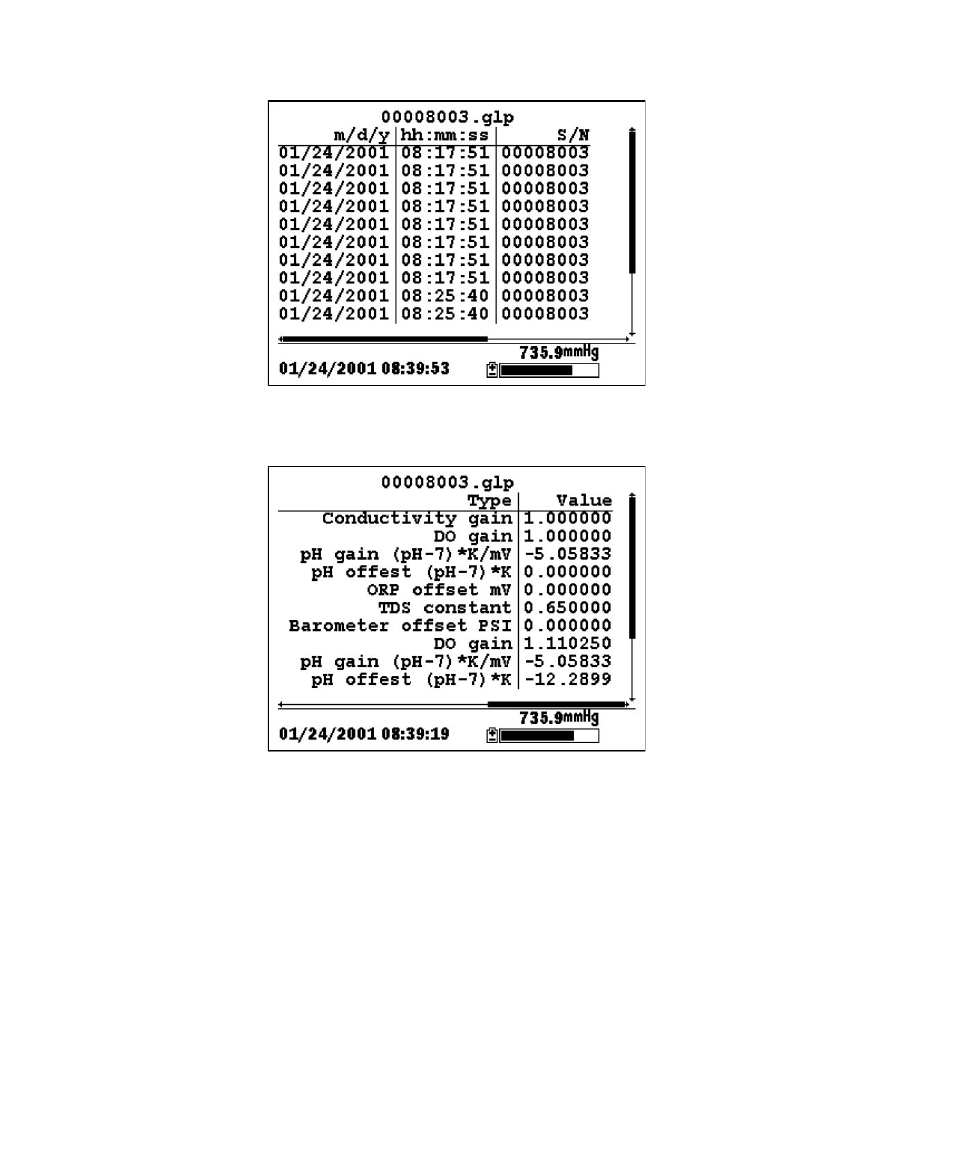

Figure 21.1Calibration Record Screen 1
Figure 21.2 Calibration Record Screen 2
NOTE: Each sensor (not parameter) is characterized by either 1 line
(Conductivity, Dissolved Oxygen, ORP, TDS, or Barometer (Optional)) or 2
lines (pH) of calibration documentation.
The left hand portion of each calibration entry shows the date and time that
a calibration of a particular sensor was performed. In addition, each
calibration entry is characterized by the instrument serial number, as defined
by YSI. See Figure 21.1 Calibration Record Screen 1
. The right hand
portion shows the YSI designation of the calibration constants and their
values after their calibration has been performed. A more detailed
description of the calibration constants is provided below:
