Xylem Fire diesel pump D Series GEN D Series User Manual
Page 40
40
Check the electrical connections and charge of the batteries.
Lift the set carefully, being careful to avoid knocks and falls. The eye bolts on the engine and
pump are not designed for lifting the entire set.
Position the set on a level surface and be careful not to create any mechanical stresses.
Provide adequate clearance for access to the set, for maintenance and escape purposes.
INDOOR INSTALLATION
For correct installation of the set in an enclosed area the following conditions must be
provided:
The dimensions of the room must enable the smooth operation of the unit and easy
operativeness with respect to the normal maintenance operations and any repairs that may
be required.

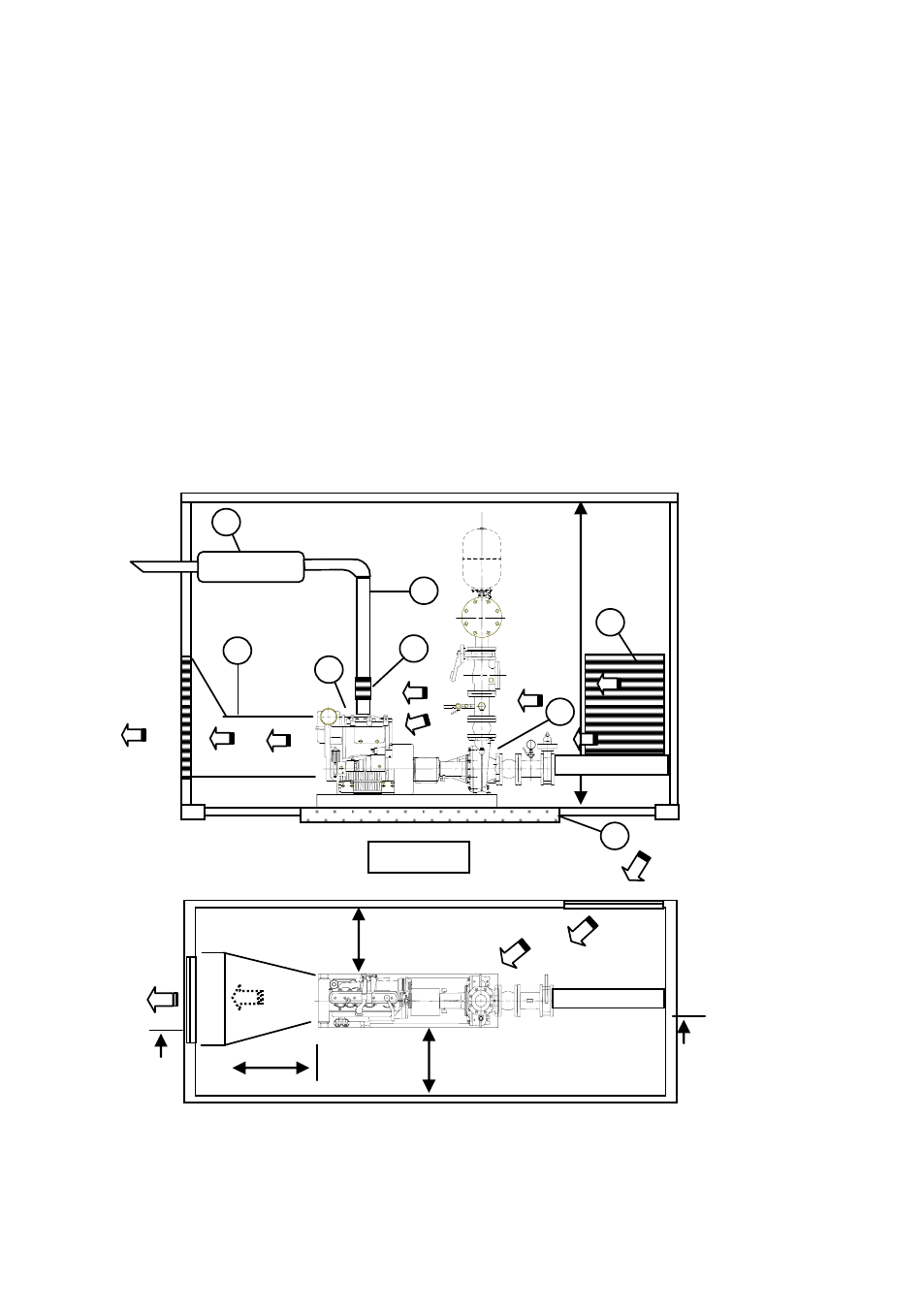

provides an example for engines with radiator, and shows the minimum dimensions
recommended for clearance around the set and the height of the room.
(1) Engine (2) Hydraulics (3) Foundation (4) Air exhaust conveyor
(5) Air inlet grille (6) Exhaust gas silencer (7) Exhaust gas pipe
(8) Expansion coupling
A
G
D_
M
00
31
_A
_SC.x
ls
> 6
00
> 6
00
> 500
Plan
Figure. 1
3000
AIR O
U
TL
ET
AIR I
NLET
SECTION A - A
1
2
3
4
5
6
7
8
