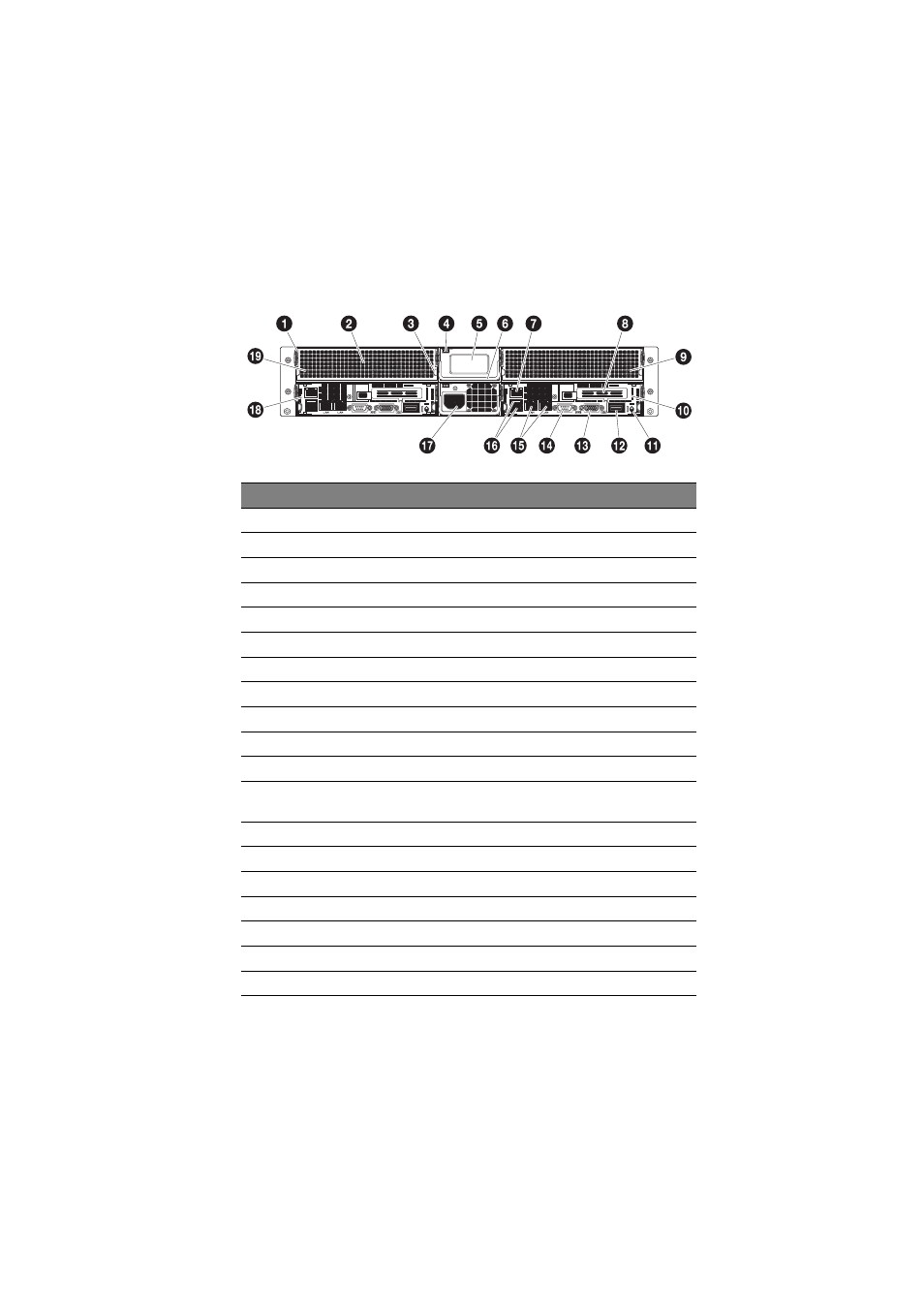

Rear panel
No.
Component
1
Server node module handle
2
Server node D
3
Server node release tab
4
Power supply module release latch
5
Dummy power supply module
6
Power supply module handle
7
Server management port (RJ-45) (10/100 Mbps)
8
PCI expansion slot
9
Server node B
10
Server node A
11
System ID switch
12
InfiniBand port QSFP connector (only available for AW170hd F1
and AW170hq F1)
13
Monitor port
14
Serial port (COM 1)
15
Gigabit LAN ports (10/100/1000 Mbps)
16
USB 2.0 ports
17
Power socket
18
Server node C
19
Server node D
