ZXBM1021

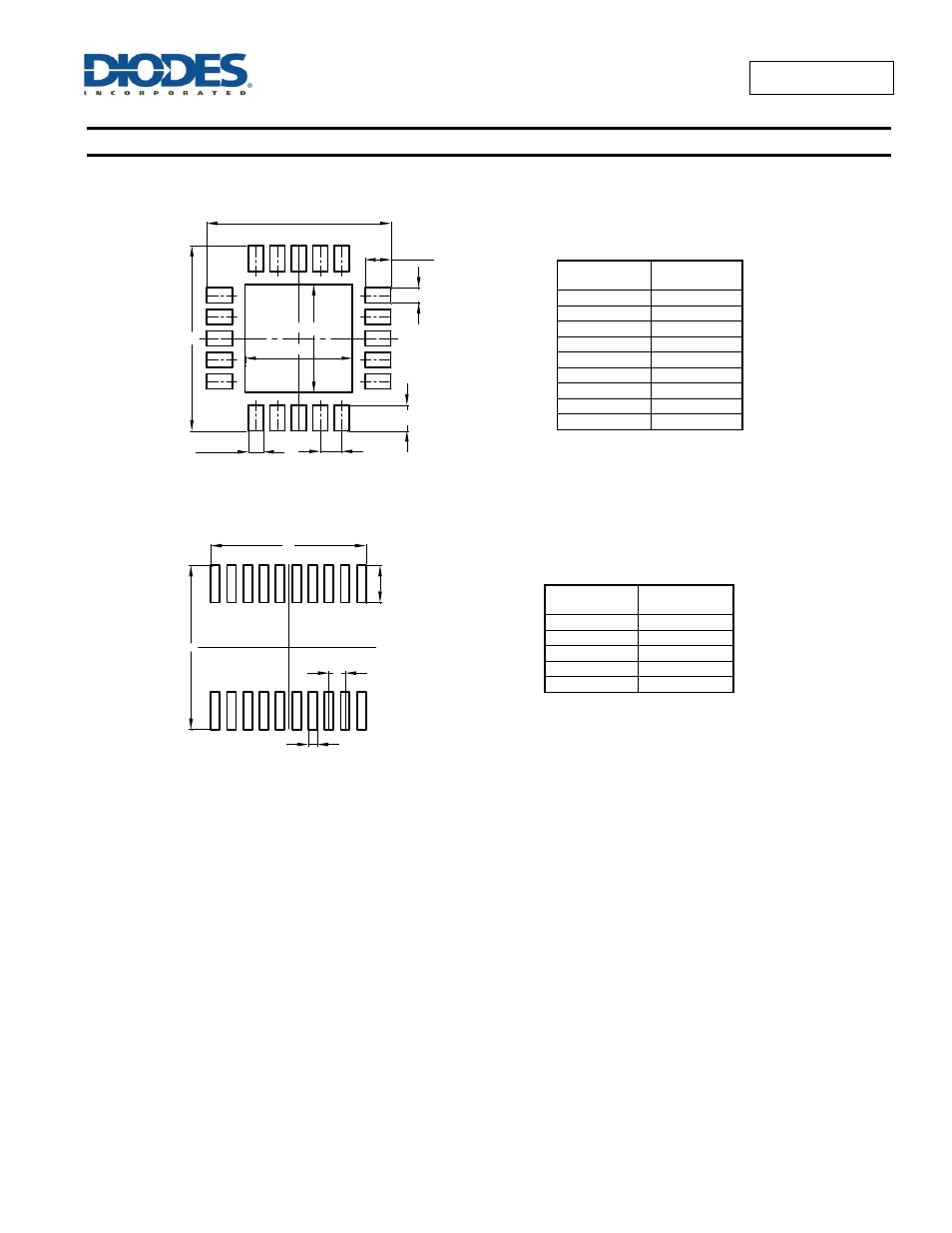

Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) Package Type: U-QFN4040-20
(2) Package Type: QSOP-20
Dimensions
Value
(in mm)
C 0.500
X 0.350
X1 0.600
X2 2.500
X3 4.300
Y 0.600
Y1 0.350
Y2 2.500
Y3 4.300
Dimensions
Value
(in mm)
C 0.635
X 0.350
X1 6.065
Y 1.450
Y1 6.400
1
Y3
X3
Y1(10x)
X1(10x)
Y2
X2
X(10x) C
Y(10x)
1
Y1
X1
Y 20x
C
X 20x
