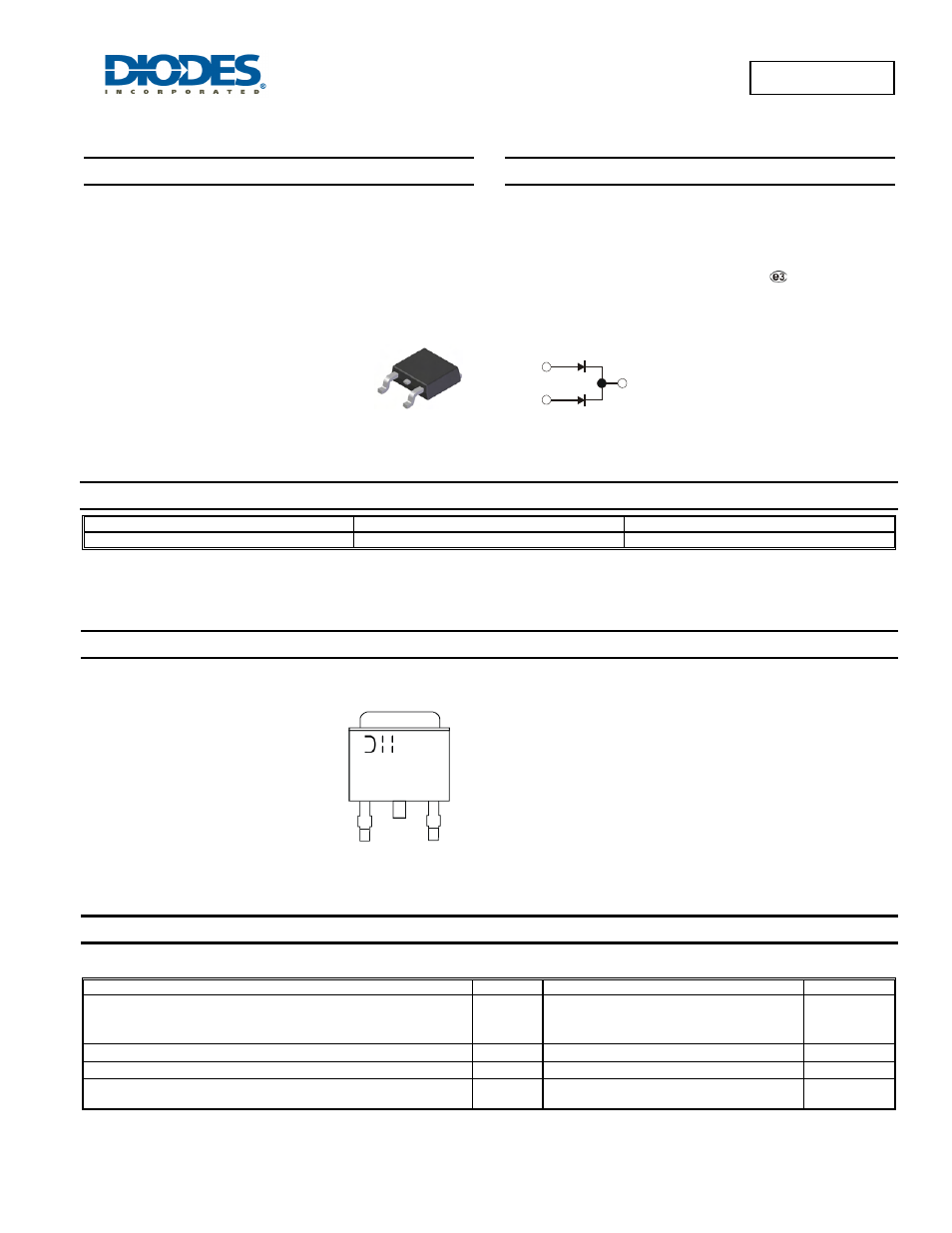

Diodes SBR1045CTL User Manual
Sbr1045ctl, Features, Mechanical data
SBR1045CTL
Document number: DS31111 Rev. 6 - 2
1 of 4
April 2011
© Diodes Incorporated
SBR1045CTL
SBR is a registered trademark of Diodes Incorporated.
10A SBR
®
SUPER BARRIER RECTIFIER
Features
•
Excellent High Temperature Stability
•
Patented Super Barrier Rectifier Technology
•
Soft, Fast Switching Capability
•
Lead Free Finish, RoHS Compliant (Note 1)
•
“Green” Molding Compound (No Br, Sb)
Mechanical Data
•
Case: TO252 (DPAK)
•
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.34 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
SBR1045CTL-13
TO252 (DPAK)
2500 pieces/reel
Notes:
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes
2. For packaging details, go to our website at
Marking Information
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol
Value
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
RM
45 V
RMS Reverse Voltage
V
R(RMS)
31 V
Average Rectified Output Current @T
C
= 110ºC
I
O
10 A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I
FSM
90 A
Top View
Polarity
2
1
3
SBR1045CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 07 = 2007)
WW = Week (01 - 53)
YYWW AB
1045CT
SBR
