A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 A S U S A P 2 4 0 0 R - E 2 4 - 7 4 - 7 4 - 7 4 - 7 4 - 7
6 . 6 . 6 . 6 . 6 . G i g a b i t L A N 1 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 1 _ E N 1 ) G i g a b i t L A N 1 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 1 _ E N 1 ) G i g a b i t L A N 1 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 1 _ E N 1 ) G i g a b i t L A N 1 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 1 _ E N 1 ) G i g a b i t L A N 1 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 1 _ E N 1 )
This jumper allows you to enable or disable the onboard Broadcom ®
BCM5721 Gigabit LAN1 controller. Set to pins 1-2 to activate the
Gigabit LAN feature.
7 . 7 . 7 . 7 . 7 . G i g a b i t L A N 2 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 2 _ E N 1 ) G i g a b i t L A N 2 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 2 _ E N 1 ) G i g a b i t L A N 2 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 2 _ E N 1 ) G i g a b i t L A N 2 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 2 _ E N 1 ) G i g a b i t L A N 2 c o n t r o l l e r s e t t i n g ( 3 - p i n L A N 2 _ E N 1 )
These jumpers allow you to enable or disable the onboard Broadcom
®
BCM5721 Gigabit LAN2 controller. Set to pins 1-2 to activate the
Gigabit LAN feature.
®

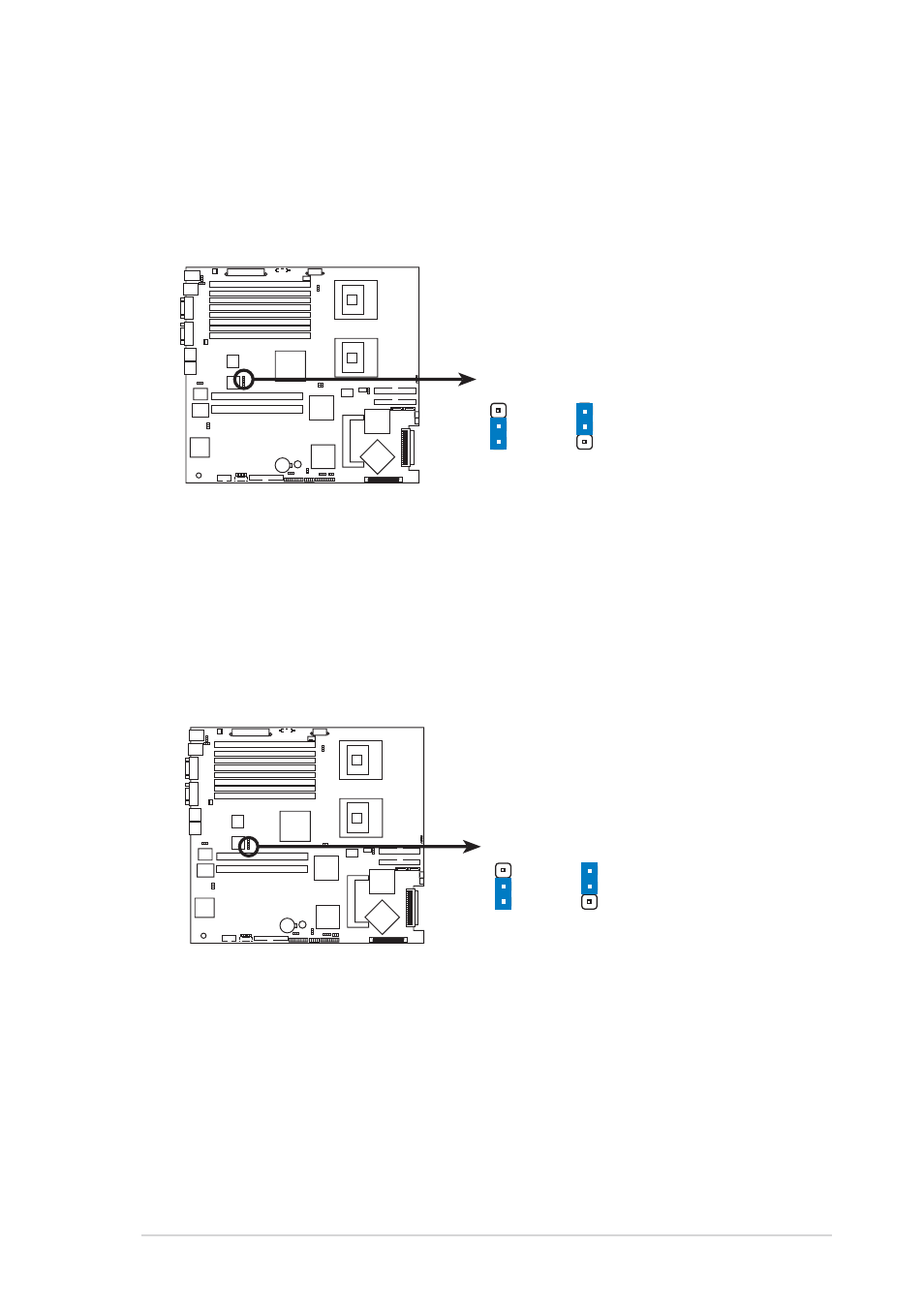

NCL-DS1R2
NCL-DS1R2 LAN1_EN setting
LAN1_EN1
Enable
(Default) Disable
3
2
2
1
®
NCL-DS1R2
NCL-DS1R2 LAN2_EN setting
LAN2_EN1
Enable
(Default) Disable
3
2
2
1
