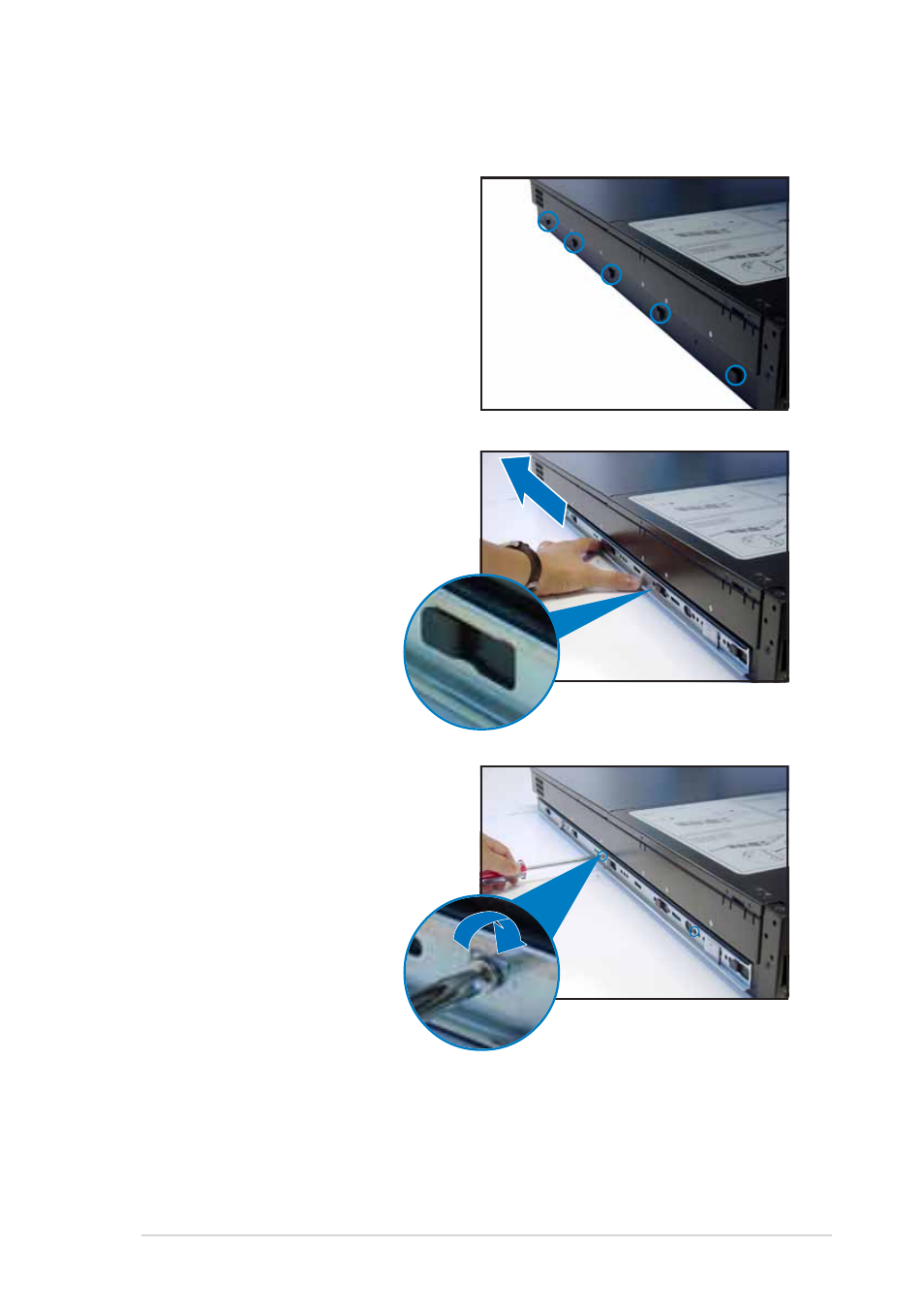

3.2 Attaching the rails to the server
To attach the server rails:
1. Locate the hooks on the side of
the chassis.
2. Position a server rail parallel to
the side of the chassis, and
match each of the five hooks to
the holes on the rail.
S i d e h o o k l o c k e d S i d e h o o k l o c k e d S i d e h o o k l o c k e d S i d e h o o k l o c k e d S i d e h o o k l o c k e d
t o r a i l h o l e
t o r a i l h o l e t o r a i l h o l e t o r a i l h o l e t o r a i l h o l e
3. Secure the server rail to the side
of the chassis with two screws.
4. Repeat steps 1 to 3 to attach the second server rail to the other side
of the chassis.
