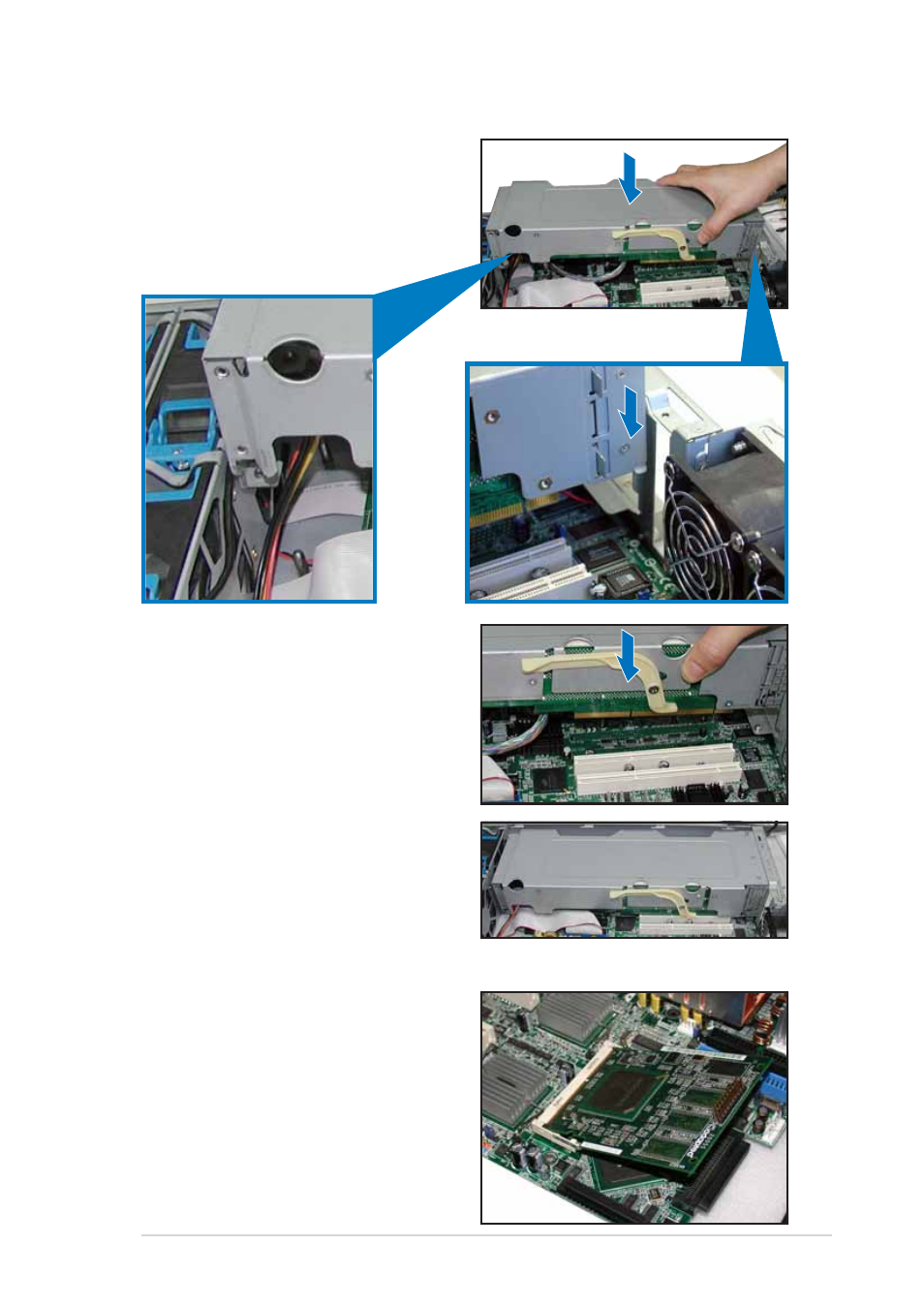

13. Match and push the cage card
connector into the PCI-X slot
(PCI-X2) until the PCI cage fits in
place.
14. Ensure that the PCI cage card
golden connectors completely fit
the slot.
If properly installed, the top of
the PCI cage aligns with the top
edge of the rear panel.
12. Position the PCI cage into the
bay making sure that the pegs
go into the holes on the front of
the cage, and the dents on the
rear part match those on the
chassis.
2.5.3 2.5.3 2.5.3 2.5.3 2.5.3 ZCR socket ZCR socket ZCR socket ZCR socket ZCR socket
The ZCR socket on the motherboard
supports the Adaptec AIC-2015
Zero-Channel RAID card that allows
RAID 0, RAID 1, RAID 10, RAID 5,
RAID 50, and JBOD configurations.
