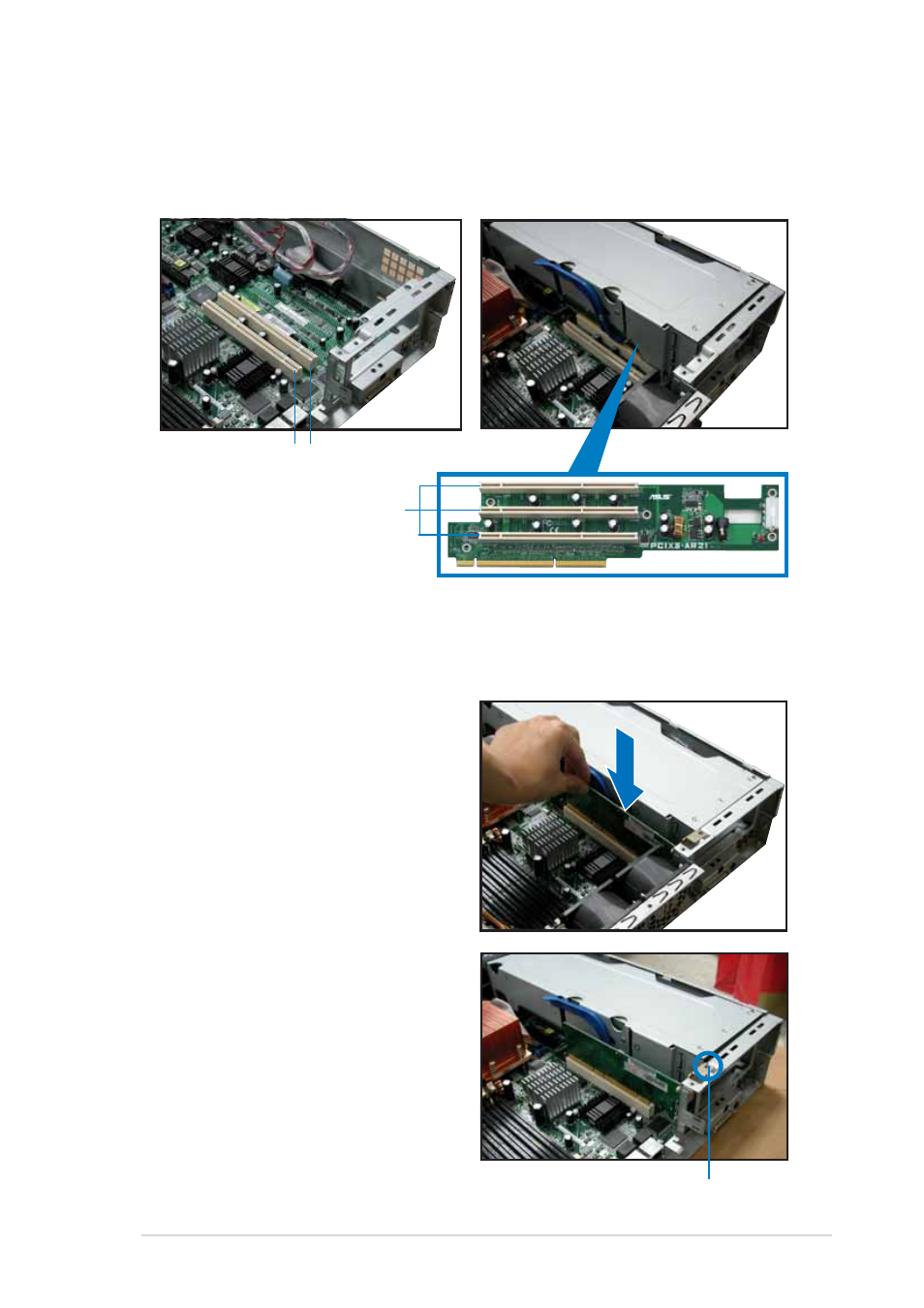

2.5 Expansion cards
The system motherboard comes with two PCI-X expansion slots, one slot is
installed with the PCI cage to support three full-length expansion cards. A
ZCR slot is also available for installation of a Zero Channel RAID card.
2.5.1 2.5.1 2.5.1 2.5.1 2.5.1 Installing a low-profile expansion card Installing a low-profile expansion card Installing a low-profile expansion card Installing a low-profile expansion card Installing a low-profile expansion card
To install a low-profile expansion card:
1. Firmly hold the card by the
edges and align the card
connector to the PCI-X slot.
2. Push the card connector into the
slot until it fits in place.
3. Secure the card bracket with a
screw.
C a r d s c r e w C a r d s c r e w C a r d s c r e w C a r d s c r e w C a r d s c r e w
P C I - X 1 P C I - X 1 P C I - X 1 P C I - X 1 P C I - X 1
P C I - X s l o t s i n s i d e t h e P C I c a g e P C I - X s l o t s i n s i d e t h e P C I c a g e P C I - X s l o t s i n s i d e t h e P C I c a g e P C I - X s l o t s i n s i d e t h e P C I c a g e P C I - X s l o t s i n s i d e t h e P C I c a g e
P C I - X 2 P C I - X 2 P C I - X 2 P C I - X 2 P C I - X 2
