C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p C h a p t e r 2 : H a r d w a r e s e t u p 2 - 1 2 2 - 1 2 2 - 1 2 2 - 1 2 2 - 1 2
2. Hold down the heatsink lightly
and twist each of the four
screws with a Philips (cross)
screwdriver just enough to
attach the heatsink to the
motherboard. When the four
screws are attached, tighten
them one by one to completely
secure the heatsink.
2.2.3 2.2.3 2.2.3 2.2.3 2.2.3 Installing the CPU heatsink Installing the CPU heatsink Installing the CPU heatsink Installing the CPU heatsink Installing the CPU heatsink

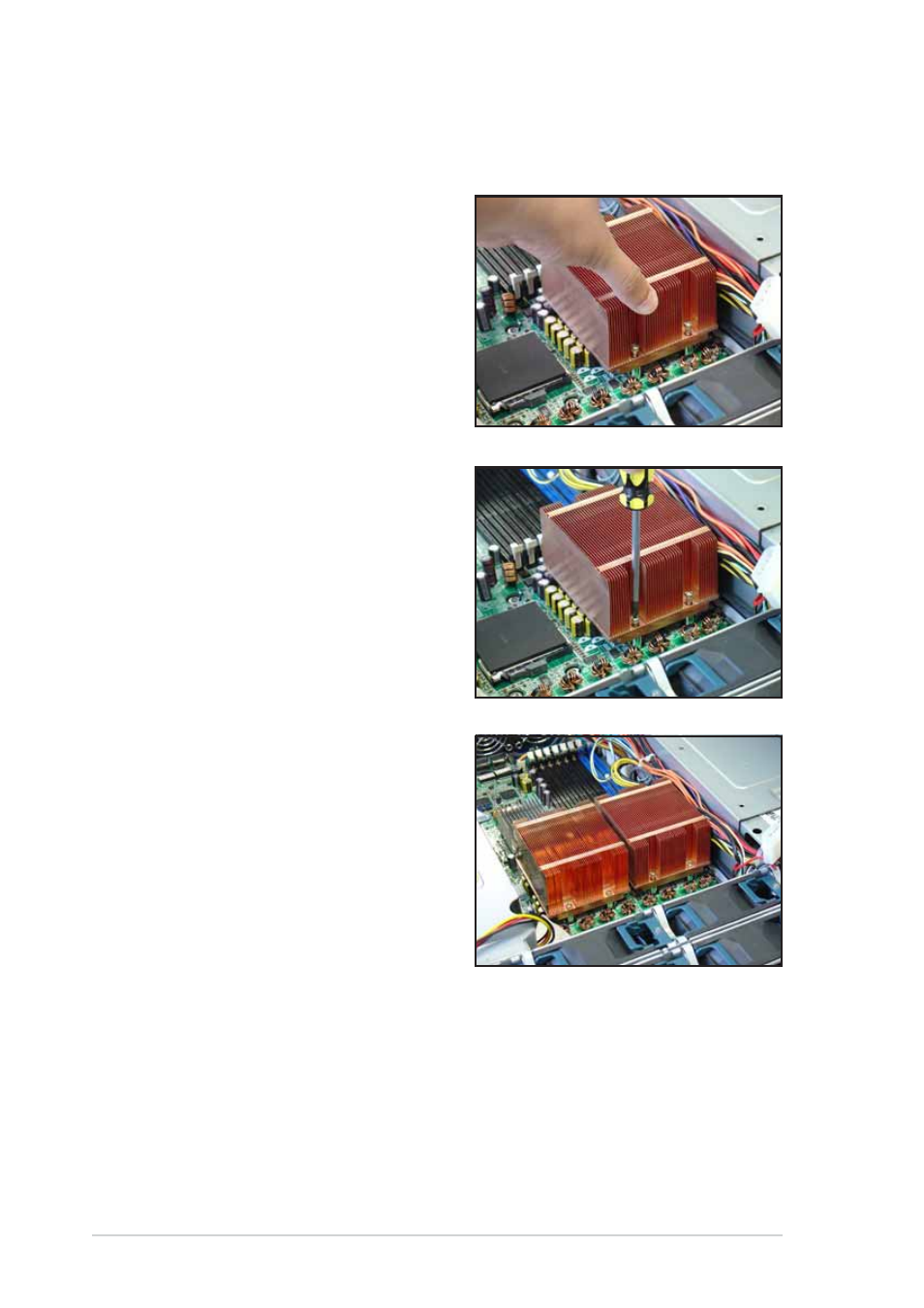

To install the CPU heatsink:
1. Carefully place the heatsink on
top of the installed CPU (CPU1).
3. If you installed a second CPU,
follow steps 1 and 2 to install
the second CPU heatsink.
